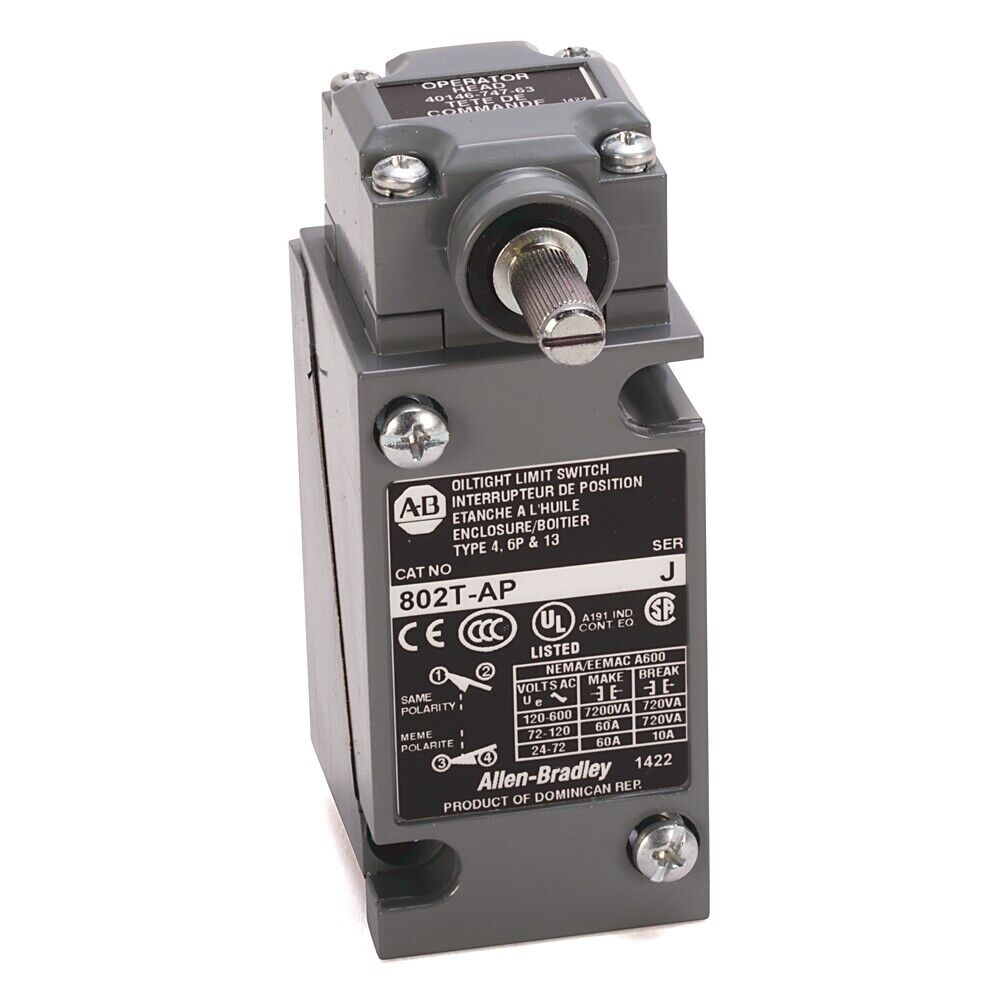

  • Allen-Bradley 802T-AP Metal Plug-In Oiltight Limit Switch, Adjustable Plunger Actuator, NEMA 4/13

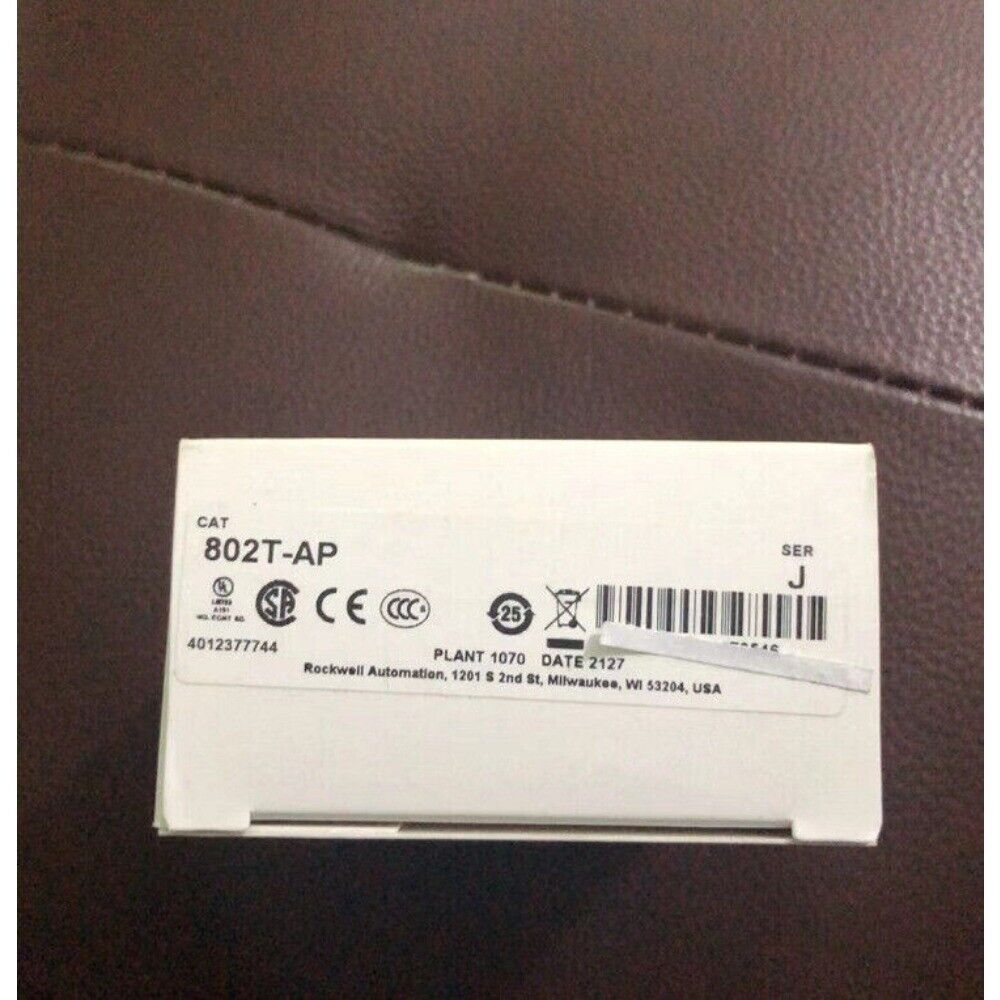

  • Allen-Bradley 802T-AP Limit Switch Packaging. Includes product details, certifications, and serial information.
  • Warehouse storage of Allen-Bradley 802T-AP limit switches, brown cardboard boxes stacked on metal shelving, industrial parts.
  • Automation hardware sale! Great discount with gifts, cart, and clock. Get 10% off or more!
Allen-Bradley | 802T-AP| 802T

Allen-Bradley | 802T-AP| 802T

Request a Quote

Fill in the form and we will contact you shortly.

Product Description: Allen-Bradley 802T-AP

The Allen-Bradley 802T-AP is a standard-duty limit switch from the 802T series, equipped with an adjustable plunger actuator. This limit switch is designed for rugged industrial applications, providing reliable position sensing in a compact, modular body. Its adjustable plunger allows for precise mechanical operation in applications where consistent and repeatable actuation is required. The 802T-AP is UL and CSA listed, making it suitable for a wide range of automation systems.

Key Features

  • Plunger-type actuator with adjustable operating point
  • 1 N.O. and 1 N.C. snap-action contacts
  • NEMA Type 4, 13, and IP66-rated enclosure
  • Heavy-duty zinc die-cast housing with modular design
  • Side rotary, top plunger, and other actuator options available in the same series
  • Conforms to global standards (UL, CSA, CE)
  • Mechanical life rated for millions of operations
  • Screw terminal connections for secure wiring
  • Suitable for mounting in tight spaces

Technical Specifications

  • Actuator Type: Adjustable top plunger
  • Contact Configuration: 1 N.O. + 1 N.C. (snap action)
  • Electrical Rating: 600V AC max, 10 A continuous
  • Operating Force: Approx. 2.5 lb (11.1 N)
  • Mechanical Life: Up to 10 million operations
  • Enclosure Material: Zinc alloy die-cast
  • Enclosure Protection: NEMA 1, 4, 12, 13 / IP66
  • Ambient Operating Temperature: -18°C to +93°C
  • Mounting Type: Panel or surface mount
  • Terminal Type: Screw terminals
  • Certifications: UL Listed, CSA Certified, CE Marked

Application Areas

  • Conveyor systems and transfer lines
  • Elevator and hoist position feedback
  • Packaging and labeling machinery
  • Assembly stations and robotics
  • Industrial safety interlocks
  • General machinery position sensing

Advantages

  • Adjustable actuator allows for fine-tuned position detection
  • High durability for long service life in tough environments
  • Modular design simplifies maintenance and replacement
  • Reliable electrical performance in a compact footprint
  • Globally certified for broad industrial use
