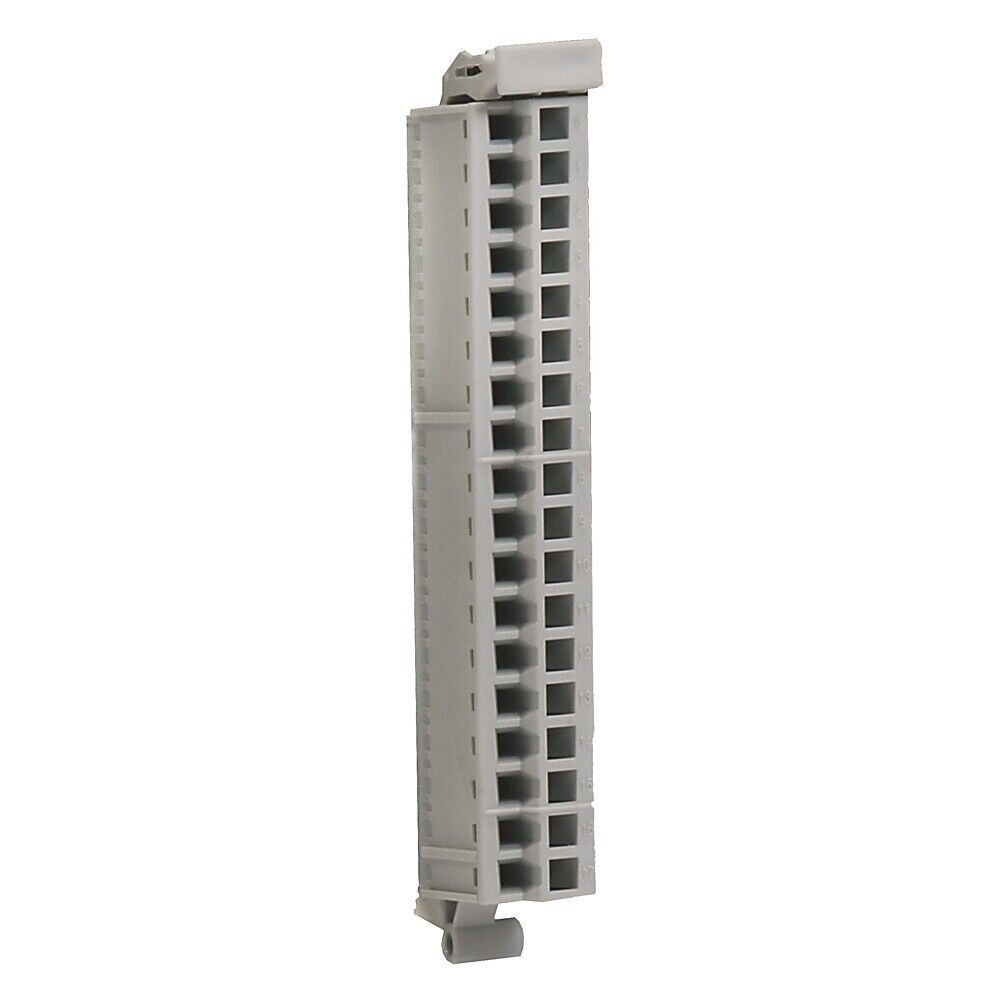

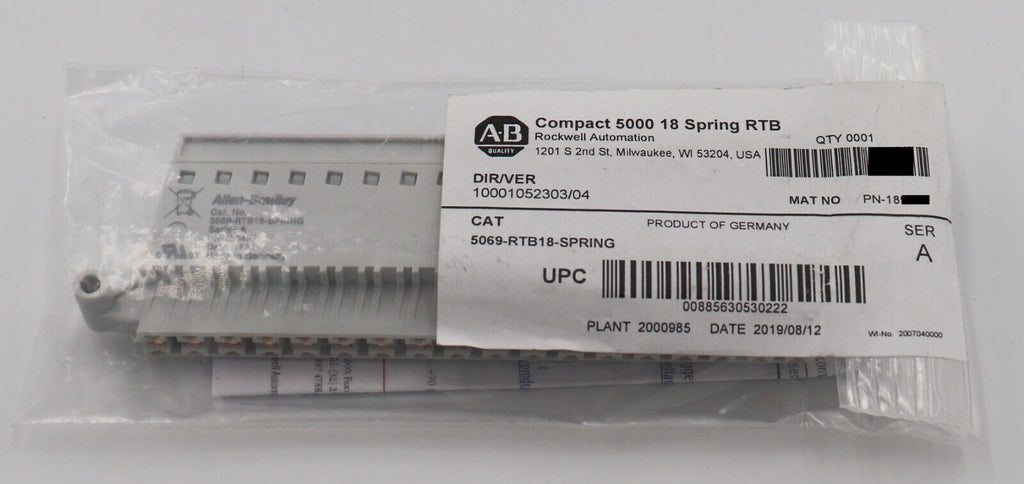

Product Description: Allen-Bradley 5069-RTB18-SPRING
The Allen-Bradley 5069-RTB18-SPRING is an 18-point removable terminal block designed for use with Compact 5000 I/O modules. It uses spring clamp connection technology to provide secure, vibration- resistant, and maintenance- free field wiring. This terminal block enables easy and tool-free installation and removal, allowing quick I/O module replacement without disturbing existing field wiring.
Key Features
- 18-point terminal configuration
- Spring clamp terminals for tool-free and reliable wiring
- Designed for use with Compact 5000 I/O modules
- Facilitates quick installation and module changes
- Compatible with 22–16 AWG solid or stranded copper wire
- Compact and durable construction suitable for industrial use
Technical Specifications
- Maximum Voltage: 300V AC
- Maximum Current: 10 A
- Supported Wire Size: 0.5–1.5 mm² (22–16 AWG)
- Maximum Wire Insulation Diameter: 2.9 mm
- Insulation Strip Length: 10 mm
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H x W x D): 144.57 mm x 22 mm x 105.42 mm
- Weight: Approximately 175 g
Application Areas
- CompactLogix 5380 and Compact GuardLogix 5380 control systems
- Distributed I/O applications
- Panel-based automation equipment
- High-density signal interface scenarios
- Industrial systems requiring fast and safe wiring maintenance
Advantages
- Reduces downtime with fast module replacement
- Enhances safety with secure spring-loaded wiring
- Space- efficient for compact control panels
- Suitable for high-vibration and harsh environments
- No special tools required for wire installation or removal
