Allen-Bradley | 5069-OF8 | 5069 Compact I/O

Product Description: Allen-Bradley 5069-OF8

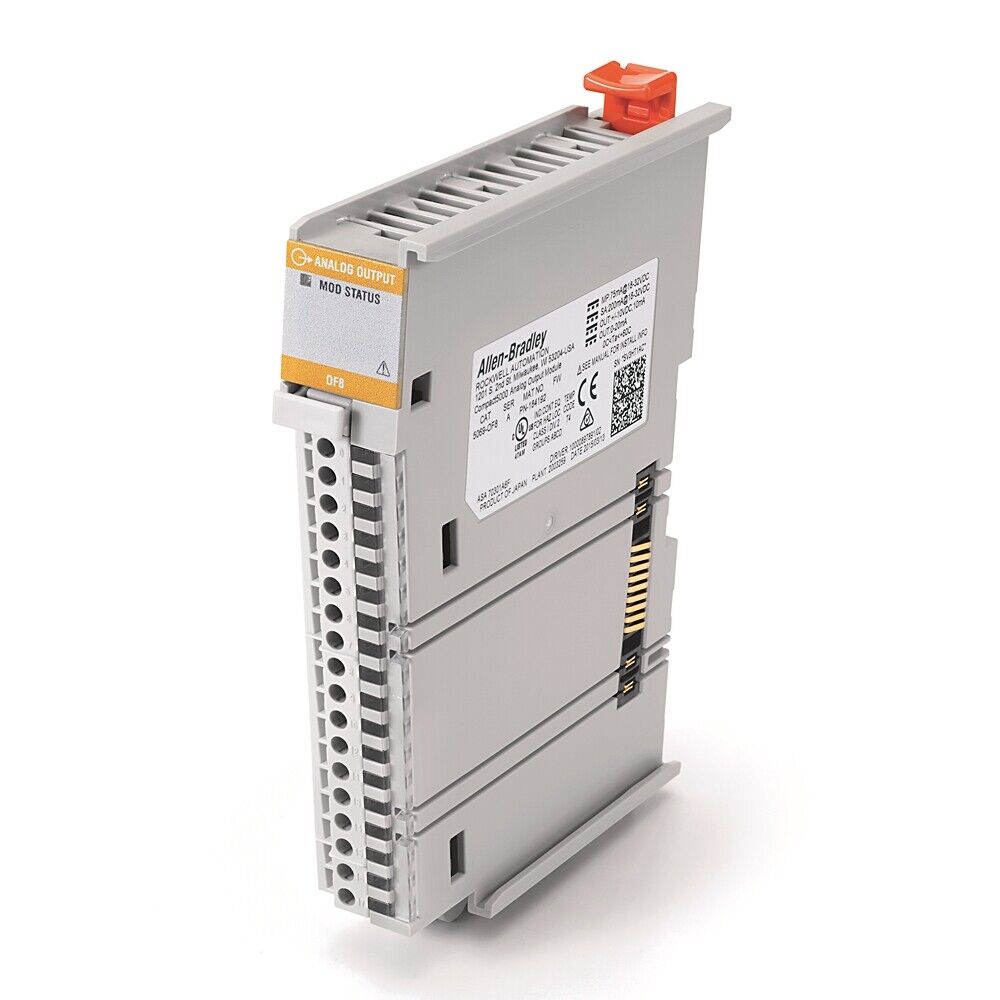

The Allen-Bradley 5069-OF8 is an 8-channel analog output module designed for precise control of voltage and current signals in automation systems. As part of the 5069 Compact I/O platform, it integrates seamlessly with CompactLogix 5380 and ControlLogix 5580 controllers, enabling high-speed communication and advanced diagnostics. Its flexible configuration supports both current and voltage output types, making it suitable for a wide range of process control applications.

Key Features

• 8 individually configurable analog output channels
• Supports voltage and current output modes
• High-resolution DAC for accurate signal control
• Built-in diagnostics for channel status and faults
• Removable terminal block simplifies installation
• Compatible with Studio 5000 Logix Designer for configuration
• Enhanced performance with 5069 architecture

Technical Specifications

• Output Channels: 8
• Output Types:
  • Voltage: ±10V, 0–10V
• Resolution: 15 bits plus sign
• Accuracy: ±0.1% of full scale
• Output Update Rate: <1 ms per channel
• Backplane Current (at 5V): 0.25 A
• Backplane Current (at 24V): 0.11 A
• Dimensions (HxWxD): Approx. 118 x 35 x 87 mm
• Operating Temperature: -20 to 60°C
• Isolation: Channel-to-backplane and channel-to-channel isolation

Application Areas

• Process control and instrumentation
• Analog actuator and valve control
• Temperature regulation systems
• Motion control and servo drive applications
• Energy management systems
• Chemical and pharmaceutical manufacturing

Advantages

• Flexible output configuration (current or voltage) per channel
• High accuracy and resolution ensure stable control
• Built-in diagnostics reduce troubleshooting time
• Compact size saves panel space
• Seamless integration with CompactLogix systems for high-speed control and scalability
