Allen-Bradley | 5069-OF4 | ControlLogix 5069 Compact I/O

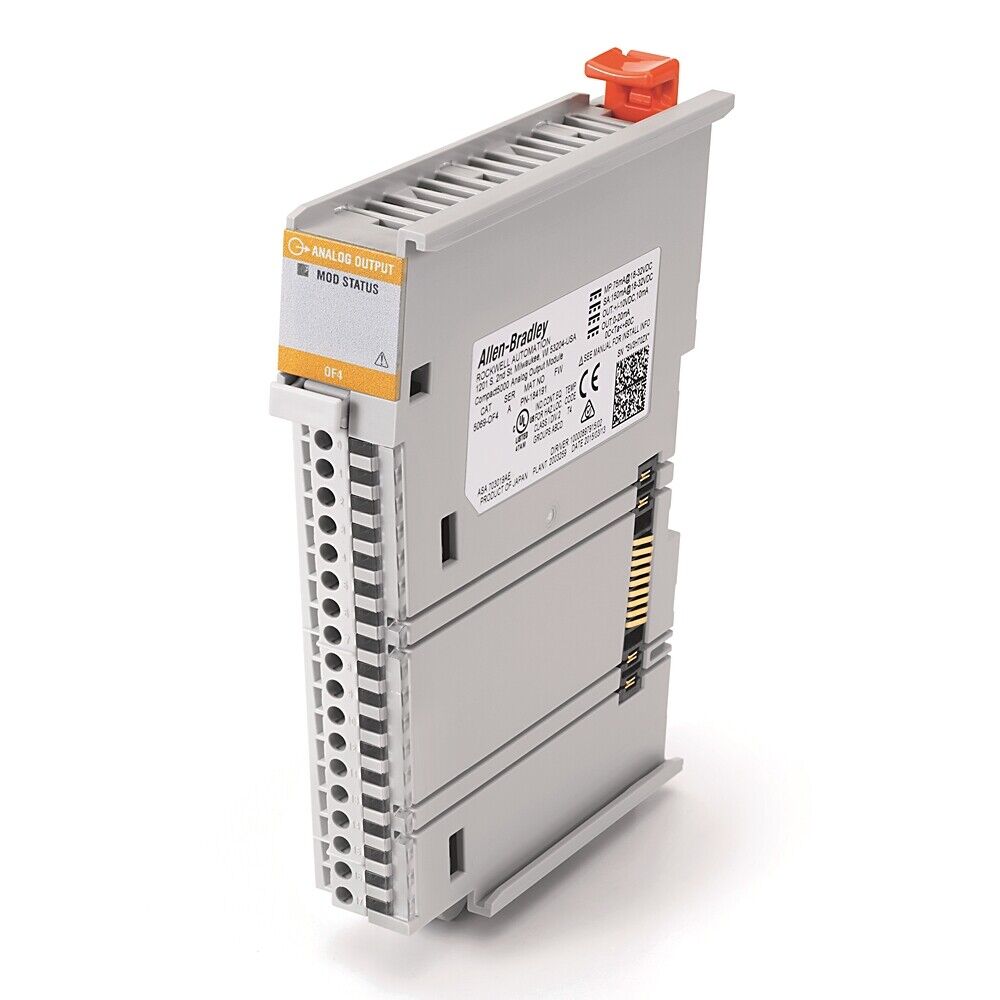

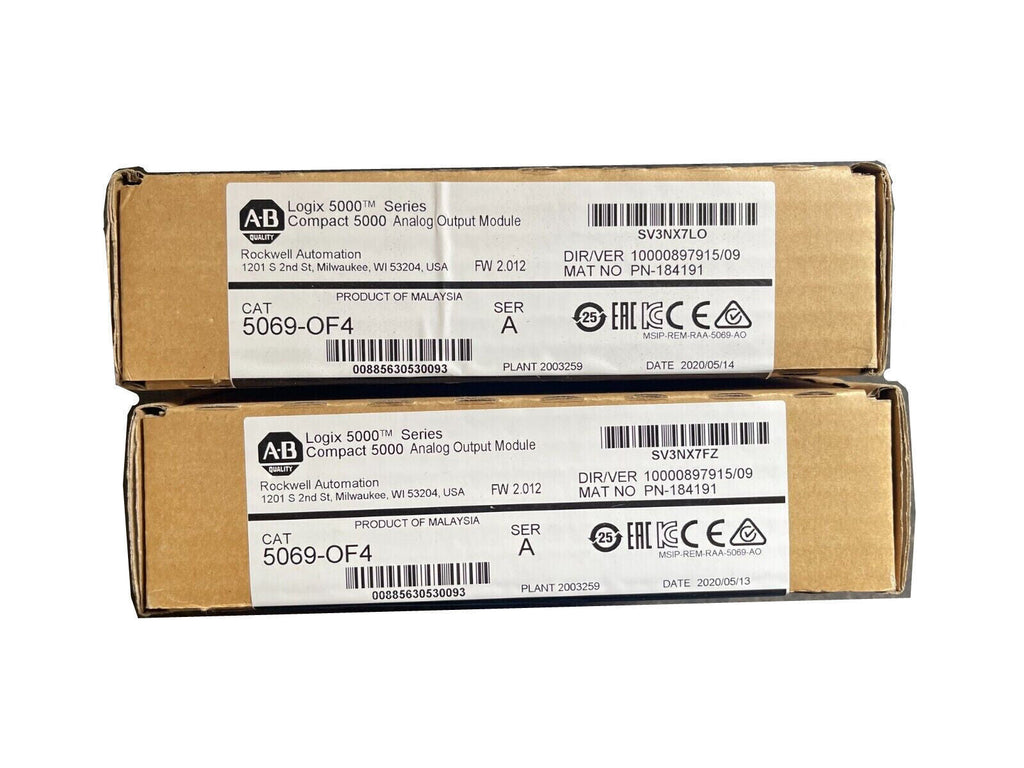

Product Description: Allen-Bradley 5069-OF4

The Allen-Bradley 5069-OF4 is a 4-channel analog output module within the ControlLogix 5069 Compact I/O family. Engineered for precision control, this module delivers both voltage and current outputs to manage field devices such as proportional valves, drives, and actuators. Its isolated channel design and high resolution ensure accurate, noise-immune performance in tight-space, distributed control applications.

Product Type

• Analog Output Module
• Series: ControlLogix 5069 Compact I/O
• Channels: 4 independent outputs
• Output Types: Configurable voltage (0–10 V) or current (0–20 mA / 4–20 mA)

Key Features

• 4 isolated analog output channels with individual channel-to-backplane isolation
• Configurable output ranges:
  • Voltage: 0–10 V DC
• 16-bit resolution for fine control accuracy
• High update rate to support dynamic process requirements
• Electronic keying prevents mismatched module insertion
• LED status indicators for each channel (Normal, Fault)
• DIN-rail mounting or chassis installation within 5069 Compact I/O racks
• Removable screw-clamp terminal block for secure, maintenance-friendly wiring
• Certifications: UL, CE, c-UL, RoHS

Technical Specifications

• Resolution: 16-bit (0.0015% of full scale)
• Accuracy: ±0.1% of full scale
• Output Compliance Voltage: 10 V DC max (voltage mode)
• Output Load Capability:
  • Voltage mode: up to 10 mA per channel
• Isolation Voltage: 250 Vrms channel-to-backplane
• Power Dissipation: < 2 W typical
• Operating Temperature: –20 °C to +60 °C
• Backplane Current Draw: ~150 mA @ 5 V DC
• Enclosure Rating: IP20 (module), IP40 (terminals)

Application Areas

• Process control loops requiring analog set-point outputs
• Proportional valve control in fluid handling systems
• Speed and torque commands for servo and drive systems
• Distributed I/O architectures in packaging, food & beverage, water treatment
• OEM machinery with mixed analog/digital I/O requirements

Advantages

• High-precision outputs minimize process variability
• Isolated channels ensure signal integrity in electrically noisy environments
• Modular form factor simplifies panel design and reduces wiring complexity
• Flexible output configuration supports a wide array of analog field devices
• Seamless integration with Logix-based controllers via 5069 Compact I/O chassis
