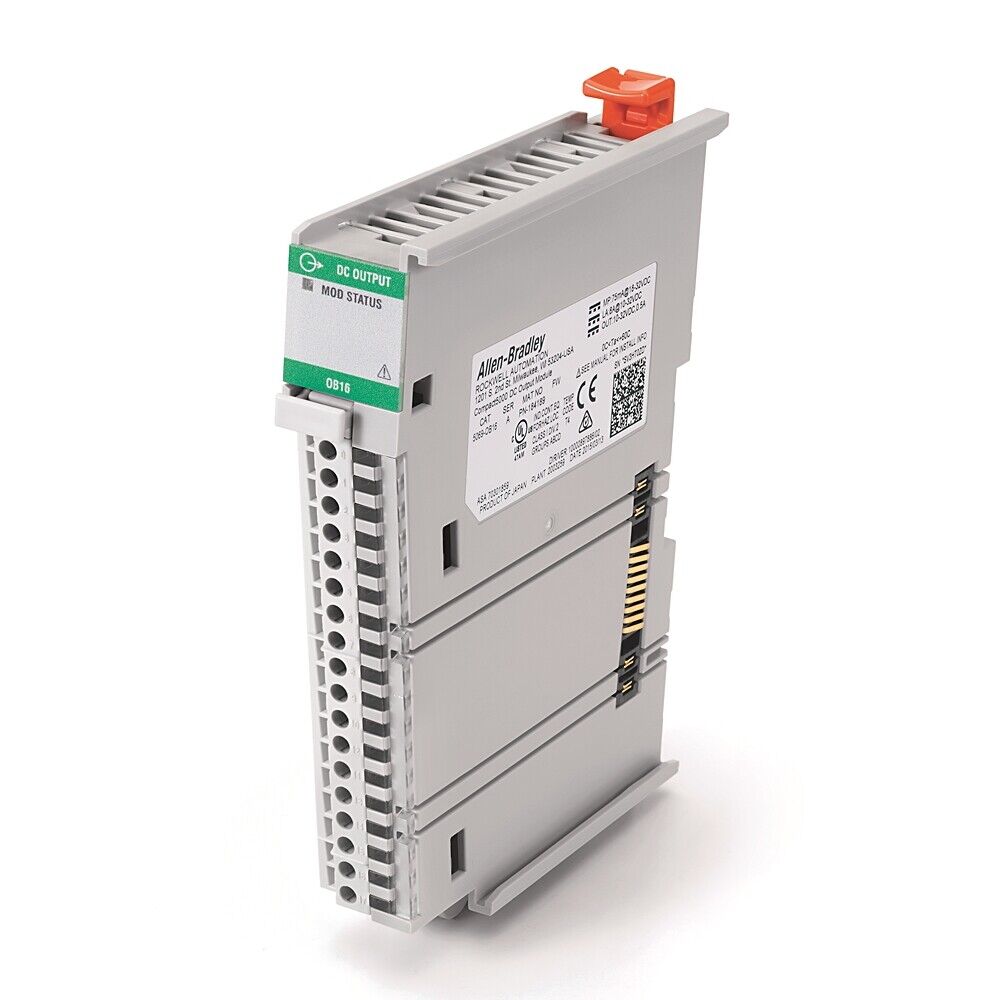

Product Description: Allen-Bradley 5069-OB16
The Allen-Bradley 5069-OB16 is a 16-channel digital output module designed for use with CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 controller systems. It provides 24V DC sourcing outputs and is suitable for applications requiring high-speed and reliable digital output control. The module supports advanced diagnostics and is ideal for integration into modern industrial automation systems.
Key Features
- 16 sourcing digital output channels
- Output voltage range: 10–32V DC
- Supports advanced diagnostics including open load detection and short-circuit protection
- Compact 22 mm width for high-density installations
- Compatible with CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 controllers
- DIN rail or panel mounting options
- Requires 5069-RTB18-SCREW or 5069-RTB18-SPRING removable terminal block (sold separately)
Technical Specifications
- Output Type: Sourcing digital outputs
- Number of Channels: 16
- Output Voltage Range: 10–32V DC
- Output Current per Channel: Up to 2.0 A
- Power Dissipation: 3.25 W
- Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Relative Humidity: 5% to 95% non- condensing
- Vibration: 5 g @ 10–500 Hz
- Shock: 30 g operational, 50 g non-operational
- Dimensions (H x W x D): 138 mm x 22 mm x 105 mm (5.4 in x 0.87 in x 4.2 in)
- Weight: Approximately 175 g (0.39 lb)
- Certifications: UL, CE, KC, MARINE, and others
Application Areas
- Industrial automation systems
- Machine control applications
- Process control systems
- Packaging and material handling equipment
- Safety-critical applications with diagnostic requirements
Advantages
- High-density output module saves panel space
- Advanced diagnostics enhance system reliability and maintenance
- Wide operating temperature range suitable for various environments
- Seamless integration with CompactLogix controller systems
- Modular design simplifies installation and maintenance
