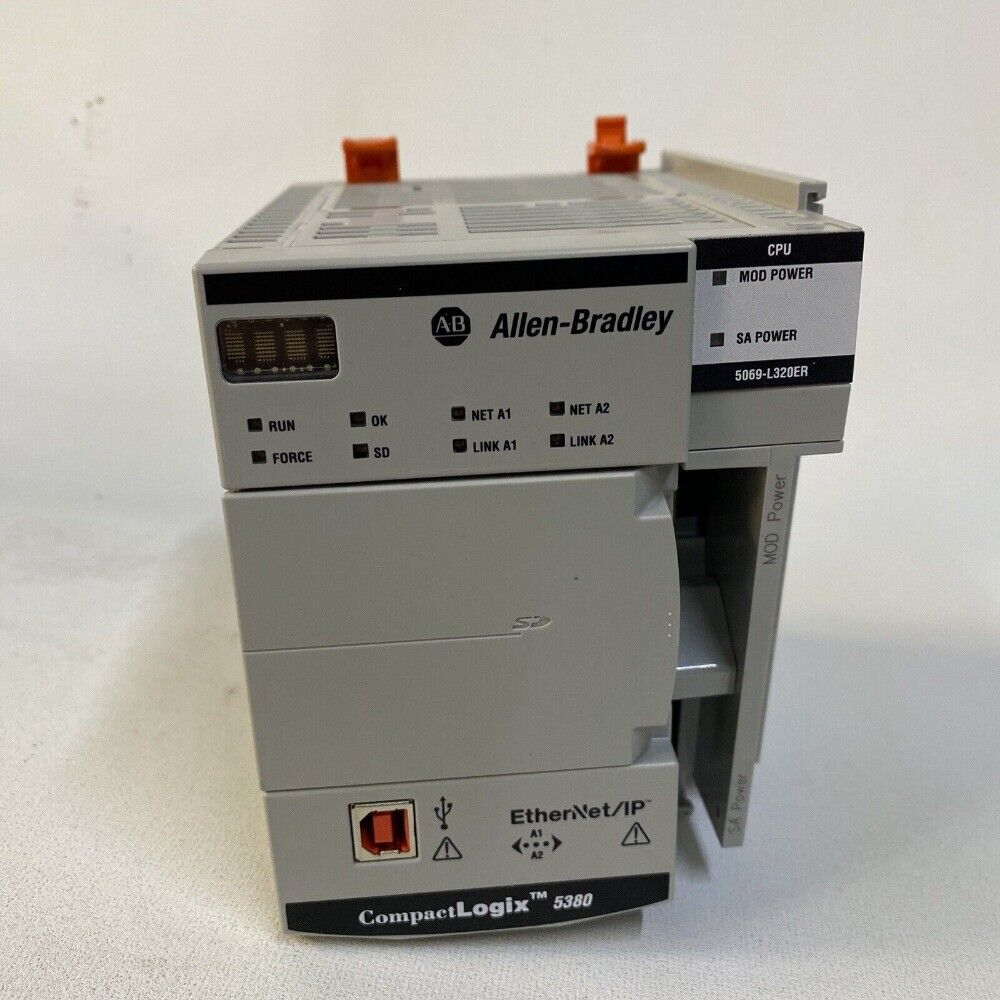

Allen-Bradley | 5069-L320ER| CompactLogix 5380

Product Description: Allen-Bradley 5069-L320ER

The Allen-Bradley 5069-L320ER is a CompactLogix 5380 controller designed for high-performance industrial automation applications. With 2 MB of user memory, support for up to 16 local I/O modules, and the ability to manage up to 40 EtherNet/IP nodes, this controller offers a scalable solution for a wide range of control systems. Its dual Gigabit Ethernet ports provide flexible network topologies, including star, linear, and Device Level Ring (DLR) configurations.

Key Features

• User Memory: 2 MB
• Local I/O Modules Supported: Up to 16
• EtherNet/IP Nodes Supported: Up to 40
• Communication Ports:

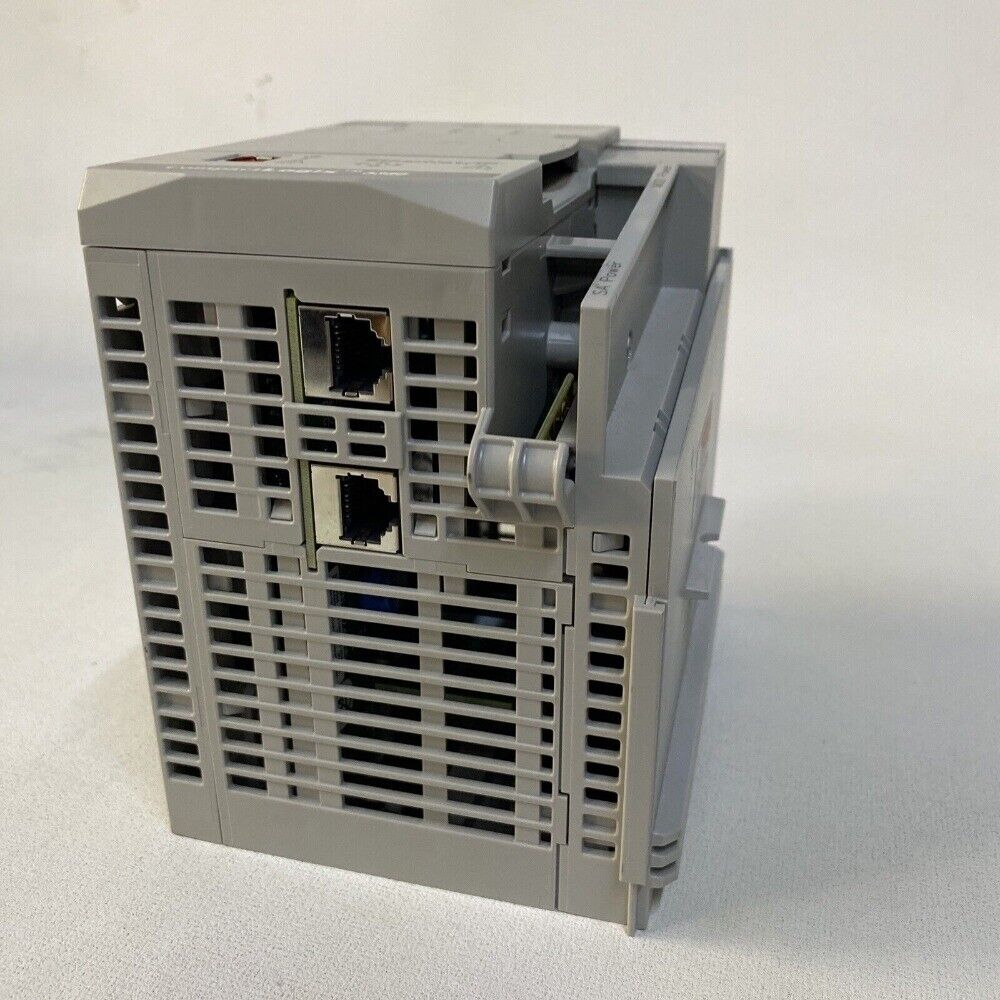

  • 2 x 1 Gigabit EtherNet/IP ports
• Processor: Quad-core
• Supported Network Topologies: Star, Linear, Device Level Ring (DLR)
• Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
• Mounting: DIN rail (horizontal mount only)
• Removable Terminal Blocks (RTBs): Compatible with 5069-RTB4 and 5069-RTB6 kits

Technical Specifications

• Input Voltage:
  • Module (MOD) Power: 18–32V DC
• Power Dissipation: 8.5 W (maximum)
• Thermal Dissipation: 29 BTU/hr (maximum)
• Isolation Voltage:
  • 300V (continuous) between MOD/SA Power and Backplane
• Dimensions (HxWxD): Approximately 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.)
• Weight: Approximately 0.768 kg (1.693 lb)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing

Application Areas

• Machine control systems
• Process automation
• Packaging machinery
• Material handling systems
• Industrial manufacturing processes

Advantages

• High Performance: Quad-core processor enables fast execution of control tasks.
• Scalability: Supports a wide range of I/O modules and network nodes for system expansion.
• Flexible Networking: Dual Gigabit Ethernet ports allow for various network topologies.
• Enhanced Diagnostics: Built-in status indicators and diagnostic capabilities simplify troubleshooting.
• Compact Design: Space-saving form factor suitable for installations with limited space.
