Allen-Bradley | 5069-L306ER | CompactLogix 5380

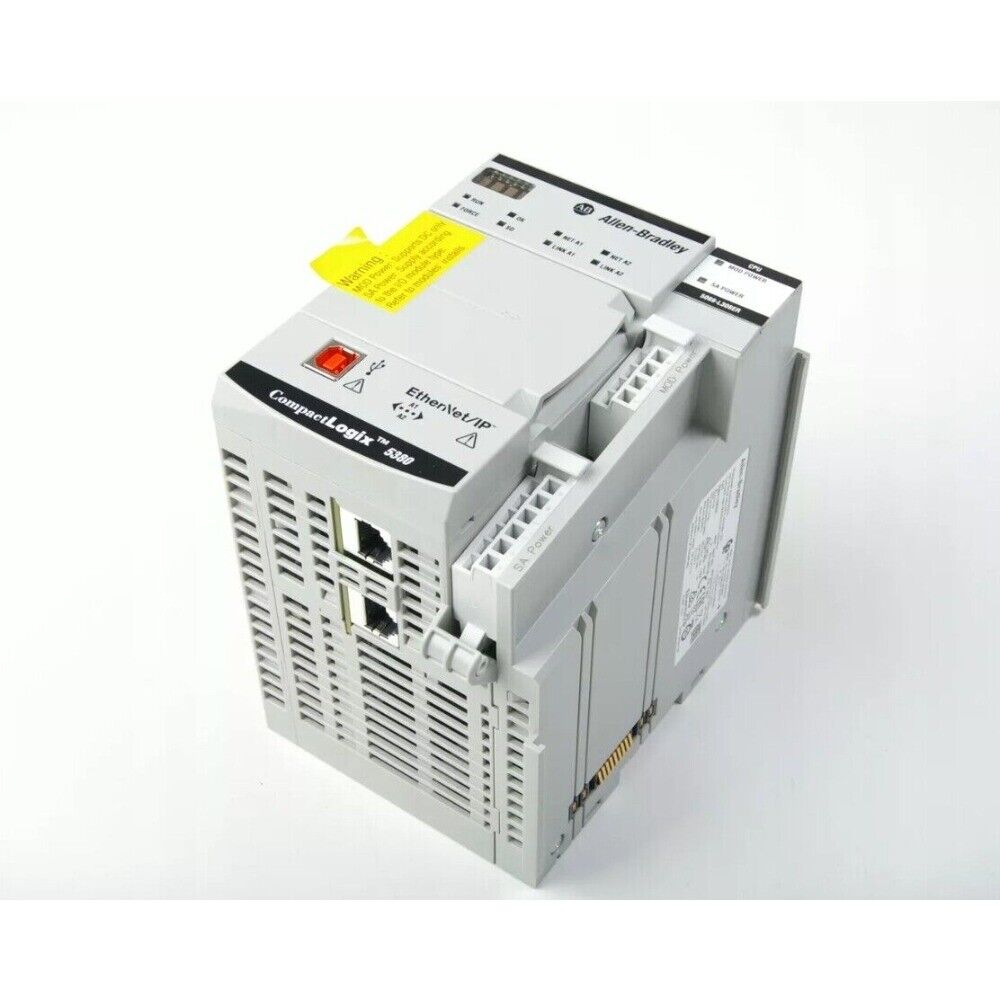

Product Description: Allen-Bradley 5069-L306ER

The Allen-Bradley 5069-L306ER is a high-performance CompactLogix 5380 controller designed for applications requiring efficient and reliable control in industrial automation systems. With 0.6 MB of user memory and support for up to 8 local I/O modules and 16 EtherNet/IP nodes, it offers robust processing capabilities and flexible networking options. The controller's dual Ethernet ports support various network topologies, and its compatibility with Compact 5000 I/O modules ensures seamless integration and expansion.

Key Features

• 0.6 MB user memory
• Supports up to 8 local Compact 5000™ I/O modules
• Dual 1 Gbps Ethernet ports supporting Device Level Ring (DLR), Linear, and Star topologies
• USB 2.0 Type B port for programming and configuration
• Supports up to 16 EtherNet/IP nodes
• Handles up to 32 tasks, each with up to 1000 programs
• DIN rail mounting for compact installations

Technical Specifications

• User Memory: 0.6 MB
• Non-volatile Memory: 2 GB SD card (1784-SD2 included)
• Ethernet Ports: 2 (10/100/1000 Mbps, full-duplex)
• USB Port: 1 Type B, USB 2.0 (12 Mbps)
• I/O Capacity: Up to 8 local modules
• EtherNet/IP Nodes Supported: Up to 16
• Operating Temperature: 0 to 60°C
• Power Supply Input Voltage: 18–32V DC
• Dimensions (HxWxD): Approx. 143.97 x 98.10 x 136.81 mm
• Mounting: DIN rail

Application Areas

• Discrete and process manufacturing
• Packaging and material handling systems
• Food and beverage industry
• Automotive assembly lines
• Water and wastewater treatment facilities
• Building automation systems

Advantages

• High-speed processing for demanding applications
• Flexible network integration with dual Ethernet ports
• Scalable architecture suitable for small to medium systems
• Enhanced diagnostics for efficient troubleshooting
• Compact design saves panel space
• Seamless integration with Compact 5000 I/O modules
