Product Description: Allen-Bradley 5069-IF8

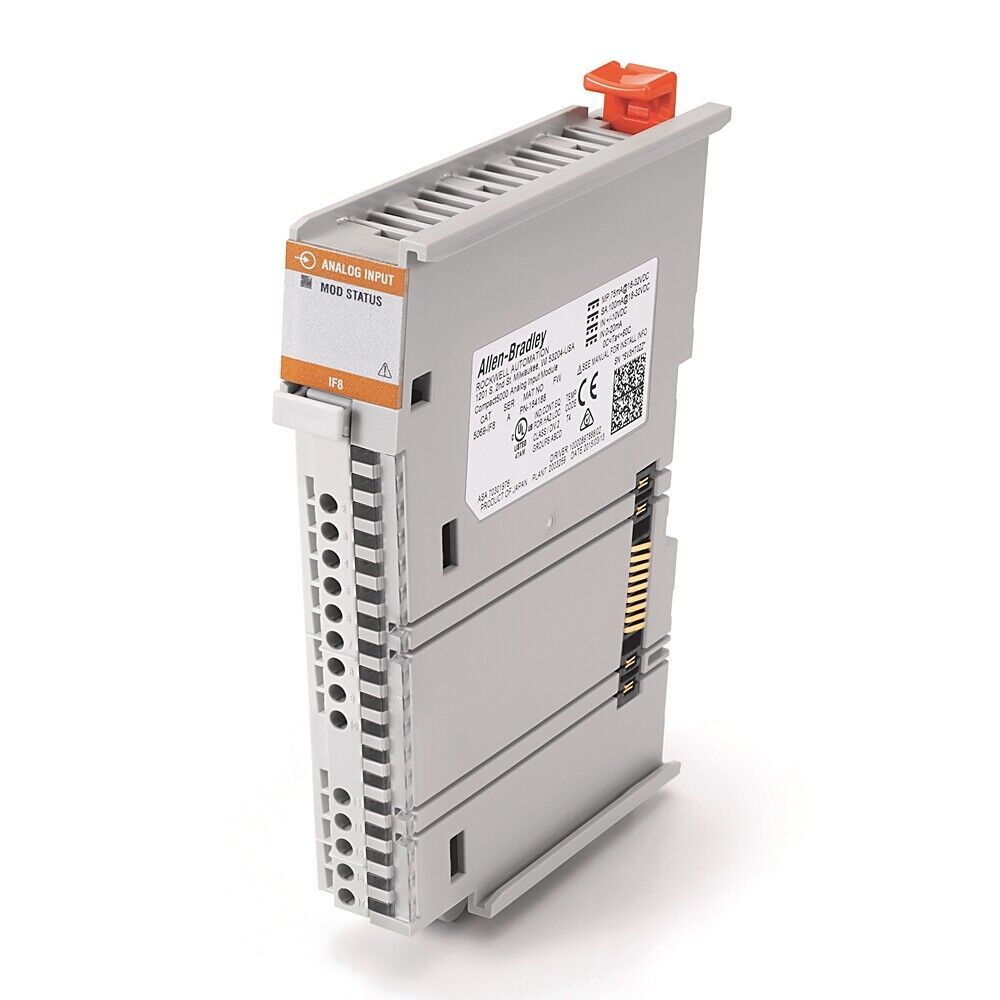

The Allen-Bradley 5069-IF8 is an analog input module from the Compact 5000 I/O series , designed for high-speed, high-accuracy data acquisition in modern industrial automation systems. This 8-channel input module supports both voltage and current signal types and provides precise analog data to Logix 5000 controllers such as CompactLogix 5380 and 5480. The 5069-IF8 enables scalable, distributed control architectures with advanced diagnostics and secure, efficient communication.
Product Type
- Analog Input Module
- Series: Compact 5000 I/O
- Platform Compatibility: Designed for CompactLogix 5380/5480 and ControlLogix systems via Ethernet adapters
Key Features
- 8 differential analog input channels
-
Supports voltage and current inputs:
- Voltage ranges: ±10V, 0–10V, 0–5V
- High-resolution 16-bit conversion for accurate data acquisition
- Channel-to-channel isolation for increased signal integrity
- Advanced diagnostics including wire-off detection and overrange/underrange alerts
- Electronic keying for enhanced safety and configuration verification
- High-speed data update rates, optimized for real-time applications
- DIN rail mounting for quick and easy installation
- Screw-type terminal block (5069-RTB18-SCREW or similar required, sold separately)
- Compact form factor that reduces panel space and wiring complexity
Technical Specifications
- Channels: 8 differential inputs
- Resolution: 16-bit
- Input Impedance: >1 MΩ (voltage), 250 Ω (current)
- Update Rate: Configurable per channel, as fast as 1 ms
- Backplane Power Consumption: ~2.0 W
- Isolation Voltage: 250V (channel-to-system)
- Dimensions (HxWxD): Approx. 118 mm x 35 mm x 105 mm
- Operating Temperature: -20°C to +60°C
- Certifications: UL, CE, c-UL, RCM, KC, RoHS
- Enclosure Rating: IP20
Application Areas
- Process control systems
- Industrial machine monitoring
- Factory automation requiring precise analog measurements
- Remote or distributed I/O setups
- Oil & gas, water treatment, food & beverage, and life sciences sectors
Advantages
- Precise analog signal acquisition with advanced filtering
- Seamless integration with modern Logix controllers
- Compact and efficient design for space-constrained panels
- Flexible signal type configuration per channel
- Robust diagnostics help reduce downtime and improve system reliability
