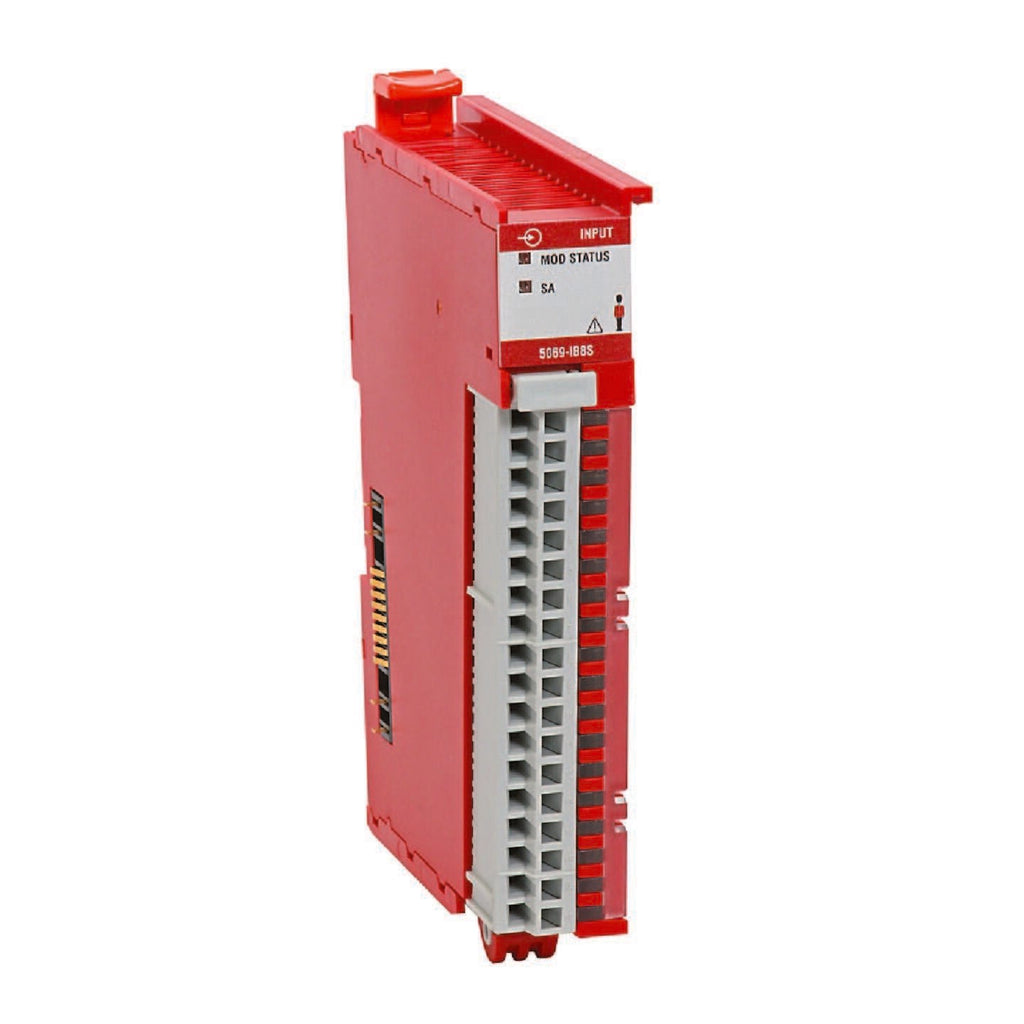

Allen-Bradley 5069-IB8S Compact 5000 I/O module. Red, gray module with text 'INPUT', 'MOD STATUS', 'SA', and '5069-IB8S'.

Allen-Bradley | 5069-IB8S | Compact 5000 I/O

$398.04
$398.04 $0.00
Skip to product information
Allen-Bradley 5069-IB8S Compact 5000 I/O module. Red, gray module with text 'INPUT', 'MOD STATUS', 'SA', and '5069-IB8S'.
1/4
  • Allen-Bradley 5069-IB8S Compact 5000 I/O module. Red, gray module with text 'INPUT', 'MOD STATUS', 'SA', and '5069-IB8S'.

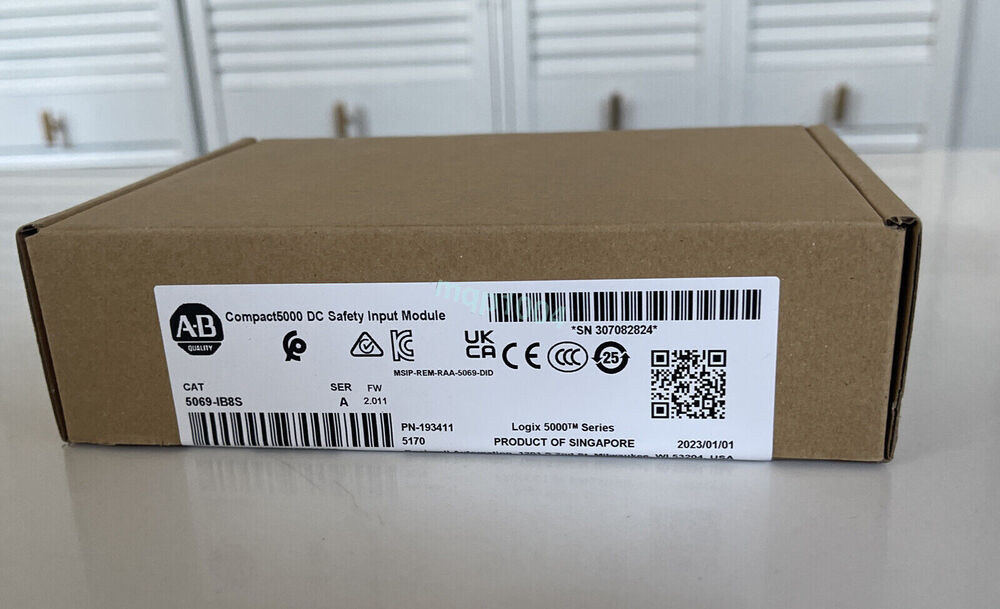

  • Allen-Bradley 5069-IB8S Compact 5000 DC Safety Input Module, New in Box, from Singapore, featuring product information.

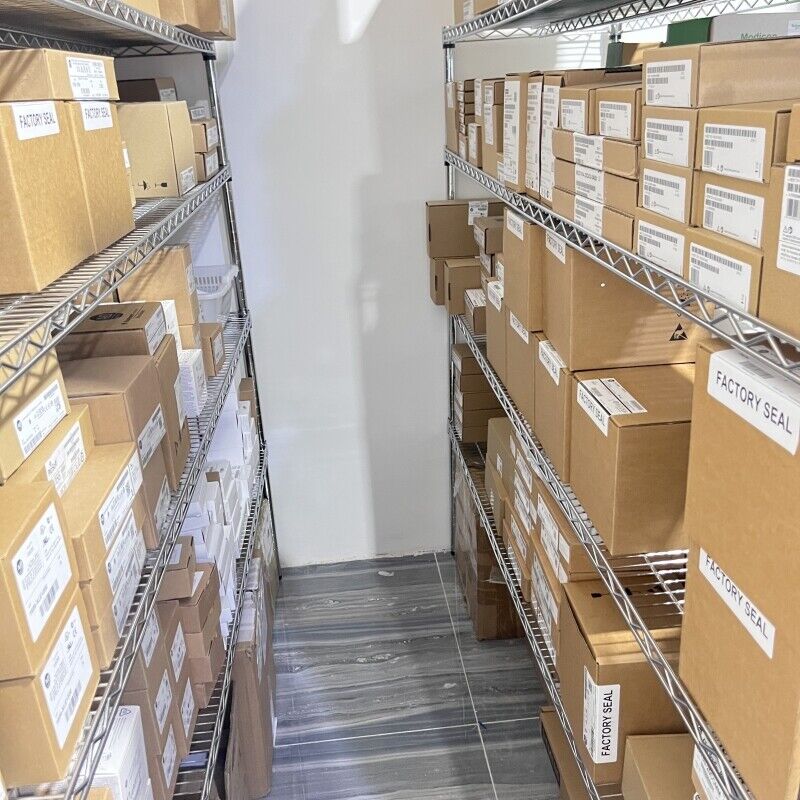

  • Allen-Bradley 5069-IB8S Compact 5000 I/O Modules in Factory Sealed Boxes
  • Great discount sale banner with gifts, credit card and clock illustration for automation hardware.
Allen-Bradley | 5069-IB8S | Compact 5000 I/O

Allen-Bradley | 5069-IB8S | Compact 5000 I/O

Request a Quote

Fill in the form and we will contact you shortly.

Product Description: Allen-Bradley 5069-IB8S

The Allen-Bradley 5069-IB8S is an 8-channel 24VDC safety sinking input module designed for use within the Compact 5000 I/O platform. It provides safety- rated input capabilities for applications requiring compliance with SIL CL 3 and PLe, Cat. 4 standards. This module is suitable for integration with Compact GuardLogix 5380 controllers as local I/O and with GuardLogix 5580 controllers as remote I/O over EtherNet/IP networks.

Key Features

  • Input Channels: 8 safety-rated sinking inputs
  • Voltage Range: 10–32V DC
  • Input Current: 2.5 mA per channel
  • Test Outputs: 2 test output channels
  • Safety Ratings: SIL CL 3 (IEC 61508), PLe, Cat. 4 (ISO 13849-1)
  • Communication: EtherNet/IP via backplane
  • Configuration: Studio 5000 Logix Designer software
  • Mounting Orientation: Horizontal, vertical, inverted horizontal, inverted vertical, upside down, upside up
  • Terminal Block Compatibility: Requires 5069-RTB18-SCREW or 5069-RTB18-SPRING removable terminal blocks

Technical Specifications

  • MOD Power Consumption: 75 mA @ 18–32V DC
  • MOD Power Passthrough: Up to 5 A @ 18–32V DC
  • SA Power Consumption: 100 mA @ 18–32V DC
  • SA Power Passthrough: Up to 9.95 A @ 18–32V DC
  • Isolation Voltage: 250V (continuous)
  • Operating Temperature: 0°C to +60°C (32°F to 140°F)
  • Enclosure Rating: IP20
  • Dimensions (HxWxD): Approximately 144 mm x 22 mm x 106 mm
  • Weight: Approximately 0.3 kg

Application Areas

  • Safety-critical industrial automation systems
  • Machine safety interlocks and emergency stop circuits
  • Safety light curtains and safety sensors integration
  • Applications requiring compliance with SIL CL 3 and PLe, Cat. 4 standards

Advantages

  • High Safety Compliance: Meets stringent international safety standards
  • Flexible Integration: Compatible with both local and remote I/O configurations
  • Compact Design: Saves panel space with a slim form factor
  • Ease of Configuration: Simplified setup using Studio 5000 software
  • Robust Diagnostics: Enhanced system diagnostics for improved safety monitoring
