Allen-Bradley | 5069-IB16| Compact 5000 I/O

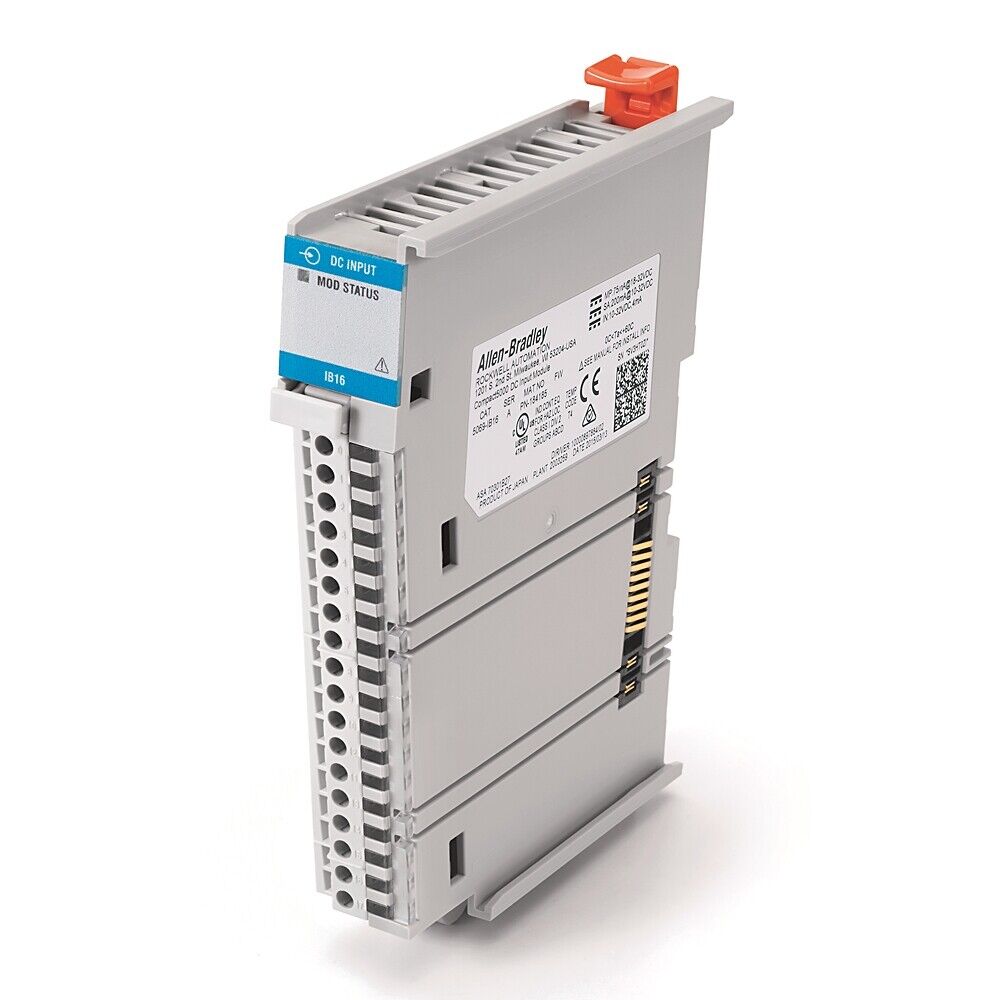

Product Description: Allen-Bradley 5069-IB16

The Allen-Bradley 5069-IB16 is a 16-point digital input module from the Compact 5000 I/O series, used to receive 24V DC sourcing signals from field devices such as sensors and switches. It is designed to work with CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 controllers. This module offers high-density signal input with diagnostic capabilities and supports both standard and safety-rated architectures in industrial control systems.

Key Features

• 16 sourcing (positive logic) digital inputs
• Input voltage range: 10–30V DC (nominal 24V DC)
• Status indicators per channel
• Supports high-density installations
• Includes integrated system diagnostics
• Requires removable terminal block (RTB), sold separately
• Compatible with standard and safety I/O chassis
• Designed for high-speed digital sensing applications

Technical Specifications

• Number of Inputs: 16
• Input Type: Sourcing (positive logic)
• Voltage Range: 10–30V DC
• Nominal Input Voltage: 24V DC
• Input Delay: Off to On = 1 ms, On to Off = 1 ms
• Isolation Voltage: 75V DC (continuous, basic insulation)
• Backplane Power Consumption: ~1.9 W
• Module Dimensions (H x W x D): Approx. 138 mm x 35 mm x 105 mm
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% non-condensing

Application Areas

• High-speed digital input detection
• Factory automation and process control
• Packaging and sorting systems
• Safety- interlocked machinery (non-safety rated version)
• Industrial equipment status monitoring
• Integration with CompactLogix controller families

Advantages

• Provides compact, high-density digital input capability
• Ideal for systems with space or I/O count constraints
• Easy integration with CompactLogix and GuardLogix architectures
• Fast and reliable signal processing for real-time control
• Reduces wiring complexity and improves diagnostics in control panels
