Product Description: Allen-Bradley 5069-AENTR

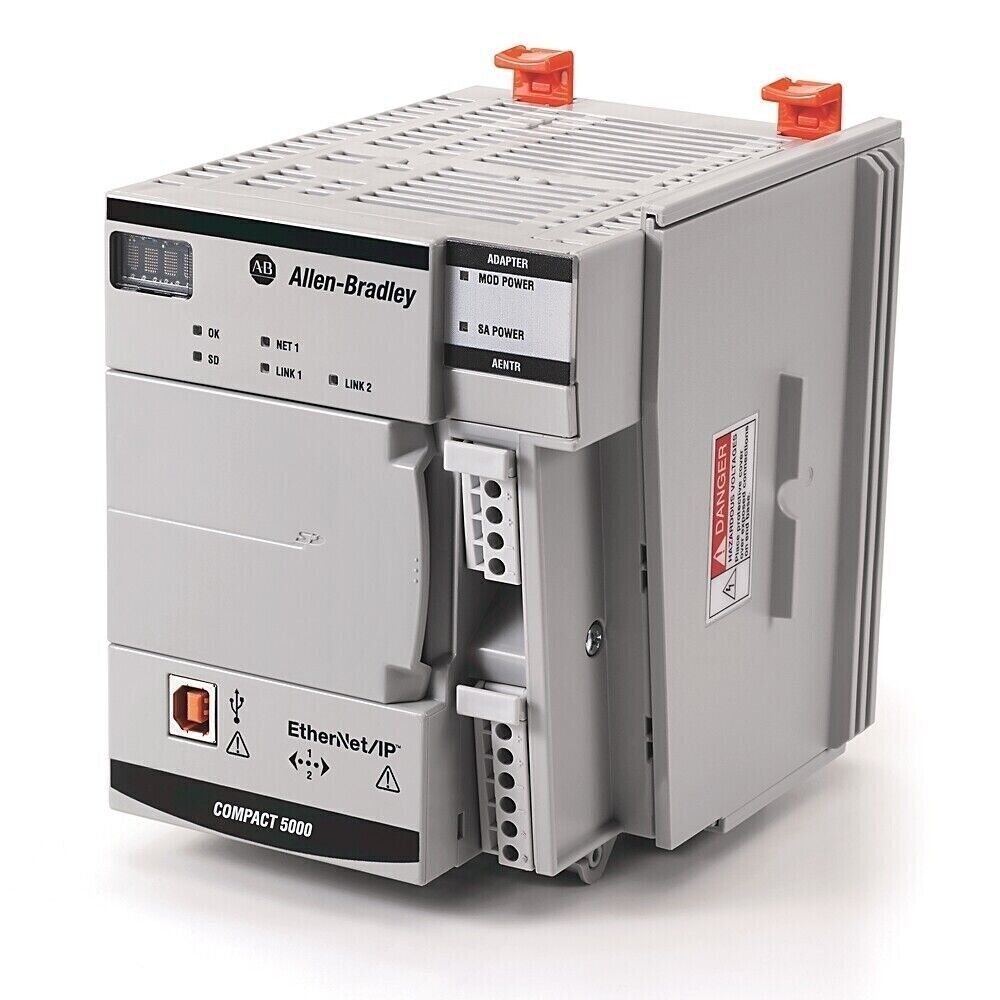

The Allen-Bradley 5069-AENTR is a dual-port EtherNet/IP adapter module designed for the Compact 5000 I/O system. It facilitates high-speed data transfer between Compact 5000 I/O modules and Logix 5000 controllers over an EtherNet/IP network. Supporting up to 31 local I/O modules, the 5069-AENTR is ideal for distributed control systems requiring reliable and efficient network communication.

Key Features

• Supports up to 31 local Compact 5000 I/O modules
• Dual EtherNet/IP ports with embedded 1 Gb switch technology
• Supports Linear and Device Level Ring (DLR) topologies
• Provides system-side (MOD) and field-side (SA) power to I/O modules
• Configurable via Studio 5000 Logix Designer application
• DIN rail or panel mounting options
• Requires 5069-RTB5-SCREW or 5069-RTB5-SPRING removable terminal block (sold separately)

Technical Specifications

• Control Voltage: 18–32V DC
• MOD Power Consumption: 220 mA
• MOD Power Inrush Current: 1750 mA for 70 ms
• MOD Power Passthrough: Up to 9.78 A @ 18–32V DC
• SA Power Consumption:
  • 5 mA @ 0–32V DC
  • 2 mA @ 0–240V AC, 47–63 Hz
• SA Power Passthrough:
  • Up to 9.95 A @ 0–32V DC
  • Up to 9.975 A @ 0–240V AC, 47–63 Hz
• Operating Temperature: 0 °C to +60 °C (32 °F to 140 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to 185 °F)
• Relative Humidity: 5% to 95% non-condensing
• Shock: 30 G operating, 50 G non-operating
• Vibration: 5 G @ 10–500 Hz
• Enclosure Rating: Open-style (no enclosure)
• Dimensions (H x W x D): 138 mm x 56 mm x 105 mm (5.43 in x 2.20 in x 4.15 in)
• Weight: Approximately 0.46 kg (1.01 lb)
• Certifications: UL, CE, ATEX, IECEx, and others

Application Areas

• Distributed control systems
• Industrial automation networks
• Machine control applications
• Process control systems
• Safety-critical applications with diagnostic requirements

Advantages

• High-speed data transfer with 1 Gb embedded switch technology
• Supports multiple network topologies for flexible system design
• Provides both MOD and SA power to connected I/O modules
• Compact design saves panel space
• Seamless integration with CompactLogix and GuardLogix controller systems
