Product Description: Allen-Bradley 440R-EM4R2D

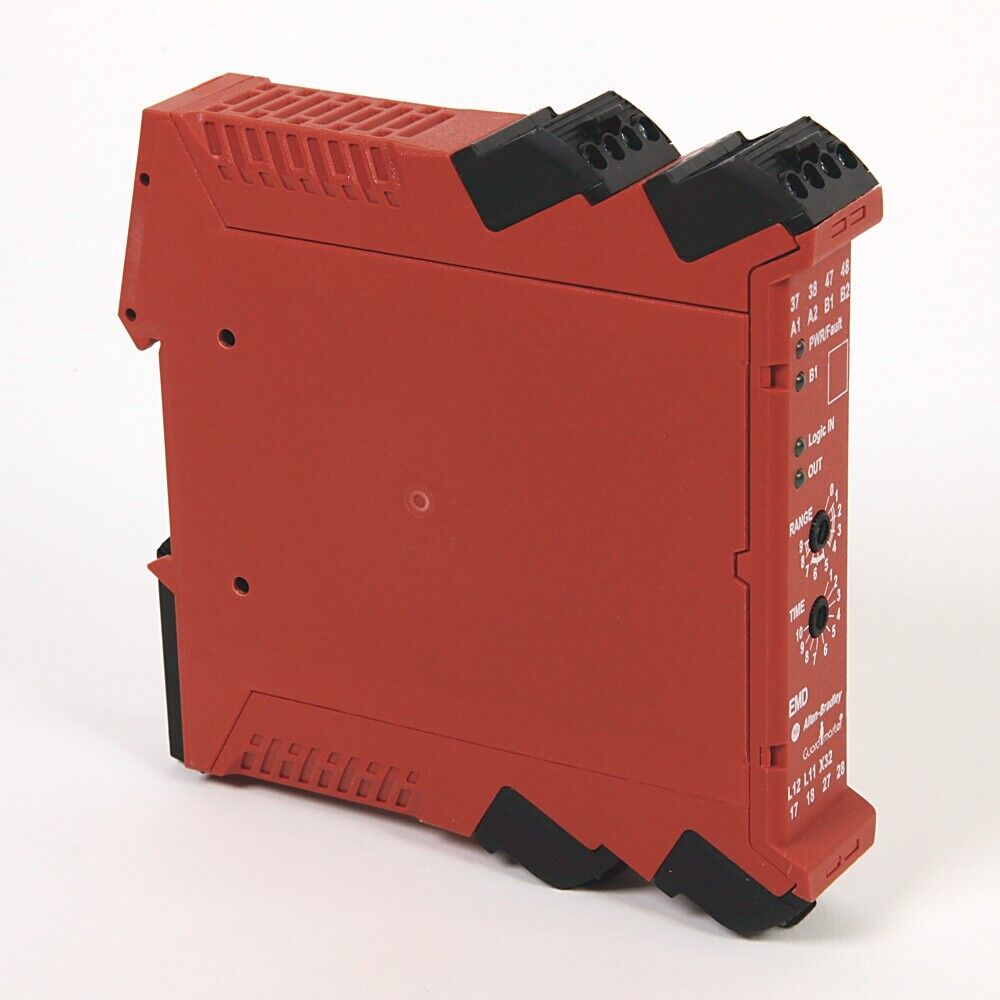

The Allen-Bradley 440R-EM4R2D is an expansion module within the Guardmaster Safety Relay (GSR) family, designed to provide four delayed normally open (N.O.) safety outputs. It integrates seamlessly with other GSR units via a Single Wire Safety (SWS) connection, allowing for scalable and flexible safety system architectures. This module is ideal for applications requiring time- delayed safety outputs, such as controlled machine stopping sequences.
Key Features
- Four delayed N.O. safety outputs
- Single Wire Safety (SWS) input and output for easy expansion
- Configurable for on-delay, off-delay, or jog functions
- Rotary switches for setting delay time and function
- Removable screw terminals for simplified wiring
- LED indicators for power, fault, and logic status
- Compact 22.5 mm housing suitable for DIN rail mounting
- Complies with EN ISO 13849-1 Performance Level e and SIL 3 standards
Technical Specifications
- Supply Voltage: 24V DC
- Safety Outputs: 4 delayed N.O. contacts
- Auxiliary Output: None
- Input Configuration: Single Wire Safety (SWS) input
- Reset Modes: Not applicable (controlled via SWS input)
- Delay Time Range: Configurable up to 300 seconds
- Power Consumption: Approximately 3.5 W
- Mounting: 35 mm DIN rail
- Housing Width: 22.5 mm
- Operating Temperature: -5°C to +55°C (23°F to 131°F)
- Enclosure Rating: IP40 (housing), IP20 (terminals)
- Certifications: CE, cULus, TUV, CCC
Application Areas
- Machinery requiring controlled stop sequences
- Safety systems with delayed shutdown requirements
- Integration with other GSR modules for expanded safety functions
- Industrial applications needing flexible safety relay configurations
Advantages
- Enhances safety system flexibility with delayed output functionality
- Simplifies system expansion through SWS connectivity
- Compact design conserves control panel space
- Easy configuration and installation
- High reliability and compliance with international safety standards
