Allen-Bradley | 2711R-T7T | PanelView 800

Product Description: Allen-Bradley 2711R-T7T

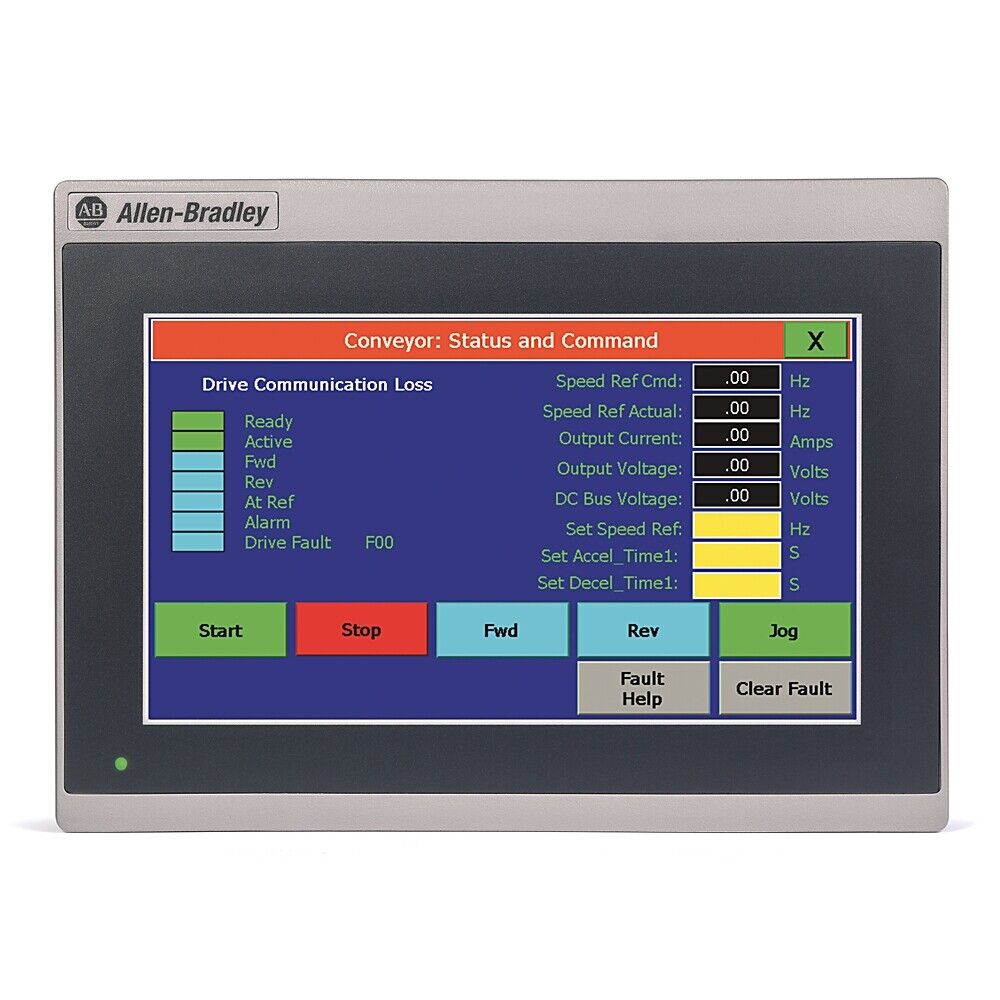

The Allen-Bradley 2711R-T7T is a 7-inch color touchscreen HMI from the PanelView 800 series. It is designed to provide a reliable, user-friendly interface for machine-level applications. With an 800 x 480 resolution, a high-performance 800 MHz processor, and 256 MB memory, it offers fast screen updates and responsive performance. It supports Ethernet and serial communication and is optimized for use with Micro800 and MicroLogix controllers.

Key Features

• 7-inch TFT color touchscreen display
• Resolution: 800 x 480 pixels
• 65K color support with LED backlight
• 800 MHz ARM processor
• 256 MB memory (128 MB user-available)
• Real-time clock with battery backup
• USB host port and microSD card slot
• Supports landscape and portrait screen orientations
• IP65-rated front panel
• Compatible with Connected Components Workbench (CCW)

Technical Specifications

• Display Size: 7 inches
• Display Type: TFT with resistive touchscreen
• Resolution: 800 x 480 pixels
• Processor: 800 MHz ARM
• Memory: 256 MB RAM (128 MB available for user)
• Input Power: 24V DC
• Communication Ports: Ethernet, RS-232/RS-422/RS-485, USB
• Storage Expansion: microSD card slot
• Enclosure Rating: IP65 (front), Type 1, 4X indoor
• Operating Temperature: 0°C to 50°C
• Mounting Type: Panel mount
• Dimensions (W x H x D): approx. 197 mm x 144 mm x 54 mm
• Panel Cutout Dimensions: 179 mm x 125 mm

Application Areas

• Machine-level control panels
• Packaging and labeling equipment
• Compact manufacturing systems
• HVAC and environmental monitoring
• Water and wastewater stations
• General-purpose operator interfaces

Advantages

• High performance and fast response time
• Easy integration with Allen-Bradley Micro800 and MicroLogix controllers
• Compact and durable design for tight-panel installations
• Intuitive touchscreen interface for improved operator efficiency
• Simplified development with Connected Components Workbench
