Allen-Bradley | 2711PC-T6C20D | PanelView Plus 6 Compact

Product Description: Allen-Bradley 2711PC-T6C20D

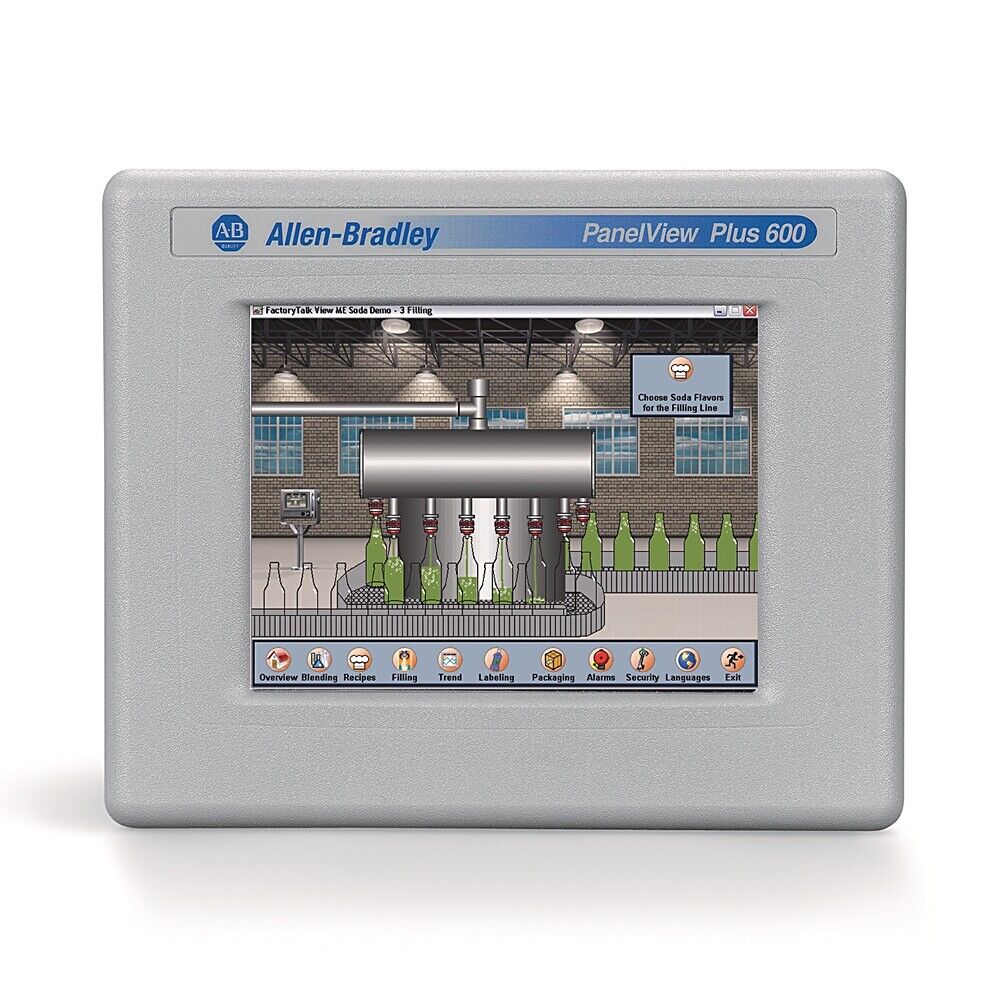

The Allen-Bradley 2711PC-T6C20D is a PanelView Plus 6 Compact HMI terminal featuring a 5.7-inch TFT color touchscreen display. Designed for small to mid- sized machine applications, it supports FactoryTalk View ME runtime software and provides essential communication via Ethernet and RS-232 ports. With its compact form and reliable performance, it offers effective visualization and control for Rockwell Automation systems.

Key Features

• 5.7-inch color TFT touchscreen display
• Resolution: 320 x 240 pixels (QVGA)
• Input Power: 18–30V DC
• Communication Ports:
• 1 x Ethernet (10/100 Mbps)
• 1 x RS-232 (DF1/point-to-point)
• Memory:
• 256 MB RAM
• 512 MB non-volatile flash memory
• Operating System: Windows CE 6.0
• Software Support: FactoryTalk View Machine Edition (ME), version 6.0 or later
• Mounting: Panel mount
• Integrated solid-state storage—no rotating media

Technical Specifications

• Display Type: 5.7" TFT LCD color
• Input Type: Touchscreen (analog resistive)
• Backlight: LED, replaceable
• Power Supply: 24V DC nominal (range: 18–30V DC)
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C
• Dimensions (H x W x D): Approx. 155 mm x 185 mm x 55 mm
• Cutout Dimensions: Approx. 137 mm x 175 mm
• Weight: Approx. 1.2 kg
• Certifications: UL, CE, cULus, RoHS

Application Areas

• Machine- level operator interfaces
• Small process control panels
• Industrial automation and OEM systems
• Monitoring and diagnostics dashboards
• Packaging, printing, and material handling systems

Advantages

• Compact design fits in space-constrained enclosures
• Full-color touchscreen enhances user interaction
• Reliable, solid-state design with no moving parts
• Integrated communication supports easy controller connectivity
• Runs FactoryTalk View ME applications for consistent user experience
