PanelView Plus 7 Performance | Allen-Bradley | 2711P-T9W22D9P PanelView Plus 7 Graphic Terminal

Product Description: Allen-Bradley 2711P-T9W22D9P

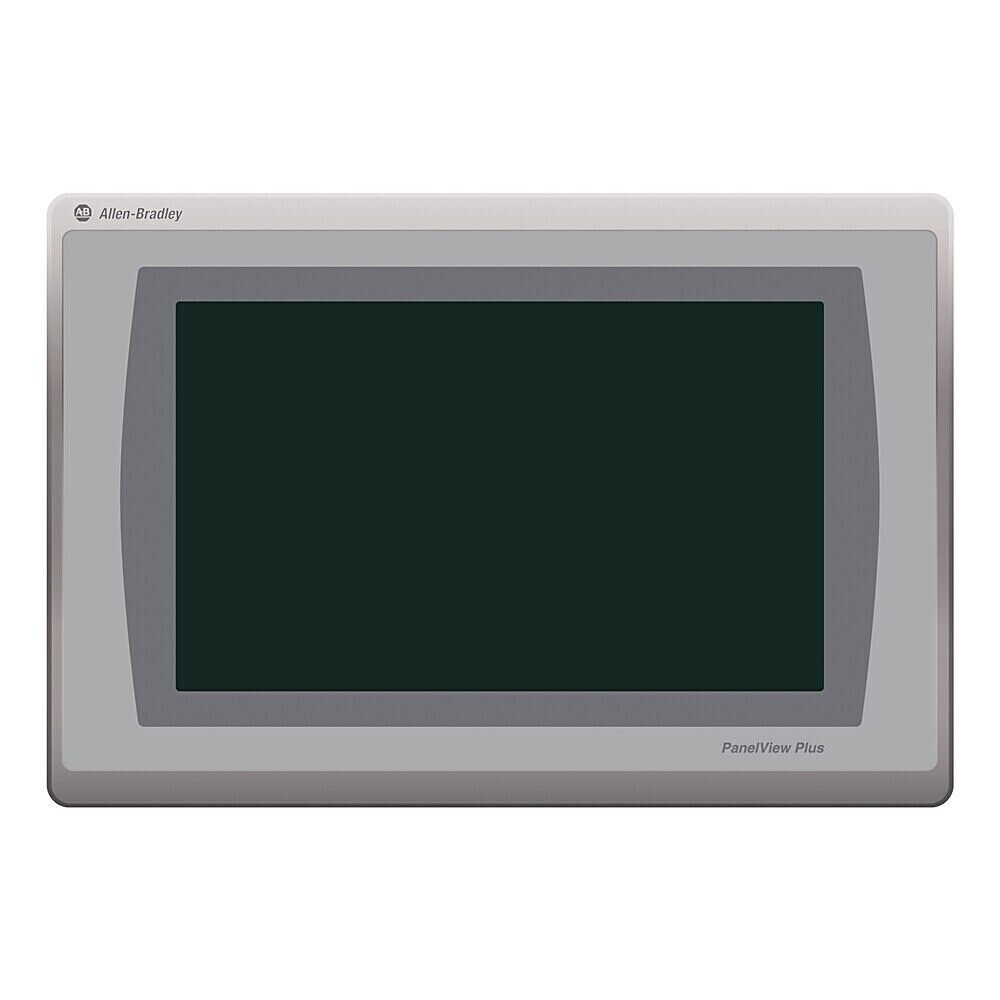

The Allen-Bradley 2711P-T9W22D9P is a 9-inch widescreen color touchscreen terminal designed for use in high-performance industrial automation environments. It is part of the PanelView Plus 7 Performance series and provides advanced visualization, improved processing power, and integrated connectivity options. This terminal allows direct integration with Logix controllers and supports scalable applications using Studio 5000 View Designer.

Key Features

• 9-inch WVGA TFT color display (800 x 480 resolution)
• Analog resistive touchscreen
• 800 MHz processor for fast application performance
• 512 MB RAM and 512 MB nonvolatile user storage
• Two Ethernet ports with support for Device Level Ring (DLR) topology
• USB 2.0 host port for external device support
• microSD card slot (supports up to 32 GB)
• Real-time clock with battery backup
• IP66-rated front panel, NEMA Type 4X/12/13 compliant
• DIN rail or panel-mount installation

Technical Specifications

• Display: 9-inch TFT LCD, 65K colors
• Resolution: 800 x 480 pixels (WVGA)
• Touchscreen Type: Analog resistive
• CPU: 800 MHz processor
• Memory: 512 MB RAM, 512 MB user flash
• Ethernet: Dual 10/100 Mbps ports
• USB: One USB 2.0 host port
• Storage: microSD card slot (up to 32 GB)
• Power Supply: 24V DC nominal (range: 18–30V DC)
• Power Consumption: Typical 14 W
• Operating Temperature: 0°C to 55°C
• Enclosure Rating: IP66 (front), NEMA 4X/12/13
• Dimensions (HxWxD): 190 x 280 x 69.6 mm
• Panel Cutout (HxW): 142 x 237 mm
• Weight: Approx. 2.42 kg

Application Areas

• Industrial manufacturing lines
• Packaging systems
• Water and wastewater control stations
• Food and beverage production
• Pharmaceutical and life sciences applications
• General factory automation

Advantages

• Enhanced graphics and touchscreen interface for real-time control
• Strong compatibility with Logix controllers
• Advanced communication with redundant Ethernet
• Easy integration and configuration via Studio 5000 View Designer
• Durable design suitable for harsh environments
• Supports scalable and distributed HMI applications
