Allen-Bradley | 2711-M3A18L1 |PanelView 300 Micro

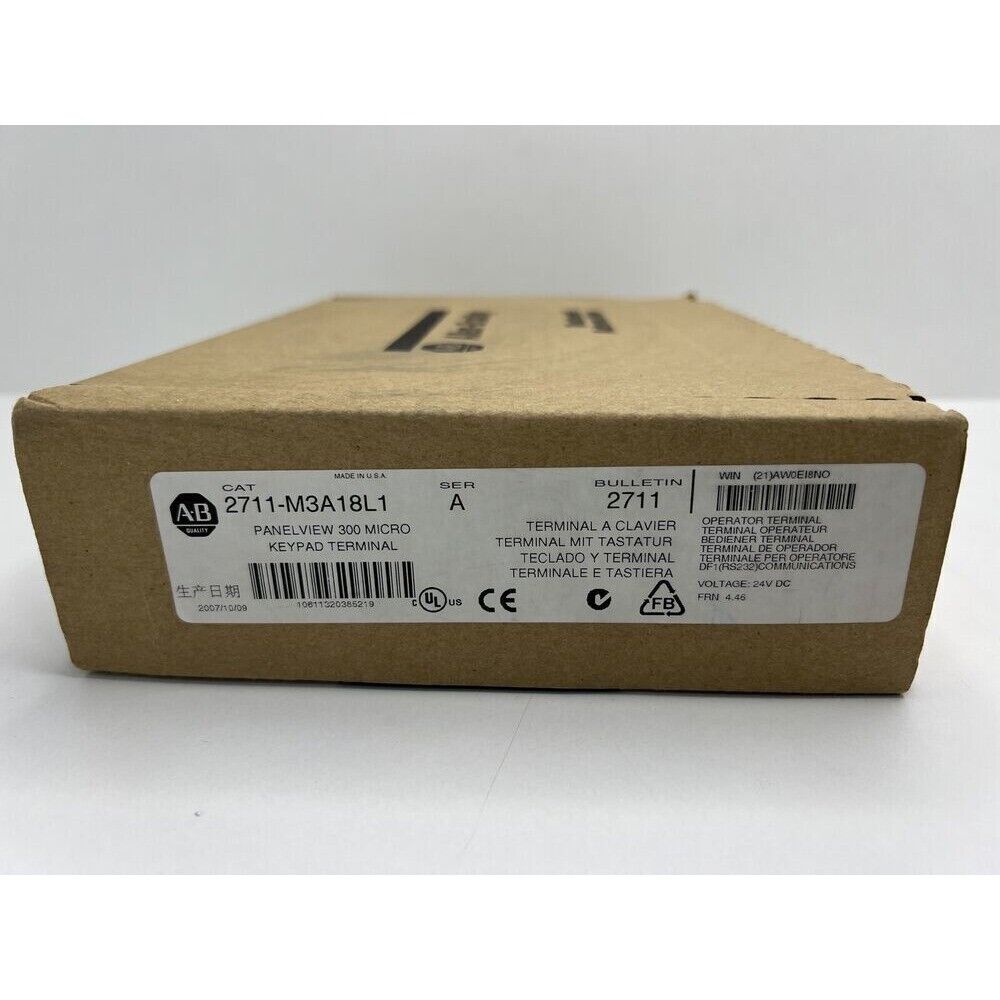

Product Description: Allen-Bradley 2711-M3A18L1

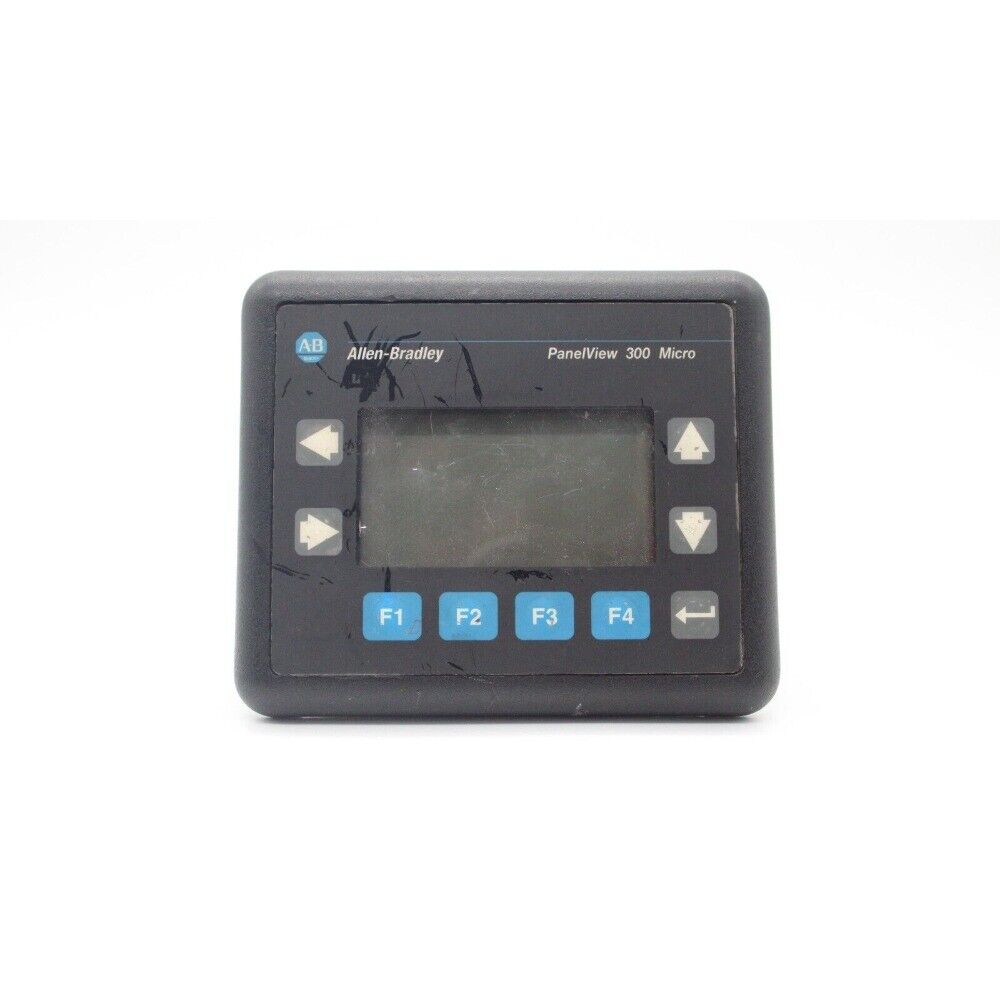

The Allen-Bradley 2711-M3A18L1 is a compact, budget- friendly operator terminal from the PanelView 300 Micro series. It features a 3-inch monochrome LCD screen with a numeric keypad input, suitable for simple monitoring and control applications. Designed to interface with MicroLogix controllers via DF1 serial communication, this unit is ideal for small machines and basic automation tasks.

Key Features

• 3-inch monochrome LCD display (Text only)
• 16-line x 40-character text resolution
• Keypad input with numeric and navigation keys
• RS-232 (DF1) serial communication port
• 24V DC input power
• Internal memory for application storage
• Supports PanelBuilder32 software for programming
• Non-expandable, fixed configuration

Technical Specifications

• Display Type: Monochrome FSTN LCD
• Display Size: 3 inches
• Resolution: 128 x 64 pixels
• Backlight: LED (non- replaceable)
• Input Type: Keypad (numeric + function keys)
• Communication Port: 1 x RS-232 (DF1 protocol)
• Power Supply: 24V DC nominal (18–30V DC range)
• Operating Temperature: 0°C to +55°C
• Enclosure Type: Open type (IP20 front panel NEMA 12, 13 when panel-mounted)
• Mounting: Panel mount
• Memory: Limited internal application storage
• Certifications: UL, CE, cULus

Application Areas

• MicroLogix-based machine control
• Simple operator interface panels
• OEM equipment with basic HMI needs
• Cost-sensitive automation applications
• Compact control systems

Advantages

• Compact and economical solution for basic HMI tasks
• Simple keypad operation ideal for data entry and navigation
• Reliable DF1 communication with MicroLogix PLCs
• Easy setup with PanelBuilder32
• Suitable for harsh industrial settings when properly mounted
