Allen-Bradley | 25B-D6P0N114 |PowerFlex 525
$371.45
Sale price
$371.45
Regular price
$0.00
Skip to product information
Allen-Bradley | 25B-D6P0N114 |PowerFlex 525
Request a Quote
Fill in the form and we will contact you shortly.
Product Description: Allen-Bradley 25B-D6P0N114

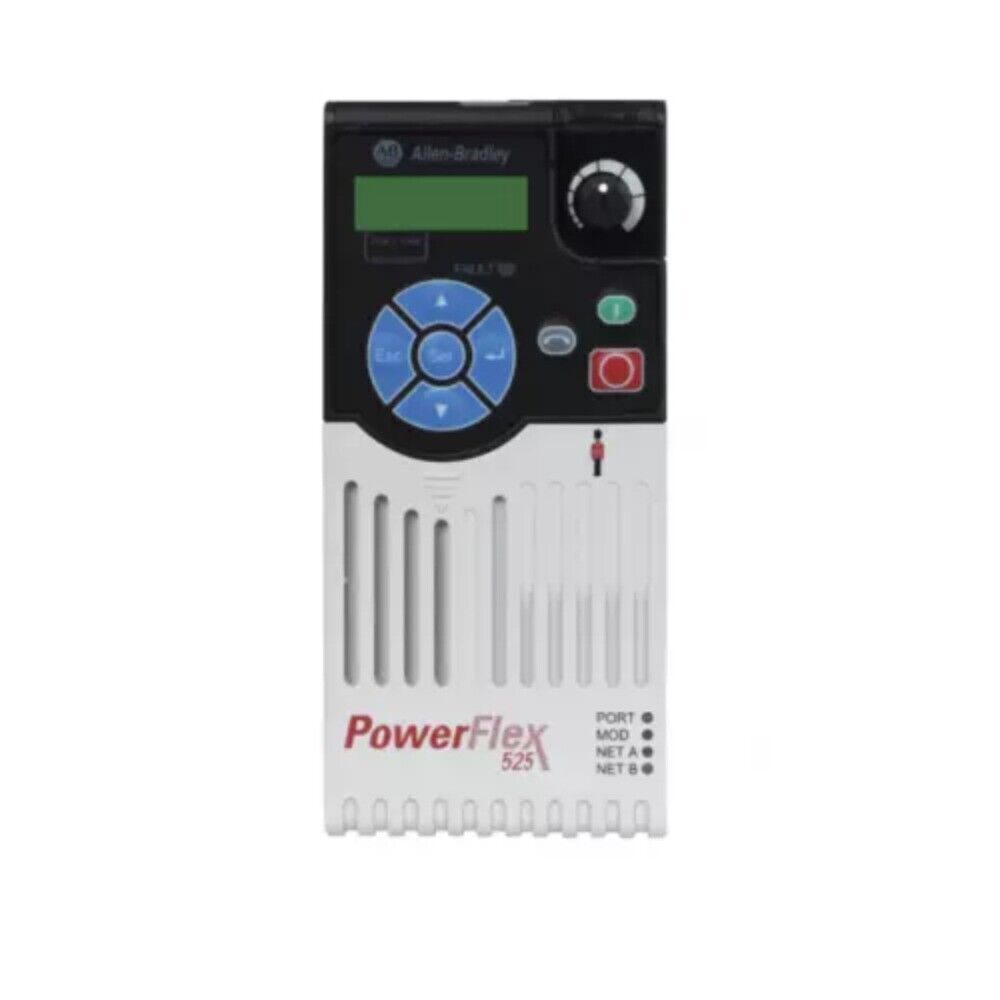

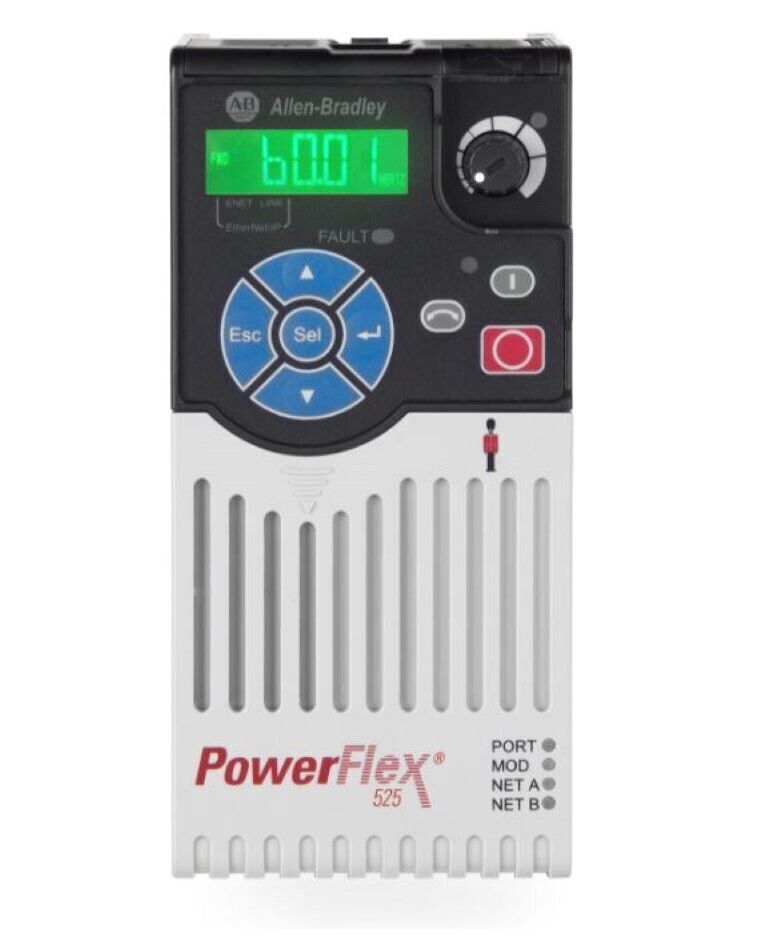

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 AC drive designed to control the speed of three-phase induction and permanent magnet motors. It supports a 380–480V AC, 3-phase input and delivers 6.0 A output current, corresponding to a 2.2 kW (3 HP) motor. This model integrates advanced features like Safe Torque-Off (STO) and built-in EtherNet/IP communication, making it ideal for compact and safety-critical industrial applications.
Key Features
- 2.2 kW (3 HP) power rating
- 6.0 A output current
- 380–480V AC, 3-phase input
- Built-in EtherNet/IP and Modbus- TCP
- Safe Torque-Off (STO) functionality
- V/Hz, Sensorless Vector, and Permanent Magnet Motor Control
- Frame A compact size
- IP20 open-type enclosure
- Integral keypad with LED display and potentiometer
- DIN rail or panel mounting
Technical Specifications
- Input Voltage: 380–480V AC, 3-phase
- Output Frequency: 0–500 Hz
- Power Factor: ≥ 0.98
- Ambient Operating Temp: -20°C to +50°C (without derating)
- Enclosure: IP20, NEMA Open Type
- Control Modes: V/Hz, Sensorless Vector Control (SVC), Closed Loop Velocity, Permanent Magnet
- EMC Filtering: Integrated
- Communication Ports: EtherNet/IP, Modbus-TCP
- Safety Function: Safe Torque-Off (certified)
Application Areas
- Conveyor systems
- Industrial pumps and fans
- Packaging and labeling machinery
- Material handling systems
- Mixers and agitators
- HVAC and ventilation equipment
Advantages
- Compact design fits into small enclosures
- Integrated safety and network features reduce system cost
- Flexible motor control suitable for various motor types
- Quick installation and easy configuration with intuitive interface
- Energy- efficient with high power factor and advanced control algorithms
