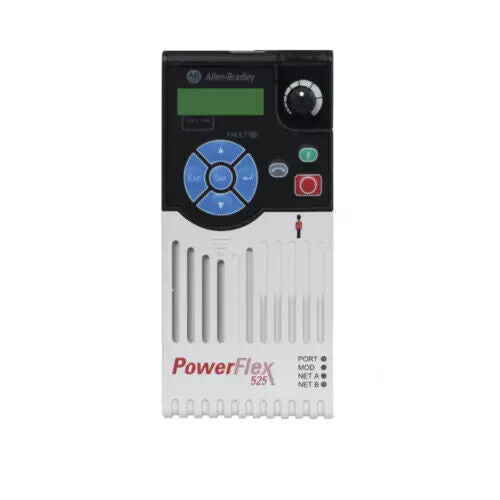

Allen-Bradley PowerFlex 525 AC Drive. Compact design for industrial automation, with keypads and LED display.

PowerFlex 525 | Allen-Bradley | 25B-D4P0N114 PowerFlex 525 1.5kW 2Hp AC Drive

$319.20
$319.20 $0.00
Skip to product information
Allen-Bradley PowerFlex 525 AC Drive. Compact design for industrial automation, with keypads and LED display.
1/4
  • Allen-Bradley PowerFlex 525 AC Drive. Compact design for industrial automation, with keypads and LED display.

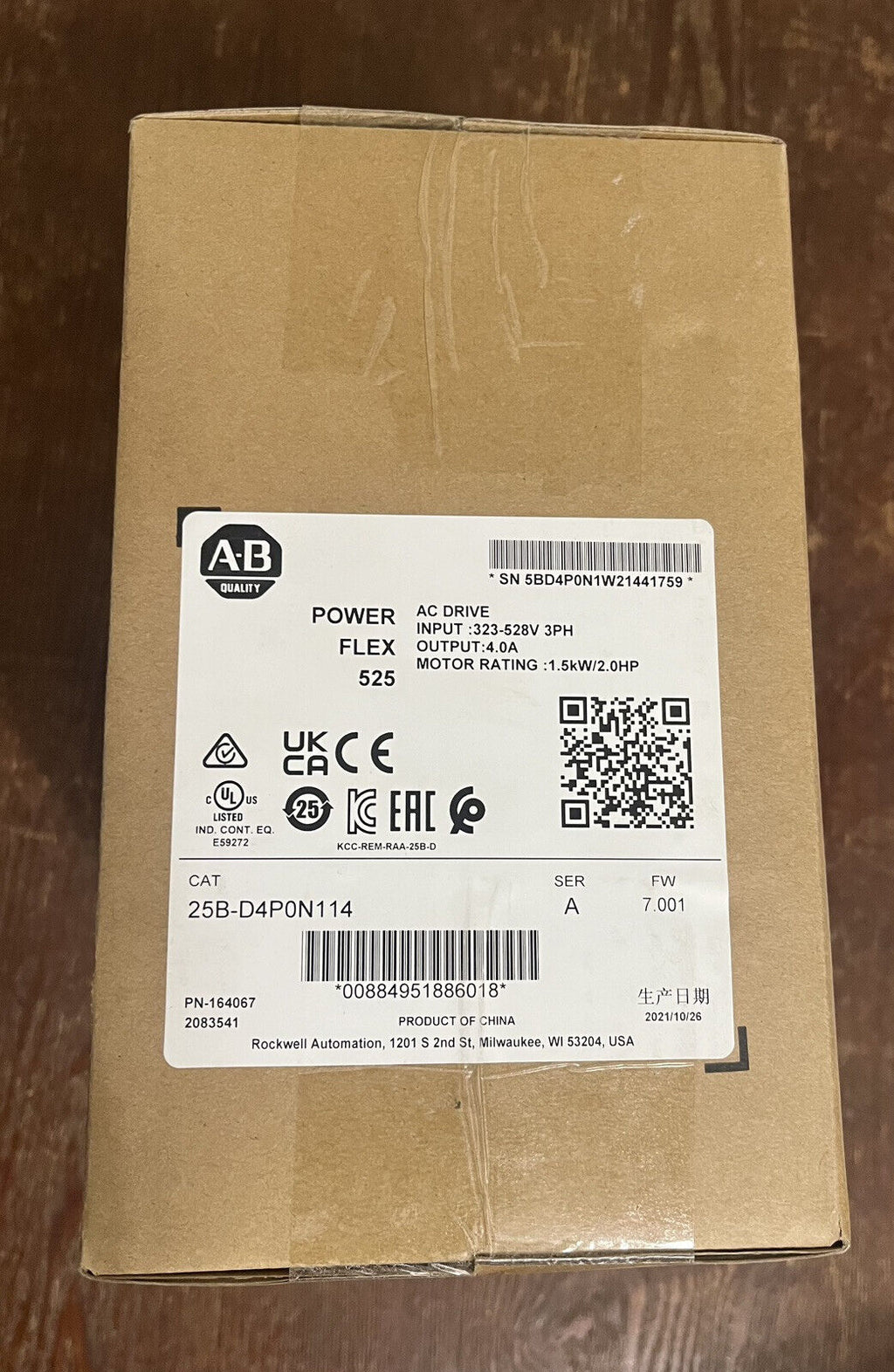

  • Allen-Bradley PowerFlex 525 AC Drive box, 1.5kW, 2HP, 380-480V, 25B-D4P0N114. Industrial automation part.
  • Radwell International warehouse storage of PowerFlex 525 AC Drive and industrial automation parts in boxes.
  • Automation hardware sale banner: "SALE" with gifts, clock, 10% off discount.
PowerFlex 525 | Allen-Bradley | 25B-D4P0N114 PowerFlex 525 1.5kW 2Hp AC Drive

PowerFlex 525 | Allen-Bradley | 25B-D4P0N114 PowerFlex 525 1.5kW 2Hp AC Drive

Request a Quote

Fill in the form and we will contact you shortly.

Product Description: Allen-Bradley 25B-D4P0N114

The Allen-Bradley 25B-D4P0N114 is a compact and versatile AC drive from the PowerFlex 525 series, designed for a wide range of industrial applications. It offers advanced motor control capabilities, embedded EtherNet/IP communication, and integrated safety features, making it suitable for both standard and safety-critical applications.

Key Features

  • Power Rating: 1.5 kW (2 HP) for both Normal Duty and Heavy Duty applications
  • Input Voltage: 380–480V AC, 3-phase
  • Output Current: 4.0 A
  • Control Modes: Supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and Closed Loop Velocity Vector Control
  • Embedded Communications: Built-in EtherNet/IP and DeviceNet ports for seamless integration
  • Safety Features: Integrated Safe Torque-Off (STO) functionality certified to SIL2/PLd Cat 3 standards
  • User Interface: Integral keypad with potentiometer and LED display for easy configuration and monitoring
  • Enclosure Type: IP20 NEMA / Open Type suitable for panel mounting
  • EMC Filtering: Integrated EMC filter for reduced electrical noise
  • Brake IGBT: Included for dynamic braking applications
  • Frame Size: Frame A for compact installations

Technical Specifications

  • Frequency Rating: 50–60 Hz
  • Power Factor: 0.98
  • Operating Temperature: -20°C to +50°C (up to +70°C with derating)
  • Dimensions (H x W x D): 152 mm x 72 mm x 172 mm (6.0 in x 2.8 in x 6.8 in)
  • Weight: Approximately 1.5 kg (3.3 lbs)
  • Certifications: CE, UL, cUL, TUV, and others

Application Areas

  • Conveyors and material handling systems
  • Pumps and fans
  • Packaging machinery
  • HVAC systems
  • Industrial automation requiring precise motor control

Advantages

  • Compact design saves panel space
  • Flexible motor control options for various applications
  • Integrated communications reduce the need for additional modules
  • Built-in safety features enhance machine safety
  • Easy to configure and commission with intuitive user interface
