PowerFlex 525 | Allen-Bradley | 25B-D2P3N114 PowerFlex 525 0.75kW 1Hp AC Drive

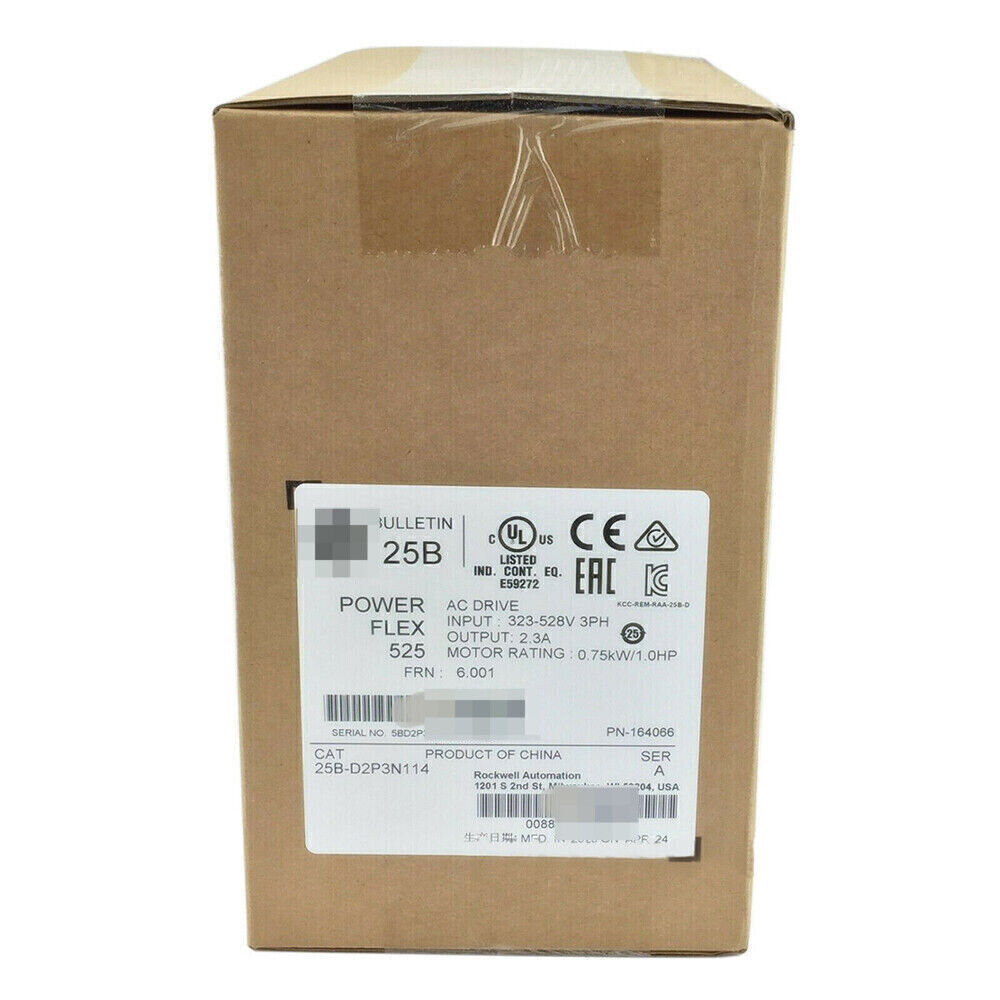

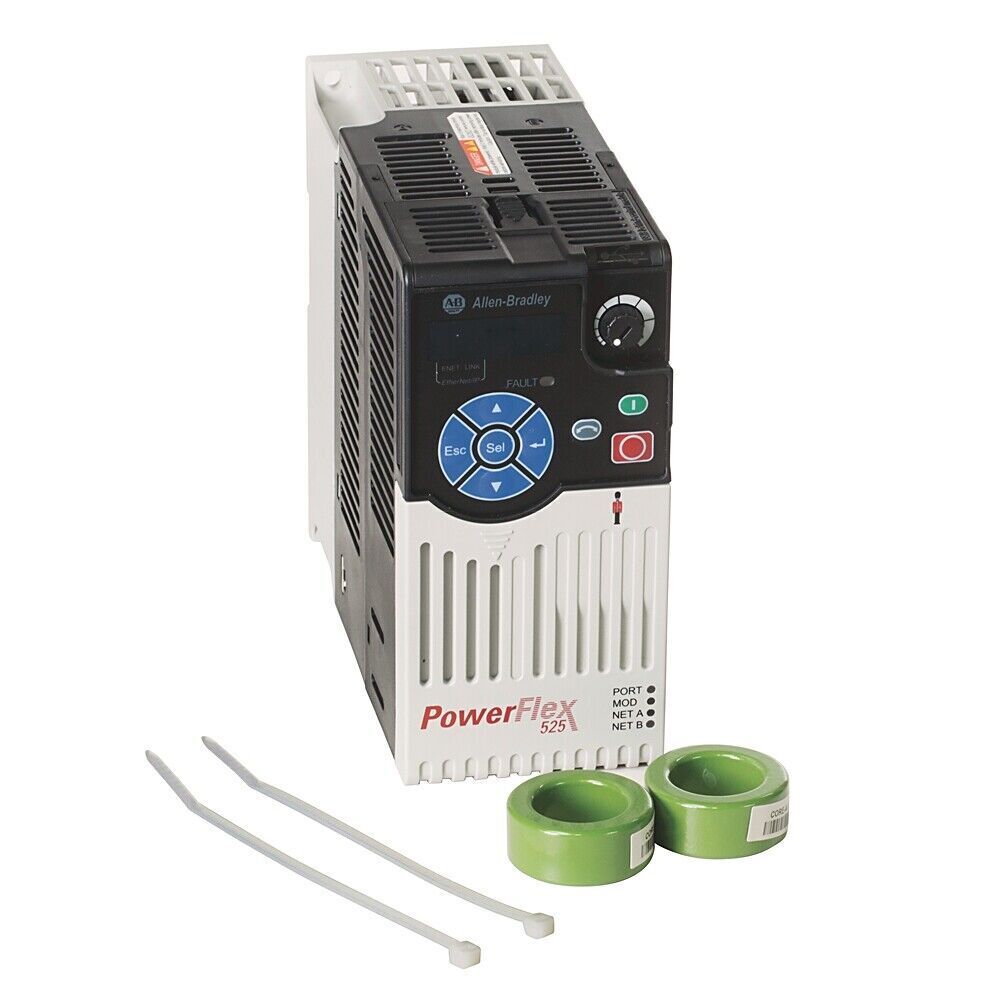

Product Description: Allen-Bradley 25B-D2P3N114

The Allen-Bradley 25B-D2P3N114 is a compact and high- performance AC drive from the PowerFlex 525 series. It delivers reliable motor control for a wide range of industrial applications. With built-in EtherNet/IP connectivity and integrated safety features such as Safe Torque-Off (STO), this drive simplifies installation and enhances system safety.

Key Features

• 0.75 kW (1 HP) motor control capability
• Operates on 380–480V AC, 3-phase input
• Delivers up to 2.3 A output current
• Supports V/Hz, Sensorless Vector Control (SVC), and Permanent Magnet Motor Control
• Embedded EtherNet/IP and RS-485 ports
• Integrated Safe Torque-Off (STO), SIL2/PLd, Cat 3
• Built-in braking IGBT
• Integral keypad with LED display and potentiometer
• IP20 / Open type enclosure
• Compact Frame A size

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Current: 2.3 A
• Frequency: 50/60 Hz
• Power Factor: 0.98
• Power Rating: 0.75 kW (1 HP)
• Operating Temperature: -20°C to +50°C (up to +70°C with derating)
• Dimensions (H x W x D): 152 mm x 72 mm x 172 mm
• Weight: Approx. 1.75 kg
• EMC Filter: Built-in
• Communications: EtherNet/IP, RS-485
• Certifications: CE, UL, cUL, TUV

Application Areas

• Conveyors and packaging systems
• Fans and pumps
• Material handling equipment
• HVAC systems
• Compact machinery control

Advantages

• Small footprint saves panel space
• Built-in networking reduces need for separate communication modules
• High efficiency and advanced motor control
• Integrated safety improves compliance and machine integrity
• Simple setup and operation via user-friendly keypad
