PowerFlex 525 | Allen-Bradley | 25B-D1P4N114 0.4kW 0.5Hp AC Drive 25BD1P4N114 !

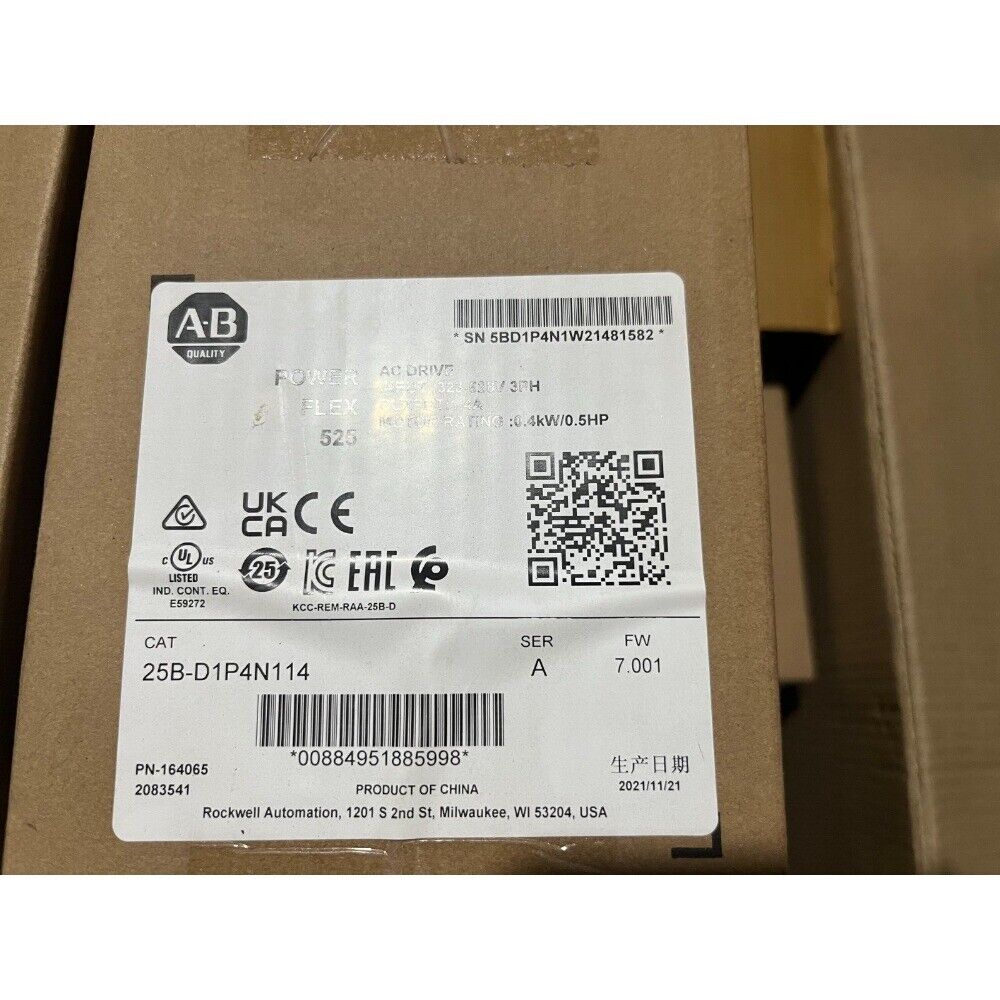

Product Description: Allen-Bradley 25B-D1P4N114

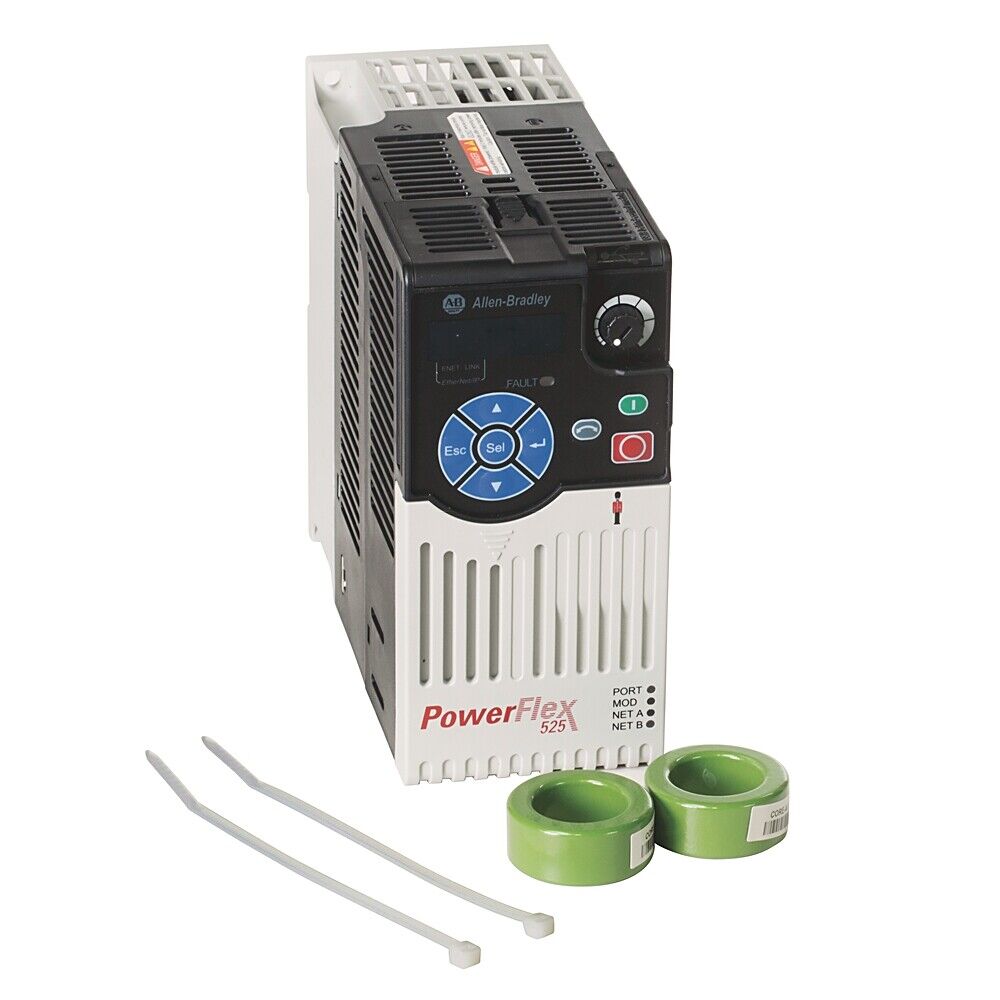

The Allen-Bradley 25B-D1P4N114 is a compact and reliable AC drive from the PowerFlex 525 family, engineered for small motor applications. It features embedded EtherNet/IP communication and integrated Safe Torque-Off (STO) functionality, making it suitable for a wide range of control systems that require compact design, safety compliance, and seamless connectivity.

Key Features

• 0.5 HP (0.37 kW) output rating
• 380–480V AC, 3-phase input voltage
• Output current of 1.4 A
• Control modes: V/Hz, Sensorless Vector Control (SVC), and Permanent Magnet Motor Control
• Built-in EtherNet/IP and RS-485 communication ports
• Integrated Safe Torque-Off (STO), SIL2/PLd, Category 3
• Braking IGBT included for dynamic braking capability
• LED display with integrated keypad and potentiometer
• IP20 open-type enclosure
• Compact Frame A footprint

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Current: 1.4 A
• Frequency: 50/60 Hz
• Power Factor: 0.98
• Power Rating: 0.37 kW (0.5 HP)
• Operating Temperature: -20°C to +50°C (up to +70°C with derating)
• Dimensions (H x W x D): 152 mm x 72 mm x 172 mm
• Weight: Approx. 1.5 kg
• EMC Filter: Integrated
• Communication: EtherNet/IP, RS-485
• Certifications: CE, UL, cUL, TUV

Application Areas

• Small conveyors and process machines
• Packaging and labeling equipment
• Fans and small pumps
• OEM machines with space constraints
• Control panels with distributed motor applications

Advantages

• Space-saving design for compact installations
• Built-in communications reduce wiring and hardware costs
• Integrated safety features ensure machine compliance
• Fast setup via keypad and user-friendly interface
• Flexible control for both induction and permanent magnet motors
