Allen-Bradley | 25B-D013N104 | PowerFlex 525

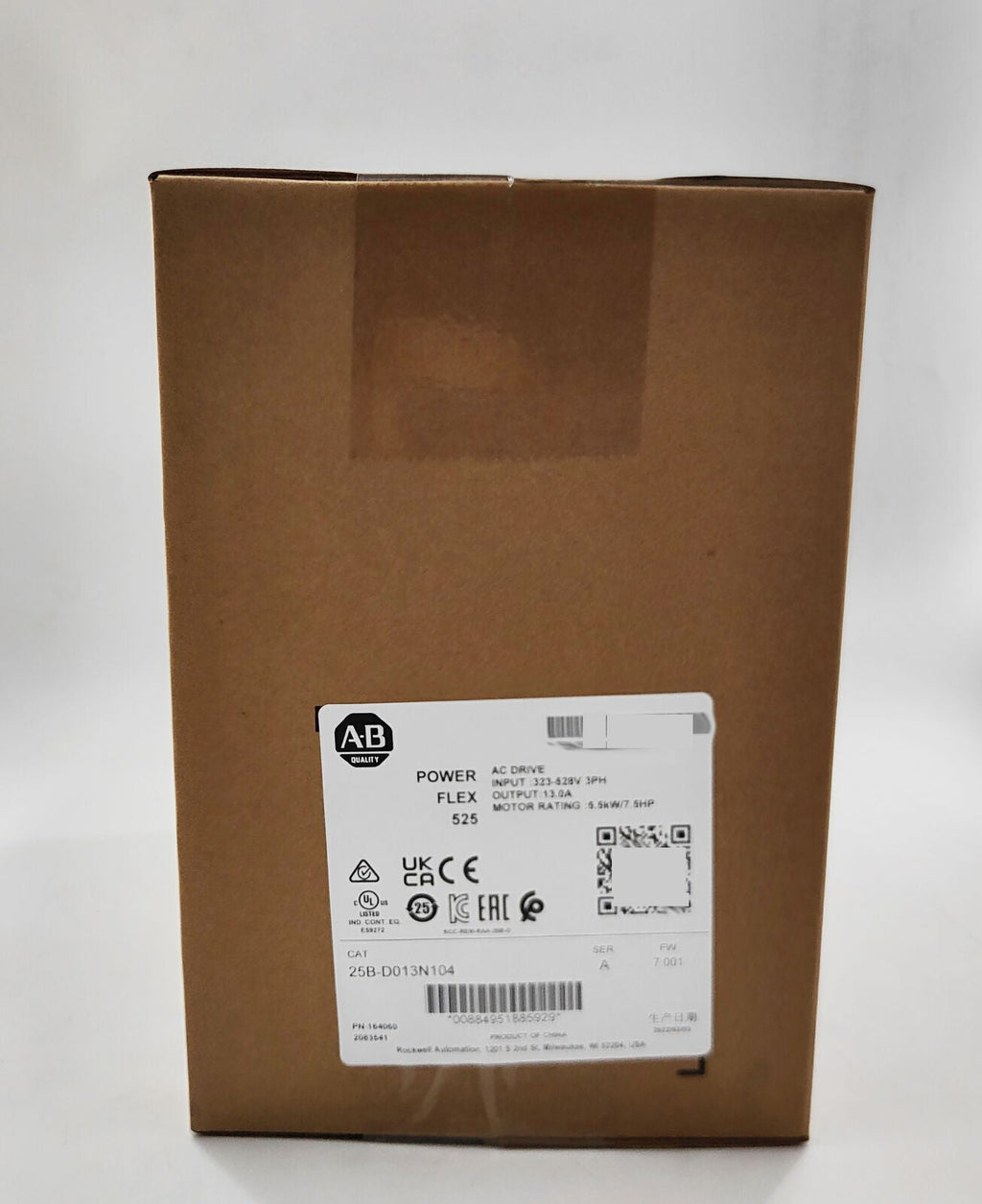

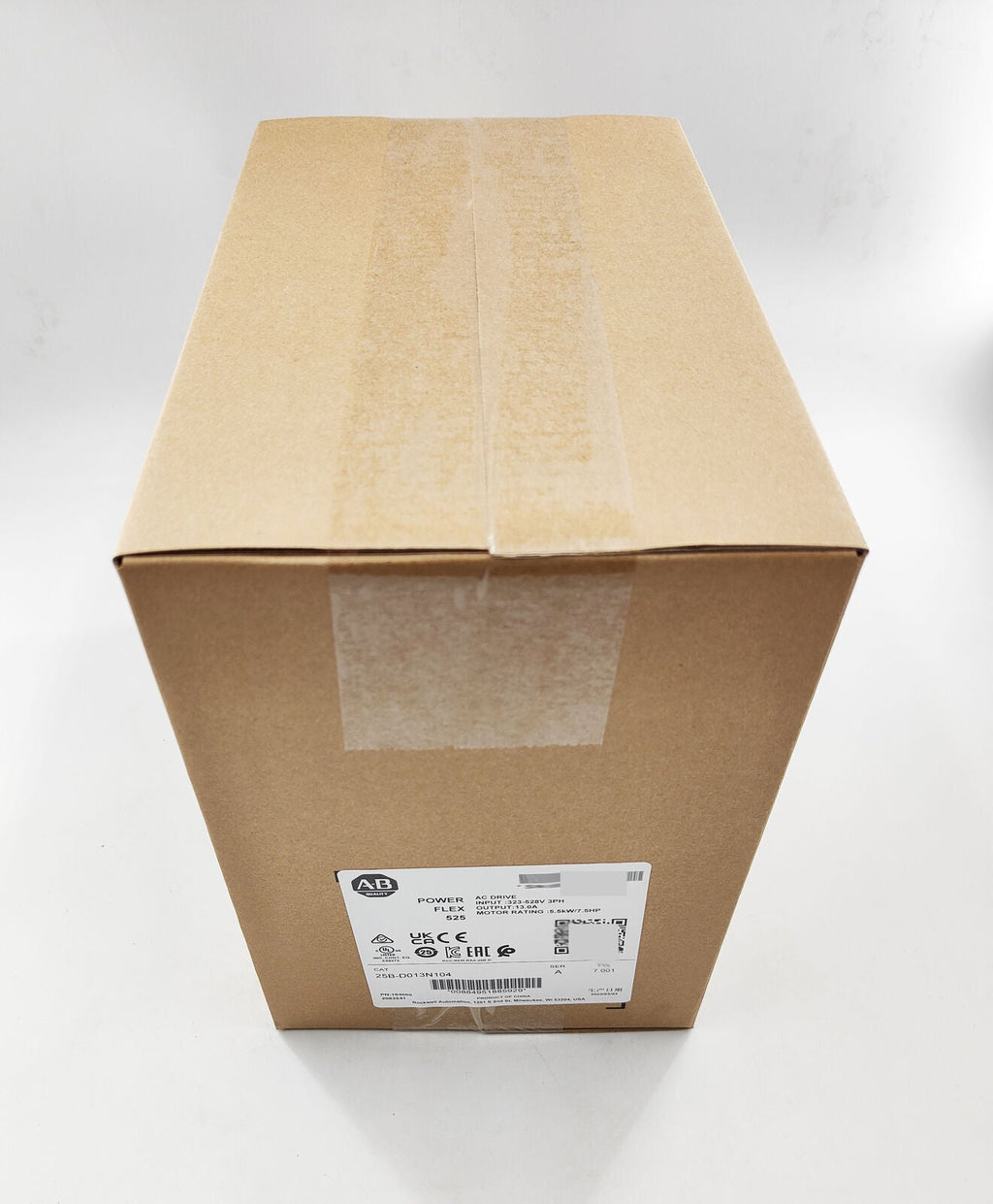

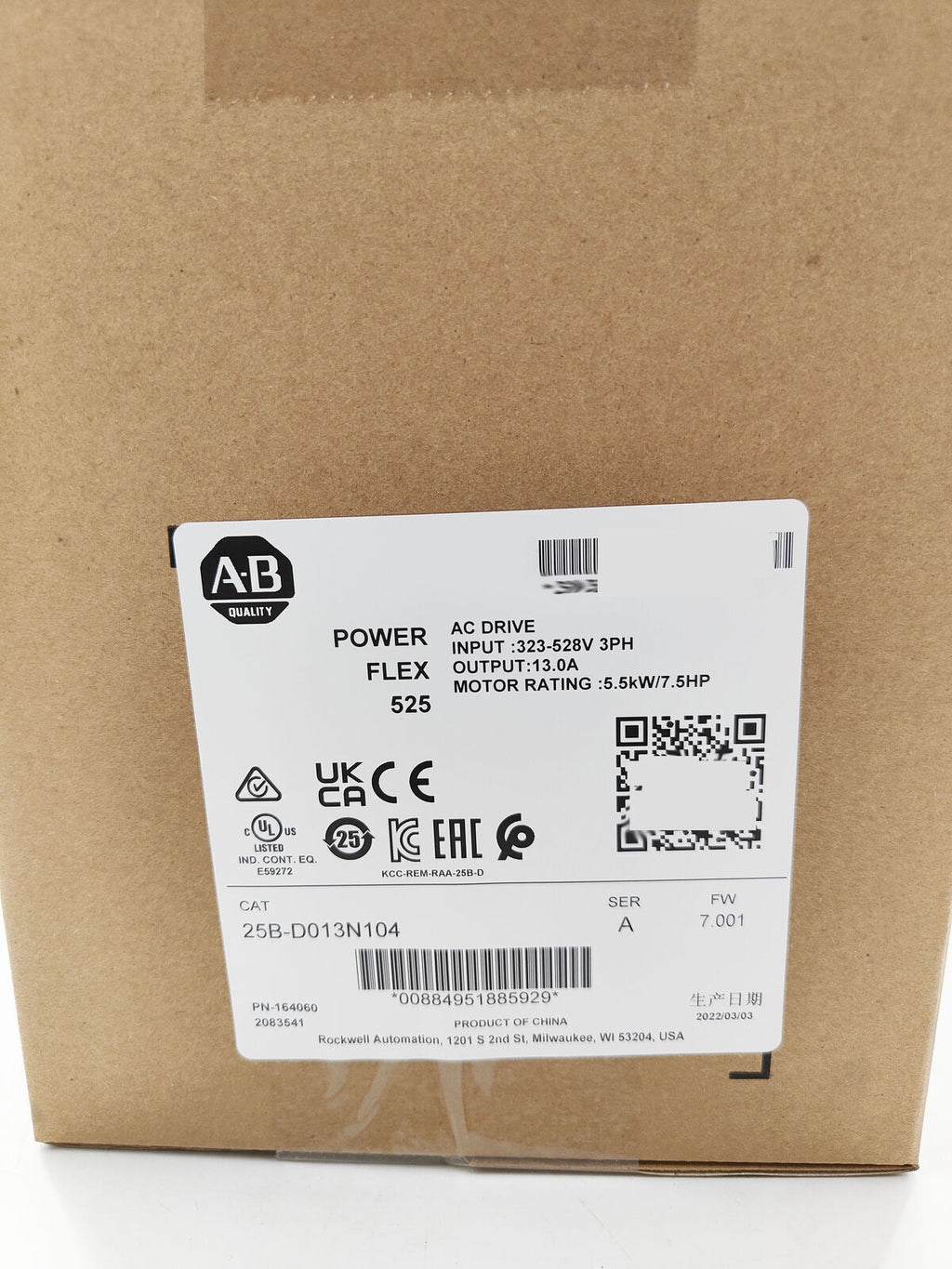

Product Description: Allen-Bradley 25B-D013N104

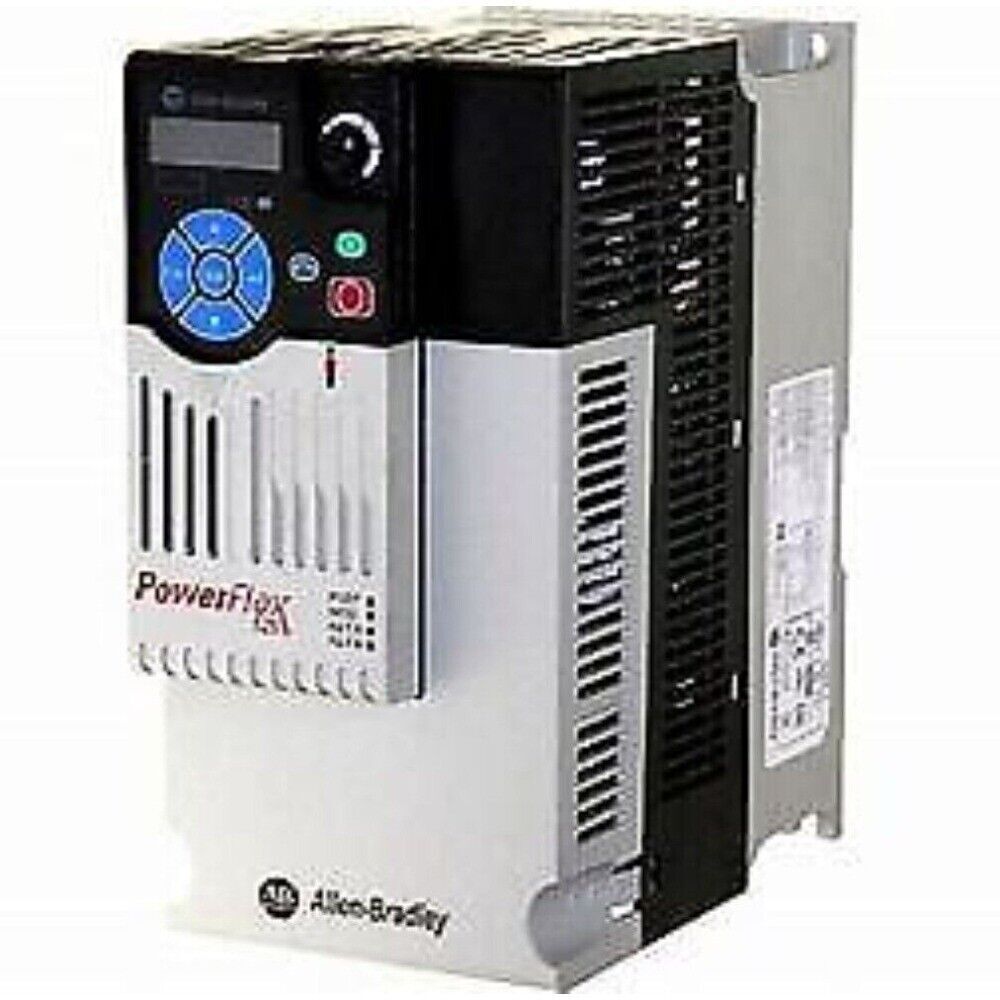

The Allen-Bradley 25B-D013N104 is a PowerFlex 525 variable frequency drive designed for controlling 3-phase AC motors rated at 5.5 kW (7.5 HP) and operating on a 380–480V AC supply. It features embedded EtherNet/IP and DSI communication, along with V/Hz and Sensorless Vector control modes for enhanced flexibility. With its compact IP20 open-type enclosure, integrated Safe Torque-Off (STO), and modular design, this drive is suitable for a wide range of light to medium-duty industrial applications.

Key Features

• Motor power rating: 5.5 kW (7.5 HP)
• Input voltage: 3-phase, 380–480V AC
• Output current: 13 A
• Embedded dual-port EtherNet/IP and DSI (RS-485)
• USB Type-B port for configuration and diagnostics
• Supports V/Hz, Sensorless Vector, and Economizer modes
• Integrated Safe Torque-Off (STO) safety function
• Detachable control module for easier maintenance and upgrades
• IP20 (NEMA Open Type) enclosure with DIN rail or panel mounting

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 13 A
• Frequency Range: 0–500 Hz
• Control Modes: V/Hz, Sensorless Vector, Closed-Loop PID
• Interfaces: 2 x EtherNet/IP, 1 x DSI (RS-485), 1 x USB Type-B
• Programming Tool: Connected Components Workbench (CCW)
• Enclosure Type: IP20 / NEMA Open Type
• Operating Temperature: -20°C to +50°C without derating

Application Areas

• Industrial pumps and fans
• Light-duty conveyors
• Machine tools and material handling systems
• HVAC and ventilation control
• General-purpose OEM equipment

Advantages

• Compact and modular design for flexible installation
• Integrated communication for simplified system integration
• Energy-efficient motor control with safety compliance
• Fast commissioning with USB and user-friendly software
• Seamless compatibility with Rockwell Automation architectures
