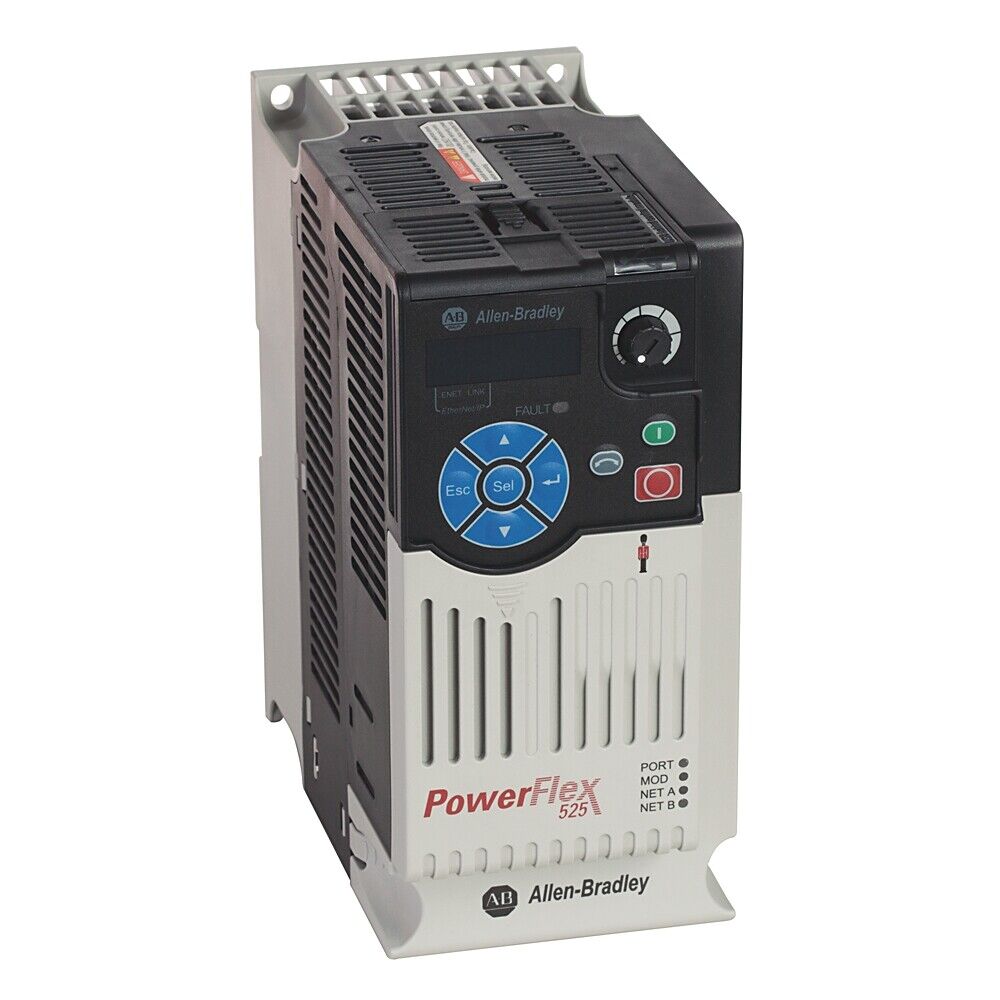

Allen-Bradley | 25B-D010N104 |PowerFlex 525

Product Description: Allen-Bradley 25B-D010N104

The Allen-Bradley 25B-D010N104 is a PowerFlex 525 series AC drive used for efficient variable speed control of three-phase induction and permanent magnet motors. It accepts a 380–480V AC, 3-phase input and provides a rated output current of 10.5 A, making it suitable for motors up to 4.0 kW (5 HP). Featuring integrated EtherNet/IP and Modbus-TCP communication, as well as Safe Torque-Off (STO), this drive delivers advanced functionality in a compact, panel-mountable Frame B enclosure.

Key Features

• 4.0 kW (5 HP) power rating
• 10.5 A output current
• 380–480V AC, 3-phase input voltage
• Built-in EtherNet/IP and Modbus-TCP communication
• Safe Torque-Off (STO) safety function
• Supports multiple control methods: V/Hz, Sensorless Vector, Closed Loop Velocity, Permanent Magnet Motor Control
• IP20 open-type enclosure
• Frame B size
• Integrated keypad with LED display and potentiometer
• Mounting options: panel or DIN rail

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Frequency Range: 0–500 Hz
• Rated Output Current: 10.5 A
• Power Factor: ≥ 0.98
• Operating Temperature: -20°C to +50°C (without derating)
• Enclosure Rating: IP20 (Open Type)
• Frame Size: B
• Communication Ports: EtherNet/IP, Modbus- TCP
• Safety Compliance: Safe Torque-Off (SIL2, PLd certified)
• EMC Filter: Integrated
• User Interface: Keypad with LED display and rotary potentiometer

Application Areas

• Conveyor belts and transfer systems
• Process pumps and blowers
• Food and beverage packaging equipment
• Industrial mixers and agitators
• OEM machine builders
• Energy-efficient drive solutions in manufacturing

Advantages

• Delivers strong motor control performance in a compact footprint
• Integrates communication and safety features, minimizing external components
• Flexible mounting and easy configuration
• Ideal for mid-range industrial applications
• High energy efficiency with advanced vector control modes
