Allen-Bradley | 25B-B5P0N104| PowerFlex 525

Product Description: Allen-Bradley 25B-B5P0N104

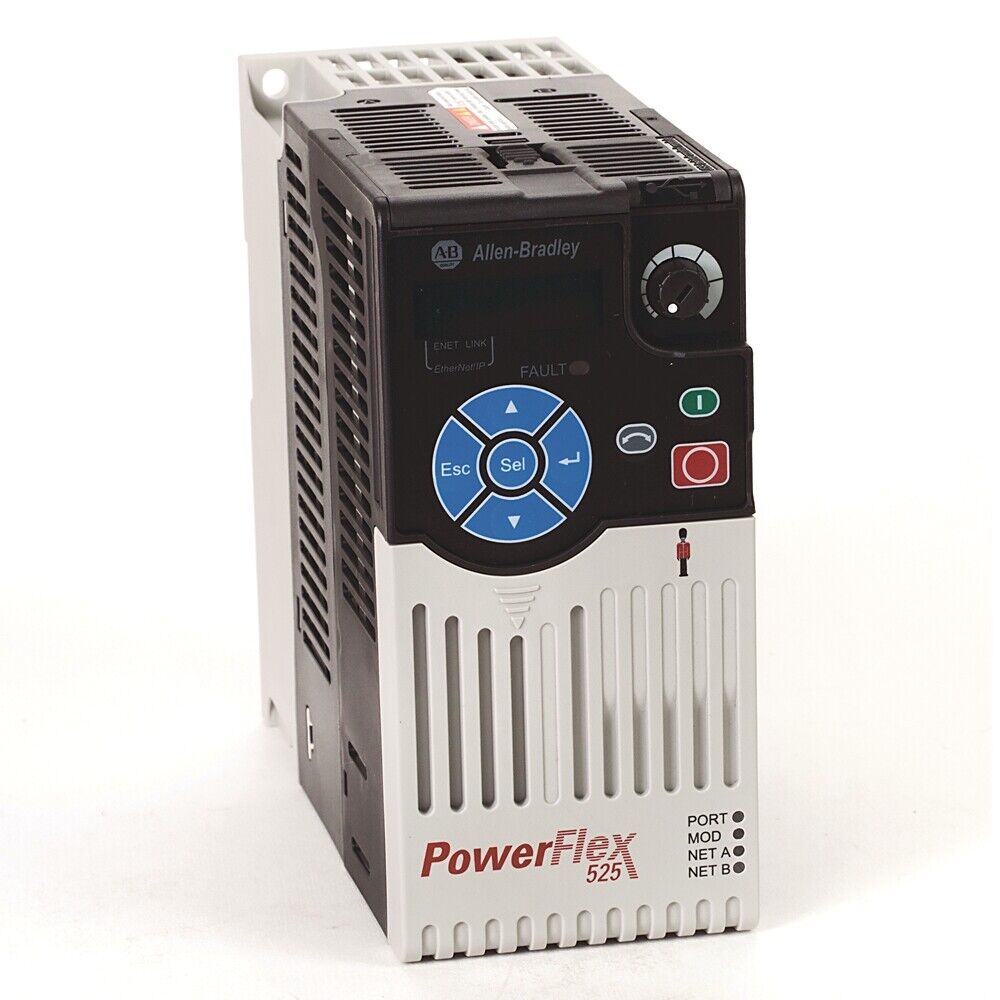

The Allen-Bradley 25B-B5P0N104 is a PowerFlex 525 AC drive, offering sensorless vector control and embedded EtherNet/IP for high- performance, network-integrated motor control. Designed for 3-phase 380–480V AC systems, it delivers up to 1.5 kW (2 HP) of output power at 5.0 A current. With compact dimensions and flexible mounting options, it supports machine- level speed and torque control in a wide range of industrial applications.

Key Features

• Input: 3-phase, 380–480V AC, 50/60 Hz
• Output Power: 1.5 kW (2 HP)
• Output Current: 5.0 A
• Integrated EtherNet/IP and Modbus TCP communication
• Embedded safety features: Safe Torque-Off (STO)
• Sensorless vector and V/Hz control modes
• DIN rail and panel mount options
• Removable control module and communication slots
• Built-in LCD keypad and USB configuration port

Technical Specifications

• Voltage Class: 480V AC
• Input Phase: 3-phase
• Output Frequency: 0–500 Hz
• Control Modes: V/Hz, Sensorless Vector Control
• Communication: EtherNet/IP, Modbus TCP (standard)
• I/O:
  • 5 digital inputs
• Protection Rating: IP20 (Open type)
• Ambient Temperature: -10°C to 50°C (up to 70°C with derating)
• Dimensions (HxWxD): Approx. 180 x 100 x 152 mm
• Certifications: UL, CE, cUL, TUV, EAC, RoHS

Application Areas

• Conveyors and packaging machines
• Pumps and fans
• Mixers and agitators
• Small compressors
• OEM equipment requiring networked motor control

Advantages

• Integrated Ethernet simplifies network integration
• Compact size with flexible mounting saves panel space
• Advanced motor control improves energy efficiency
• Safe Torque-Off improves machine safety compliance
• Modular design reduces maintenance and downtime
