Allen-Bradley | 25B-B017N104 | PowerFlex 525

Product Description: Allen-Bradley 25B-B017N104

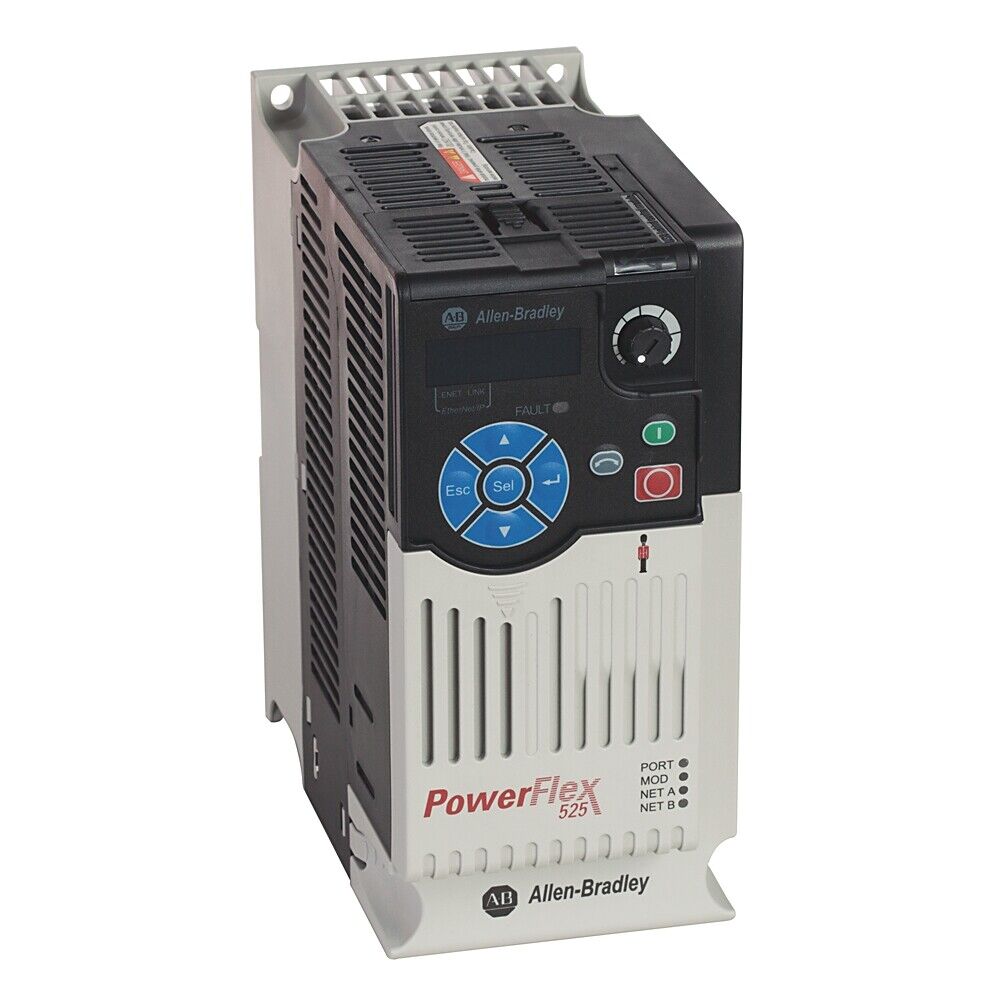

The Allen-Bradley 25B-B017N104 is a PowerFlex 525 AC drive designed for 3-phase motors operating at 200–240V AC input voltage. Rated at 5.5 kW (7.5 HP), it delivers reliable and efficient motor control for a wide range of industrial automation applications. This drive features embedded dual-port EtherNet/IP, DSI, USB programming, and supports Safe Torque-Off (STO) for enhanced safety. Its compact, modular architecture simplifies installation and maintenance.

Key Features

• Power rating: 5.5 kW (7.5 HP)
• Input voltage: 3-phase, 200–240V AC
• Output current: 17.5 A
• Embedded EtherNet/IP and DSI ports
• USB Type-B for easy configuration
• Supports V/Hz, Sensorless Vector, and Economizer control
• Integrated Safe Torque-Off (STO) safety function
• Detachable control module for flexible servicing
• IP20 NEMA Open Type enclosure

Technical Specifications

• Input Voltage: 3-phase, 200–240V AC
• Output Voltage: 0–240V AC
• Output Current: 17.5 A
• Frequency Range: 0–500 Hz
• Enclosure Rating: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Closed-Loop PID
• Communication Ports: 2 x EtherNet/IP
• Communication Ports: 1 x DSI (RS-485)
• Communication Ports: 1 x USB Type-B
• Programming Tool: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C without derating
• Mounting: DIN rail or panel mount

Application Areas

• Industrial fans, pumps, and compressors
• Material handling and conveyor systems
• Packaging machinery and automated lines
• HVAC control systems
• Light to medium-duty OEM equipment

Advantages

• Compact and modular design simplifies installation and maintenance
• Integrated network and safety features reduce external component needs
• Flexible motor control enhances process efficiency
• Easy setup and parameterization via USB and CCW
• Seamless integration into Rockwell Automation control systems
