Allen-Bradley | 25AD017N104 | PowerFlex 525
Request a Quote
Fill in the form and we will contact you shortly.
Product Description: Allen-Bradley 25A-D017N104

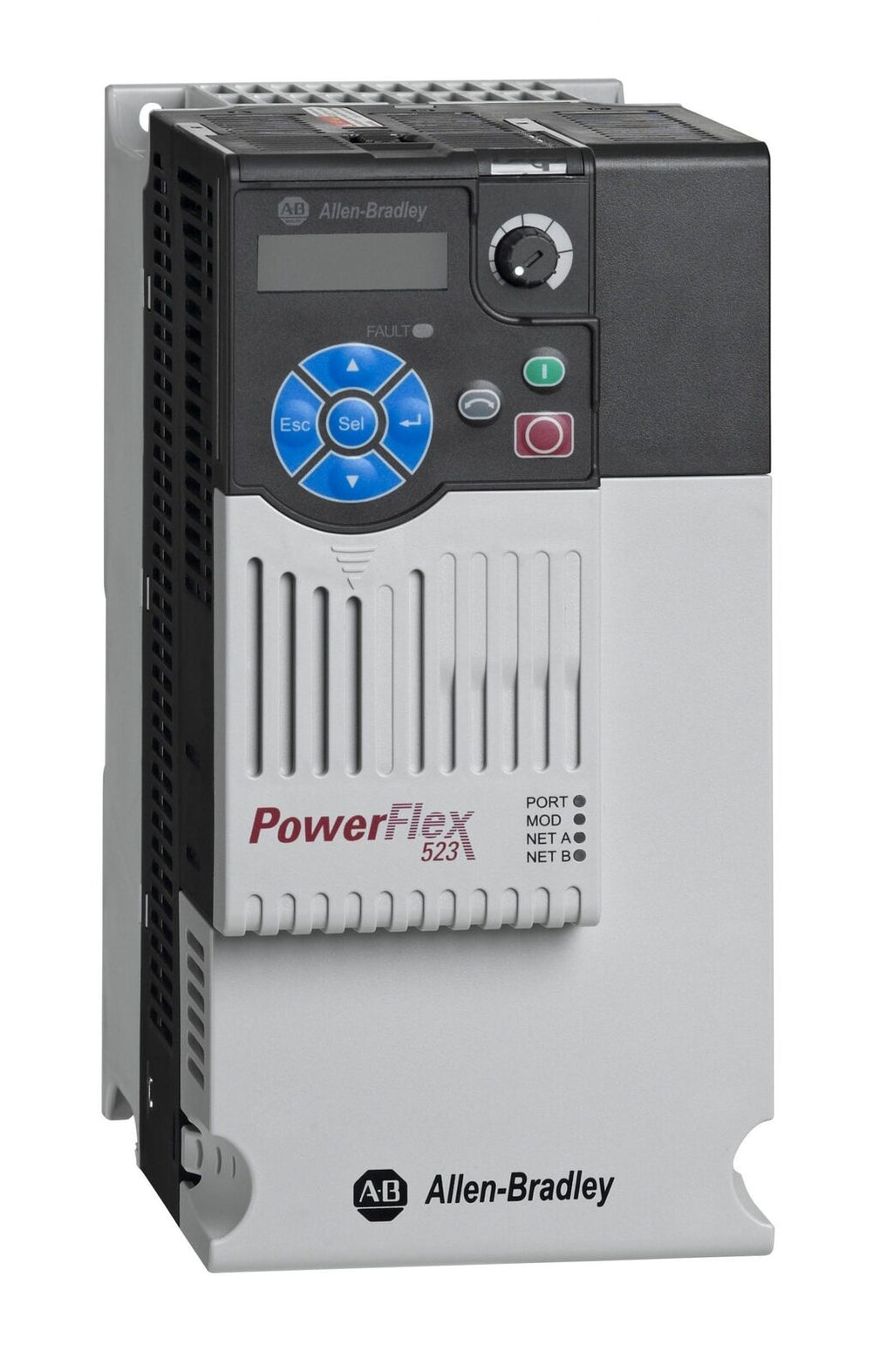

The Allen-Bradley 25A-D017N104 is a PowerFlex 525 AC drive engineered for variable speed control of three- phase induction motors. Rated for 7.5 HP (5.5 kW) at 480V AC and delivering 17.5 A output current , this drive offers a flexible, compact, and cost-effective solution for a wide range of industrial motor control applications. It includes built-in EtherNet/IP communication , Safe Torque-Off (STO) functionality, and supports both V/Hz and sensorless vector control methods.
Product Type
- Variable Frequency Drive (VFD)
- Series: PowerFlex 525
- Input: 3-phase, 380–480V AC
- Output: 17.5 A
- Motor Rating: 7.5 HP / 5.5 kW
- Enclosure: Open type (IP20 / NEMA 1 with kit)
Key Features
- Supports motor power up to 7.5 HP (5.5 kW)
- Rated output current: 17.5 A
- Input voltage: 3-phase, 380–480V AC
- Embedded dual-port EtherNet/IP communication
- Safe Torque-Off (STO) integrated for enhanced safety
- Compact footprint allows side-by-side installation
- Sensorless vector and V/Hz control for flexible motor performance
- Built-in USB port for easy configuration
- Removable control module for simplified maintenance
- Optional HIM (Human Interface Module) for local display and control
Technical Specifications
- Input Voltage: 380–480V AC, 3-phase
- Output Current: 17.5 A
- Frequency Range: 0–500 Hz
- Control Modes: V/Hz, Sensorless Vector Control
- Digital Inputs: 7
- Analog Inputs: 2
- Analog Outputs: 1
- Relay Outputs: 1 Form C
- Operating Temp: -20°C to 50°C (without derating)
- Protection Rating: IP20 (open-type), NEMA 1 with kit
- Communication: Embedded EtherNet/IP
- Certifications: UL, cUL, CE, RoHS
Application Areas
- Conveyors and material handling
- Pumps and fans
- HVAC systems
- Mixers and compressors
- Industrial machinery requiring speed and torque control
Advantages
- Advanced control in a compact design
- Embedded EtherNet/IP simplifies network integration
- Built-in safety features reduce additional component costs
- Quick installation and easy programming via USB or optional keypad
- Suitable for both standard and demanding motor control applications
