Allen-Bradley | 25A-D2P3N104 | PowerFlex 523

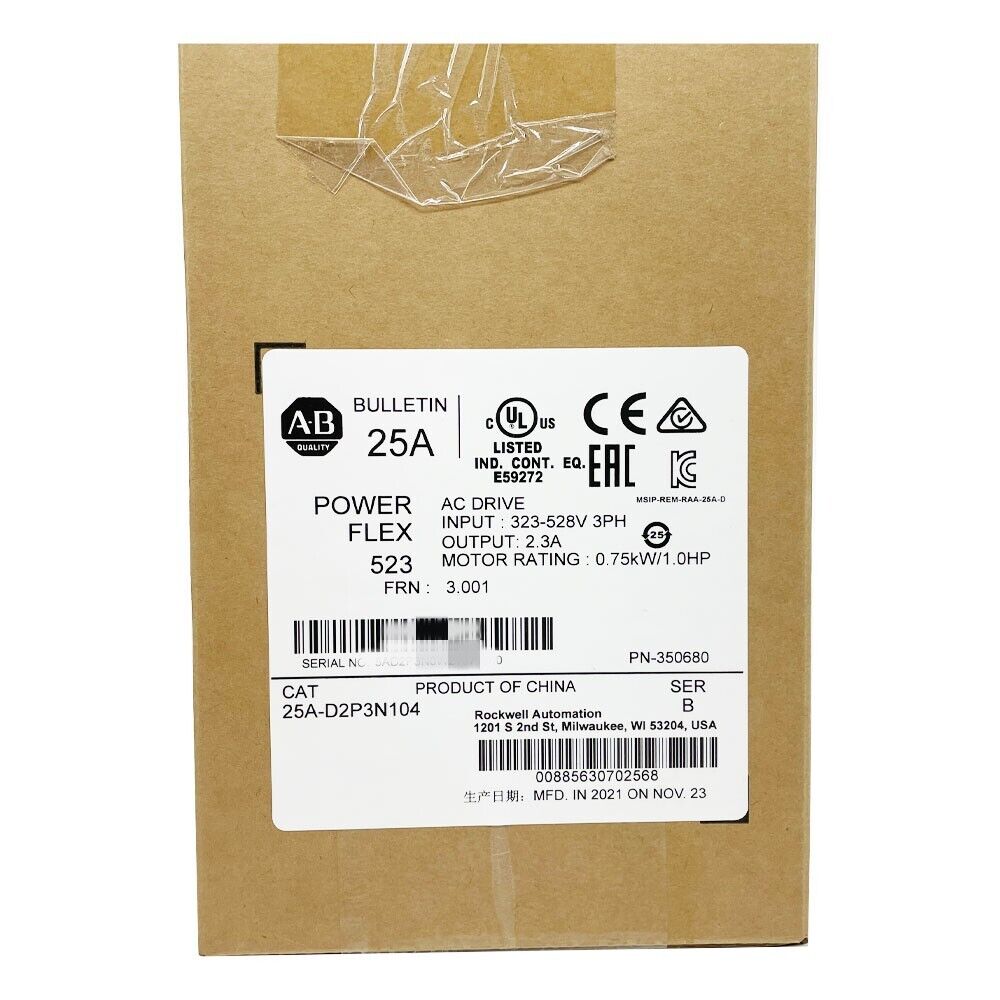

Product Description: Allen-Bradley 25A-D2P3N104

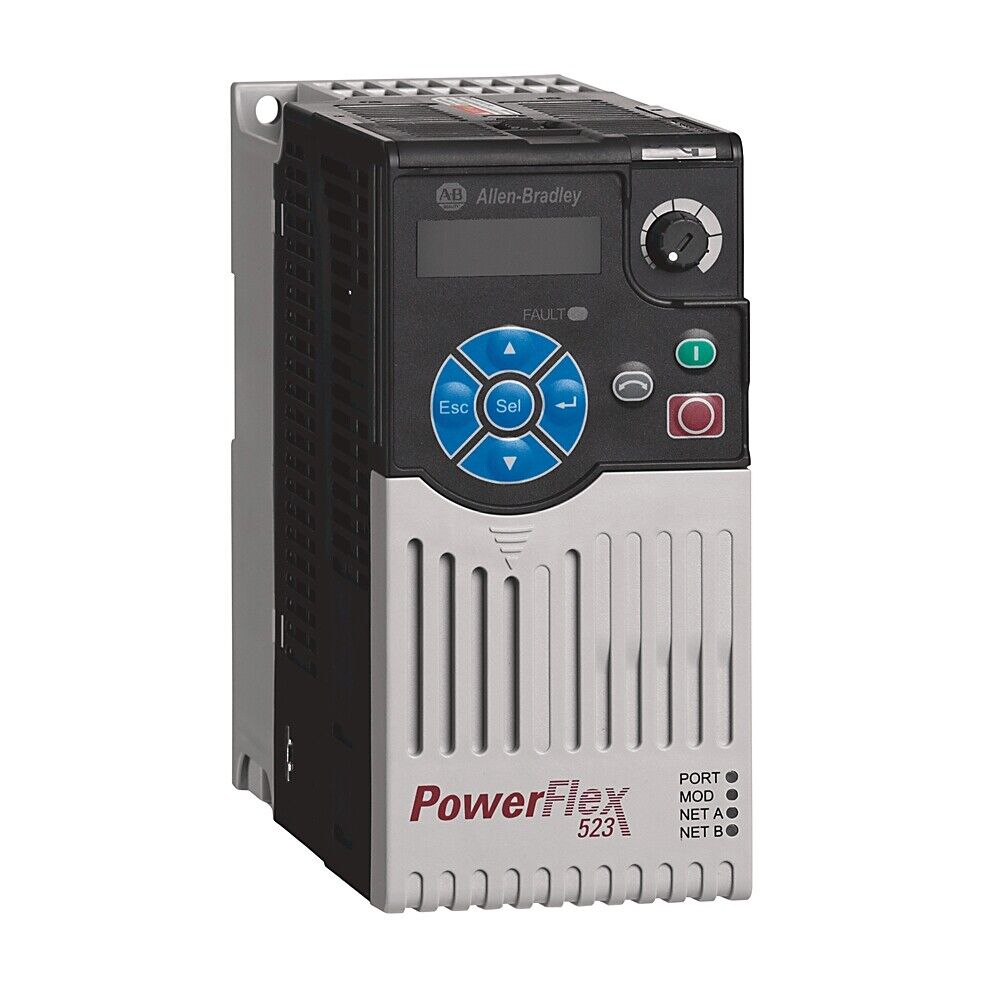

The Allen-Bradley 25A-D2P3N104 is a compact AC drive from the PowerFlex 523 series, engineered for cost-effective and dependable motor control. It is ideal for simple standalone machines and applications requiring basic speed regulation. With straightforward configuration and built-in RS-485 communication, it is an excellent solution for small OEM equipment and basic industrial automation tasks.

Key Features

• 0.75 kW (1 HP) power rating
• 380–480V AC, 3-phase input voltage
• Delivers up to 2.3 A output current
• Control modes: Volts per Hertz (V/Hz) and Sensorless Vector Control (SVC)
• Built-in RS-485 (Modbus RTU) communication
• Built-in braking IGBT for dynamic braking
• Compact Frame A design for tight spaces
• Integral keypad with LED display and speed control potentiometer
• IP20 / open-type enclosure

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Current: 2.3 A
• Frequency: 50/60 Hz
• Power Rating: 0.75 kW (1 HP)
• Power Factor: 0.98
• Operating Temperature: -20°C to +50°C (up to +70°C with derating)
• Dimensions (H x W x D): 152 mm x 72 mm x 172 mm
• Weight: Approximately 1.5 kg
• EMC Filter: Optional
• Communication: RS-485 (Modbus RTU)
• Certifications: CE, UL, cUL, TUV, RoHS

Application Areas

• Small conveyors
• Pumps and fans
• Simple material handling machines
• Food and beverage packaging systems
• OEM and standalone control panels

Advantages

• Economical solution for basic motor control
• Compact size reduces panel space requirements
• Integrated braking IGBT enhances stopping performance
• Easy to program and configure with onboard interface
• Built-in communication enables remote monitoring and control
