Allen-Bradley | 25A-D030N104 | PowerFlex 523

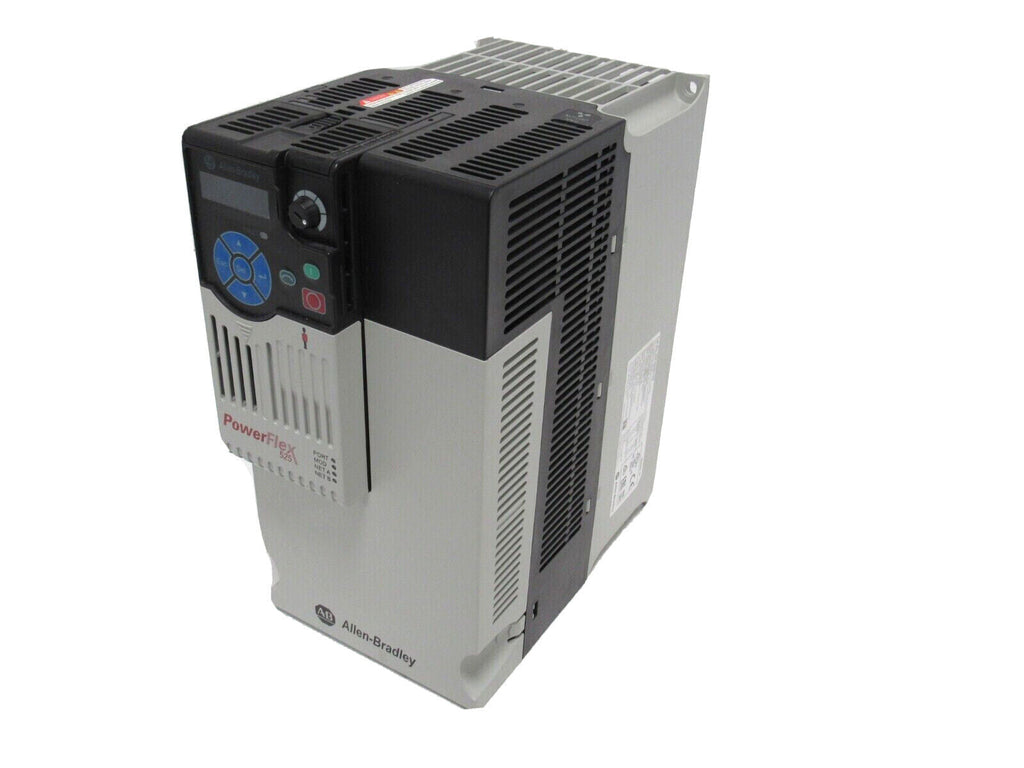

Product Description: Allen-Bradley 25A-D030N104 PowerFlex 523 AC drive

The Allen-Bradley 25A-D030N104 is a PowerFlex 523 AC drive designed for cost- effective and compact motor control applications. With a 15 kW (20 HP) power rating and a 3-phase 380–480V AC input, this model delivers reliable performance with support for V/Hz and Sensorless Vector control. Built for essential speed control tasks, the 25A-D030N104 is ideal for OEMs and end users who need straightforward, flexible drive solutions at a competitive cost.

Key Features

• Power rating: 15 kW (20 HP)
• Input voltage: 3-phase, 380–480V AC
• Output current: 30 A
• Control modes: V/Hz and Sensorless Vector
• Compact footprint for space-constrained panels
• Integrated RS-485 (DSI) communication
• USB Type-B port for configuration
• Detachable control module
• IP20 NEMA Open Type enclosure

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 30 A
• Frequency Range: 0–500 Hz
• Enclosure Type: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector
• Communication Ports:
  • 1 x DSI (RS-485)
• Programming Software: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C (without derating)
• Mounting: DIN rail or panel mount

Application Areas

• Pumps and fans
• Light-duty conveyors
• HVAC systems
• General-purpose machinery
• OEM machines with standard speed control needs

Advantages

• Cost-effective solution for essential motor control
• Compact, modular design reduces installation space and time
• Integrated communication for simplified network connection
• Easy configuration via USB and user-friendly CCW software
• Ideal for OEM applications requiring basic speed control with reliable performance
