Allen-Bradley | 25A-D024N104 | PowerFlex 523

Product Description: Allen-Bradley 25A-D024N104

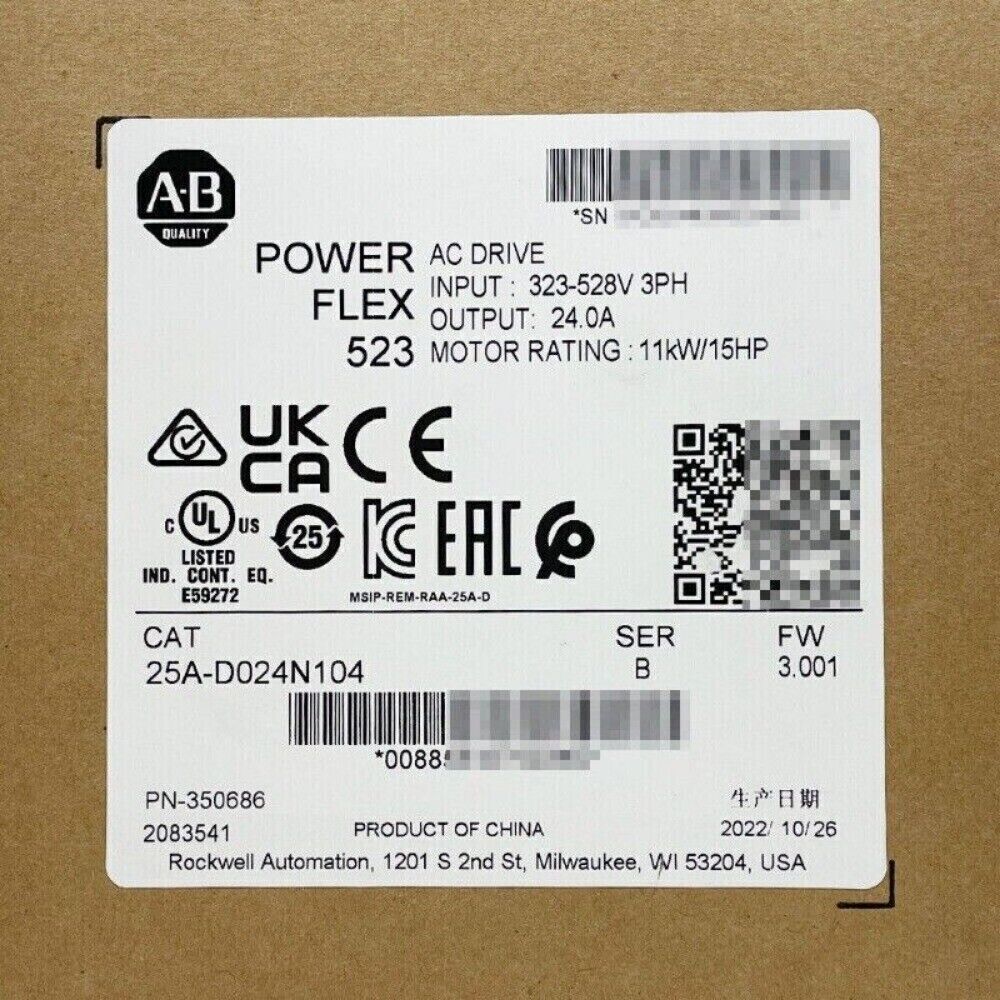

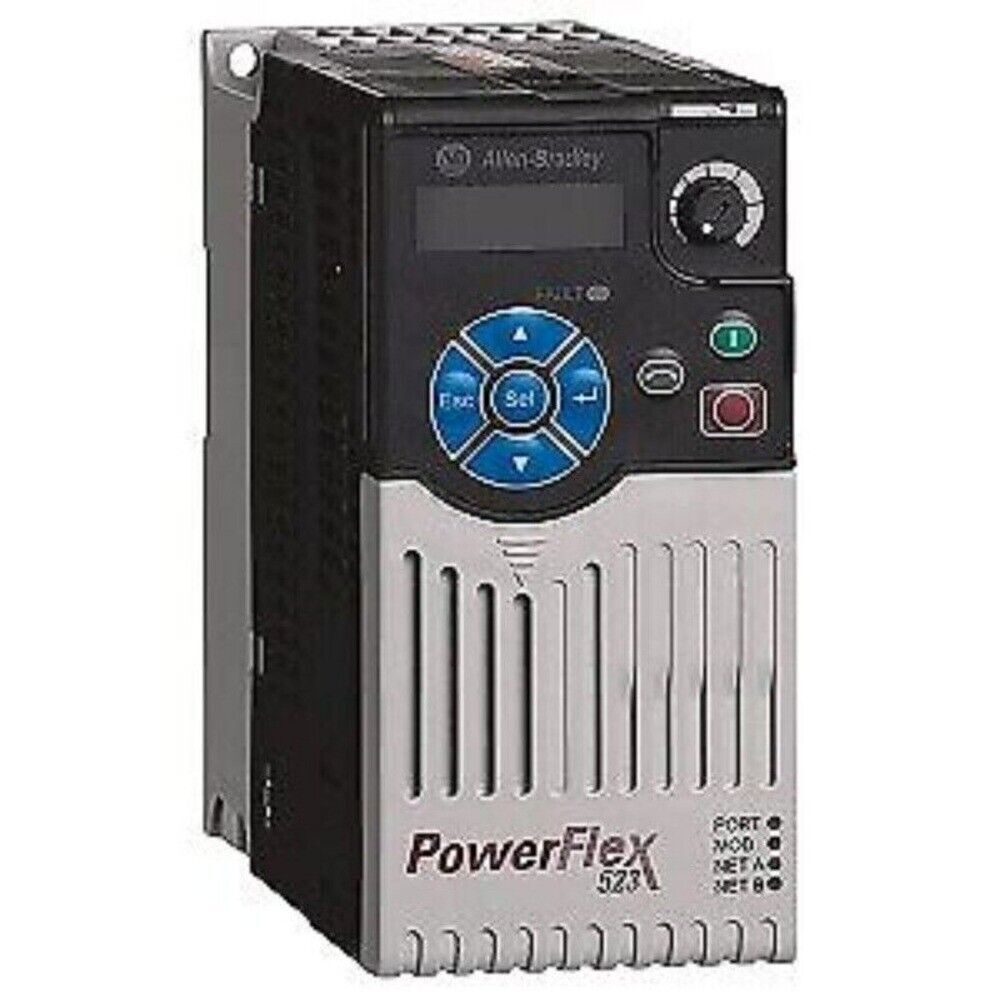

The Allen-Bradley 25A-D024N104 is a PowerFlex 523 AC drive rated for 11 kW (15 HP) motors, suitable for 3-phase 380–480V AC input. Designed for simplicity, cost efficiency, and reliable operation, this drive is ideal for OEM and end- user applications where basic speed control is needed. It supports both V/Hz and Sensorless Vector control and features integrated RS-485 (DSI) communication and USB configuration for quick setup and diagnostics.

Key Features

• 11 kW (15 HP) motor rating
• 3-phase input, 380–480V AC
• Output current: 24 A
• Control modes: V/Hz and Sensorless Vector
• Integrated RS-485 (DSI) port for serial communication
• USB Type-B port for fast configuration
• Compact, modular design
• IP20 NEMA Open Type enclosure
• Detachable control module for flexible maintenance

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 24 A
• Frequency Range: 0–500 Hz
• Enclosure Type: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector
• Communication Ports:
  • 1 x RS-485 (DSI)
• Programming Tool: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C without derating
• Mounting: DIN rail or panel mount

Application Areas

• Pumps and fans
• Conveyor systems
• HVAC and ventilation equipment
• General-purpose industrial machines
• OEM solutions requiring basic motor control

Advantages

• Simple and economical solution for standard VFD applications
• Compact design reduces panel space requirements
• Fast setup with intuitive USB configuration
• Integrated serial communication reduces wiring complexity
• Designed for easy installation, commissioning, and maintenance
