Allen-Bradley | 22B-D2P3N104 |PowerFlex 40 (22B Series)

Product Description: Allen-Bradley 22B-D2P3N104

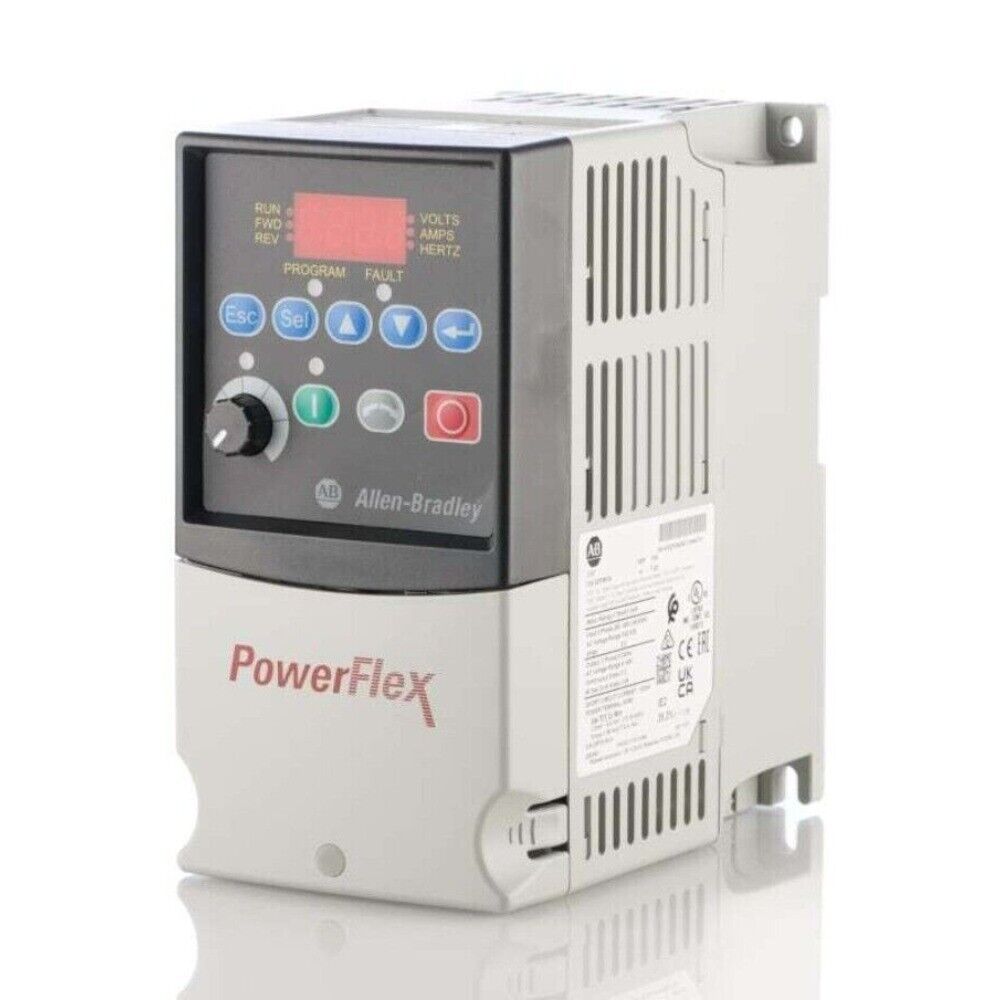

The Allen-Bradley 22B-D2P3N104 is a PowerFlex 40 AC drive designed for compact and efficient motor control in 3-phase industrial applications. Rated for 380–480V AC input, this drive delivers 2.3 A output current and supports motors up to 0.75 kW (1 HP). With standard sensorless vector control (SVC), integrated keypad, and Modbus RTU over RS-485, it offers a reliable and easy- to-deploy solution for general-purpose speed and torque regulation.

Key Features

• Input Voltage: 3-phase, 380–480V AC, 50/60 Hz
• Output Power: 0.75 kW (1 HP)
• Output Current: 2.3 A
• Control Modes: Volts/Hertz (V/Hz), Sensorless Vector Control (SVC)
• Integrated RS-485 Modbus RTU communication port
• Built-in 4-digit LED keypad for local operation and diagnostics
• IP20 open-type enclosure for cabinet-mounted installation
• Optional expansion modules for DeviceNet, EtherNet/IP, and Profibus

Technical Specifications

• Voltage Class: 480V
• Frequency Range: 0–400 Hz
• Output Current: 2.3 A
• Motor Rating: 0.75 kW (1 HP)
• I/O Capabilities:
  • 5 digital inputs
• Ambient Operating Temperature: -10°C to 50°C (up to 60°C with derating)
• Enclosure Type: IP20 (Open Type)
• Dimensions (HxWxD): Approx. 174 x 72 x 152 mm
• Certifications: UL Listed, CE, cUL, RoHS, Class I Div 2

Application Areas

• Fans and blowers
• Small pumps and conveyors
• Light- duty mixing equipment
• Packaging and labeling machinery
• OEM applications with compact panel design

Advantages

• Economical and compact solution for basic motor control
• Enhanced torque performance with SVC control
• Integrated keypad and diagnostics simplify setup
• Built-in RS-485 reduces wiring and supports remote communication
• Modular communication options allow system expansion and integration
