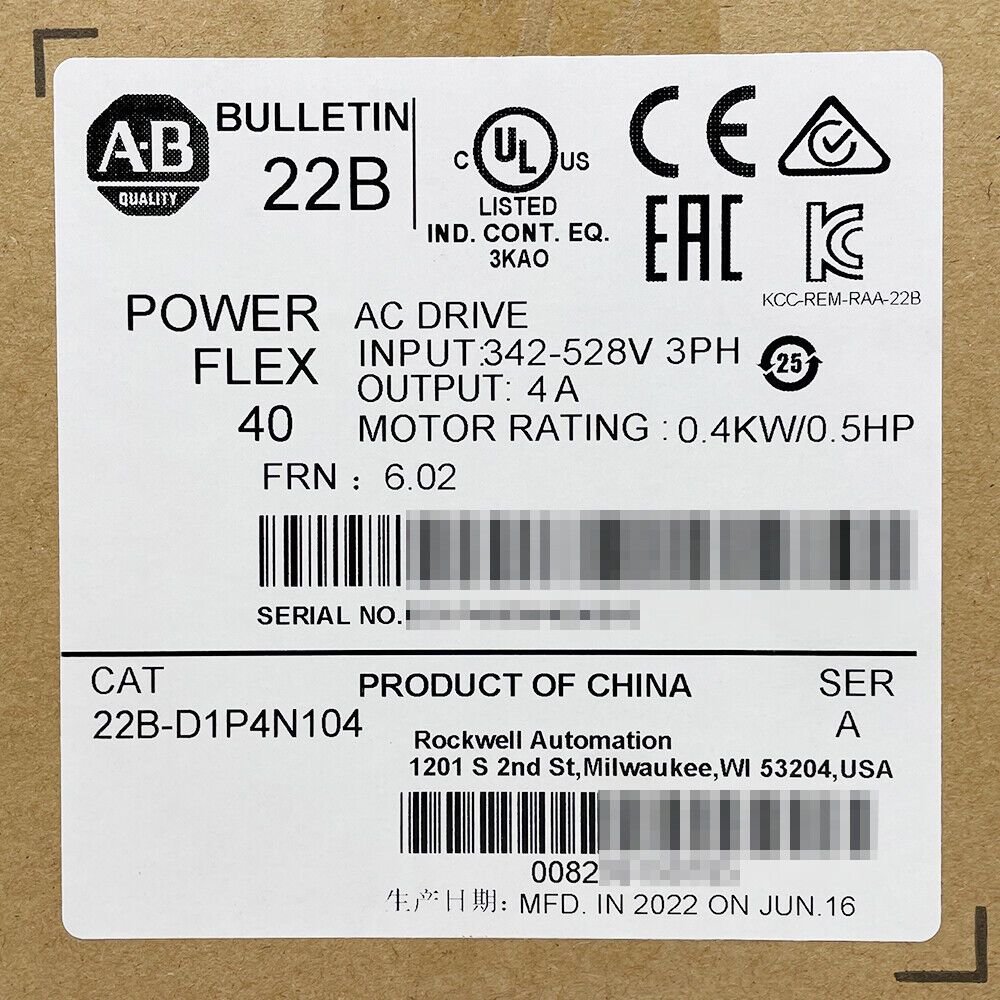

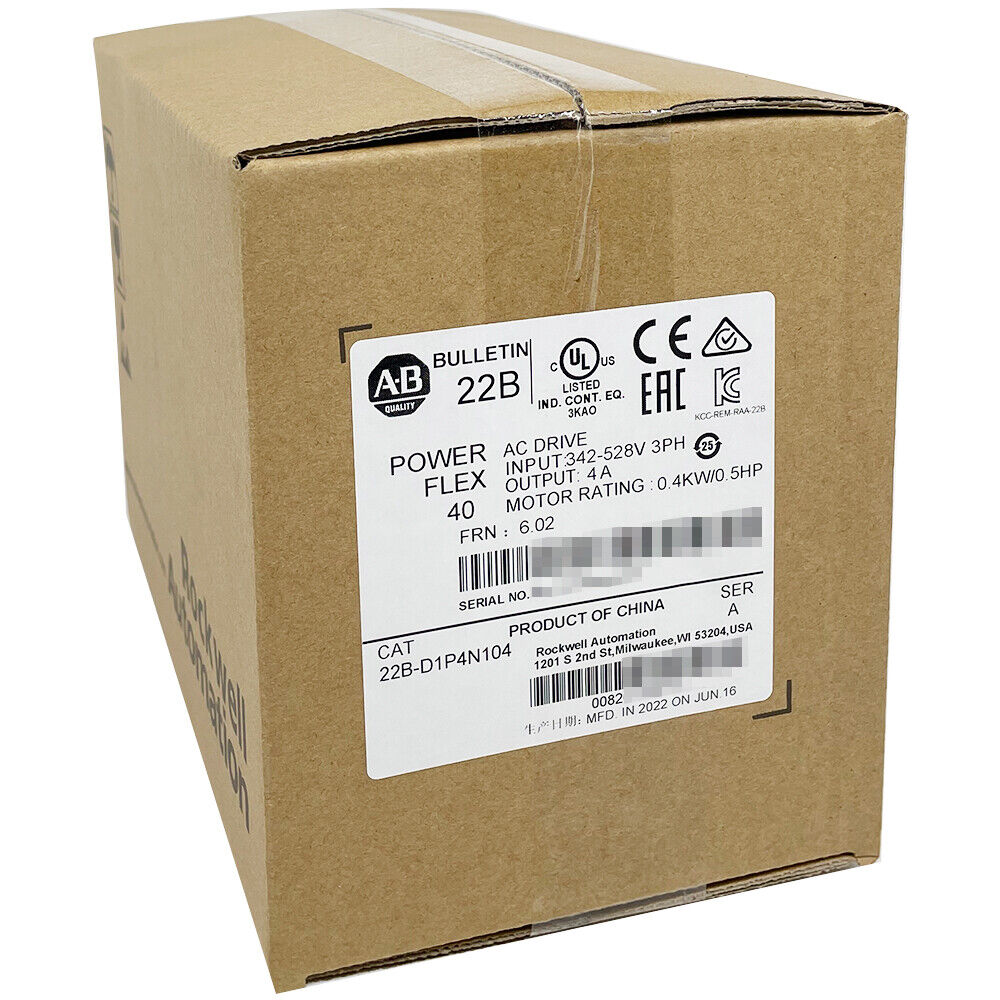

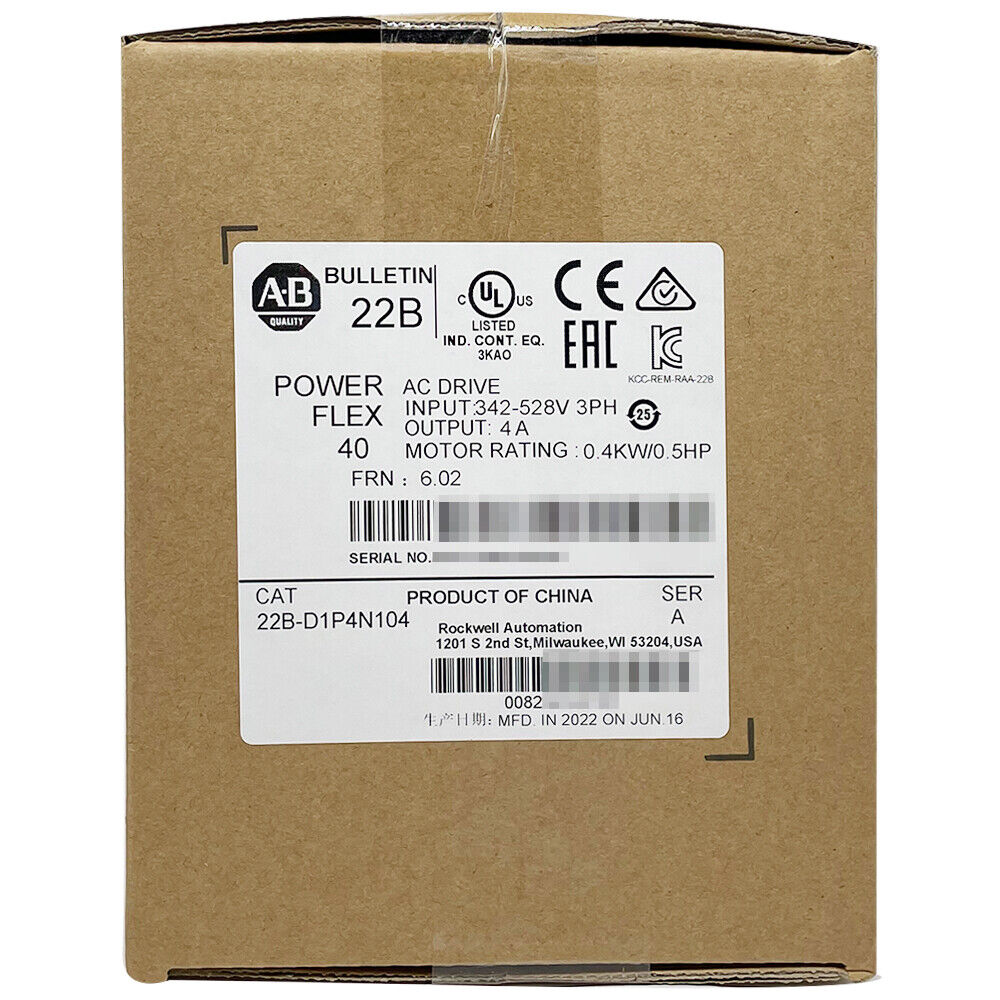

PowerFlex 40 | Allen-Bradley | 22B-D1P4N104 PowerFlex 40 AC Drive New 2022 22BD1P4N104

Product Description: Allen-Bradley 22B-D1P4N104

The Allen-Bradley 22B-D1P4N104 is a compact AC drive from the PowerFlex 40 series, designed for general-purpose motor control in industrial environments. With its user-friendly interface and sensorless vector control, it delivers reliable and precise speed regulation for small motors. Ideal for applications requiring basic performance, space efficiency, and simplified setup.

Key Features

• 0.37 kW (0.5 HP) motor power
• 380–480V AC, 3-phase input
• Output current up to 1.4 A
• Control modes: Volts per Hertz (V/Hz) and Sensorless Vector Control (SVC)
• Built-in RS-485 (Modbus RTU) communication
• Integral keypad with LED display and speed control
• Dynamic braking IGBT included
• NEMA / IP20 open-type enclosure
• DIN rail or panel mounting options
• Frame size: A (smallest in series)

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Current: 1.4 A
• Frequency Range: 0–400 Hz
• Power Factor: 0.96
• Power Rating: 0.37 kW (0.5 HP)
• Operating Temperature: -10°C to +50°C (up to +60°C with derating)
• Dimensions (H x W x D): 152 mm x 72 mm x 172 mm
• Weight: Approximately 1.3 kg
• Communication: RS-485 (Modbus RTU)
• Certifications: UL, CE, cUL, C-Tick, RoHS

Application Areas

• Small machine automation
• Pumps and ventilation fans
• Light-duty conveyors
• Simple mixing and dosing equipment
• OEM equipment panels

Advantages

• Compact and cost-effective motor control solution
• Easy to set up and operate
• Integrated braking transistor for quick stops
• Built-in communication minimizes wiring
• Suitable for a wide range of basic industrial applications
