PowerFlex 40 | Allen-Bradley | 22B-D024N104 PowerFlex 40 Variable Frequency Drive

Product Description: Allen-Bradley 22B-D024N104

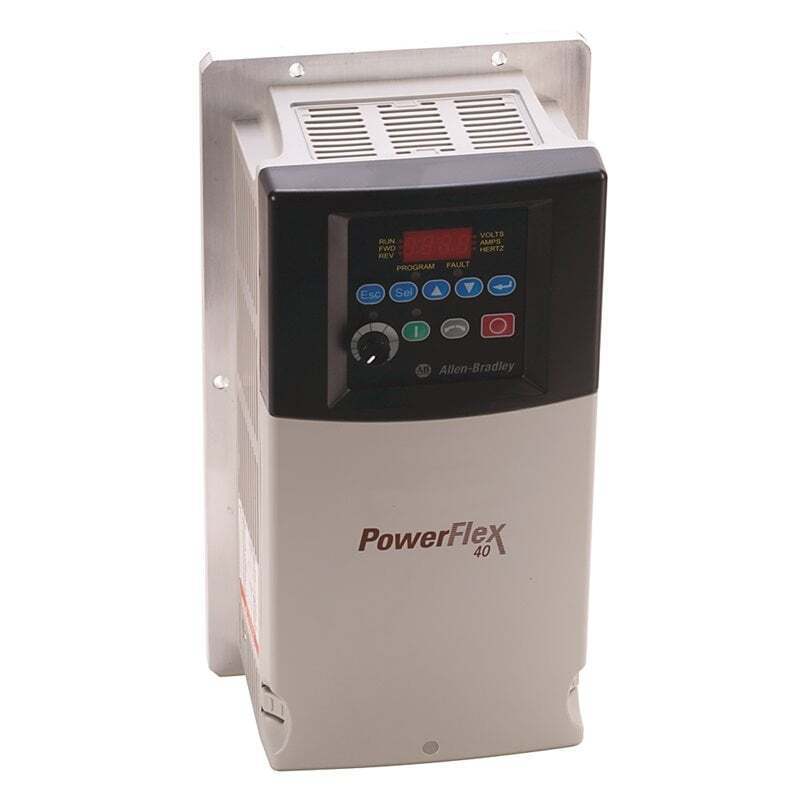

The Allen-Bradley 22B-D024N104 is a PowerFlex 40 series AC drive, engineered for general-purpose motor control in a compact design. With a current rating of 24A and power output of 10 HP at 480V, it is well-suited for applications that require consistent, efficient, and space- saving variable speed motor control.

Key Features

• Sensorless Vector Control and Volts-per-Hertz (V/Hz) operation
• Built-in RS485 (DSI) communication
• Integral keypad for local programming and monitoring
• Optional communication support: DeviceNet, EtherNet/IP, Profibus, etc.
• Dynamic braking capability
• Flying start, S-curve profiling, and acceleration/deceleration control
• Configurable digital and analog I/O

Technical Specifications

• Input Voltage: 3-phase, 480V AC
• Output Current: 24 Amps
• Power Rating: 10 HP (Horsepower)
• Frequency Range: 0–400 Hz
• Enclosure Type: Open Type (IP20 / NEMA 1 with kit)
• Frame Size: Frame C
• Control Modes: V/Hz, Sensorless Vector
• Operating Temperature: -10°C to +50°C
• Dimensions (HxWxD): approx. 260 x 130 x 180 mm
• Weight: approx. 4.2 kg

Application Areas

• Packaging and material handling machinery
• Fans, pumps, and conveyors
• Small-scale industrial process control
• OEM machines requiring compact motor drives
• Food and beverage processing equipment

Advantages

• Economical and compact solution for general-purpose drives
• Easy installation and configuration
• Energy-efficient operation with vector control
• Flexible I/O and communication options for system integration
• Proven reliability in light to medium-duty motor control environments
