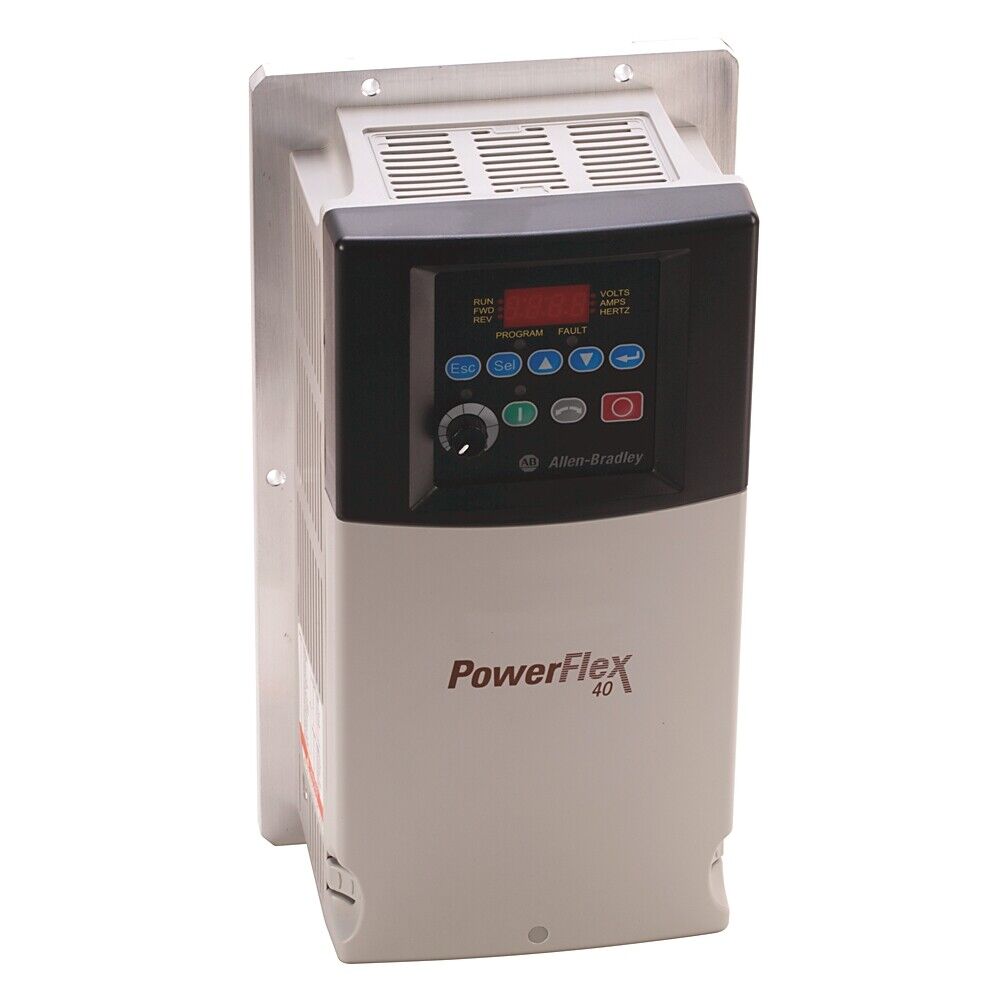

  • Allen-Bradley PowerFlex 40 AC drive with display and control panel, showing RUN, FWD, REV, and fault status.

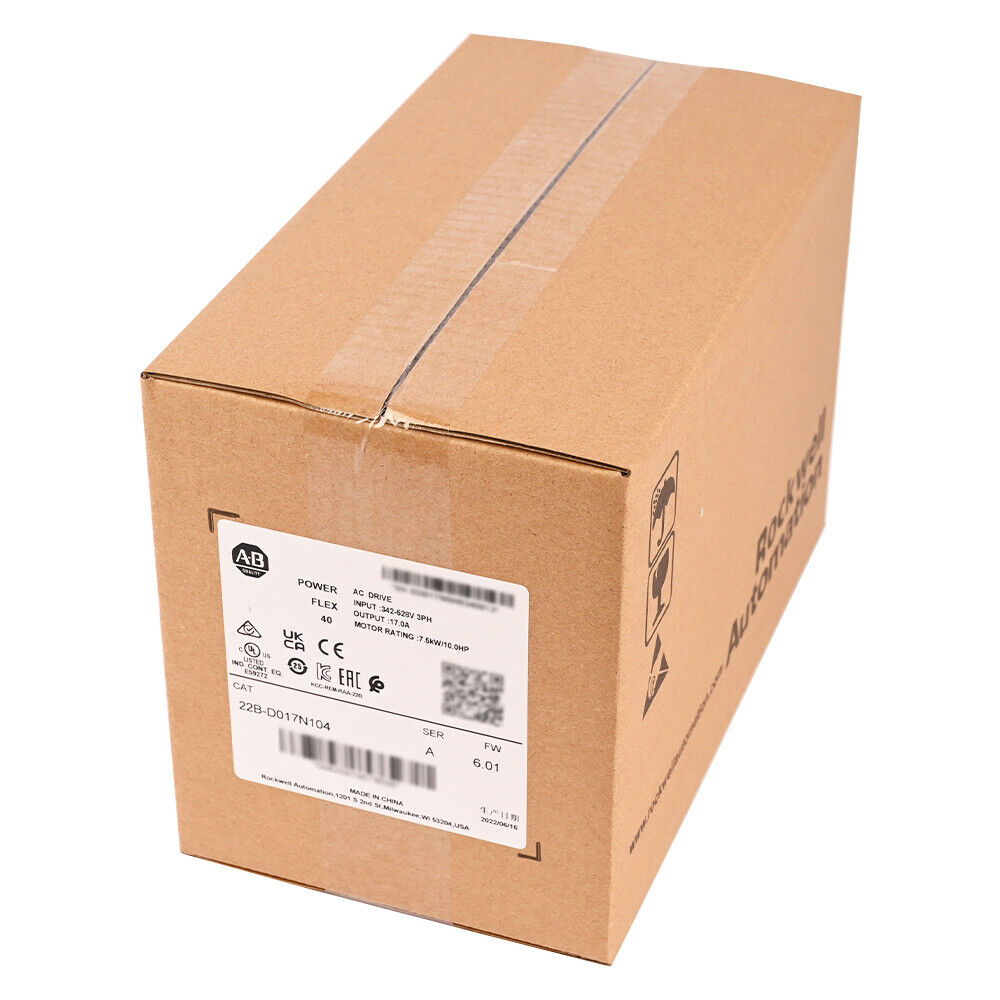

  • Allen-Bradley PowerFlex 40 AC drive, model 22B-D017N104, in packaging. Includes specifications label.

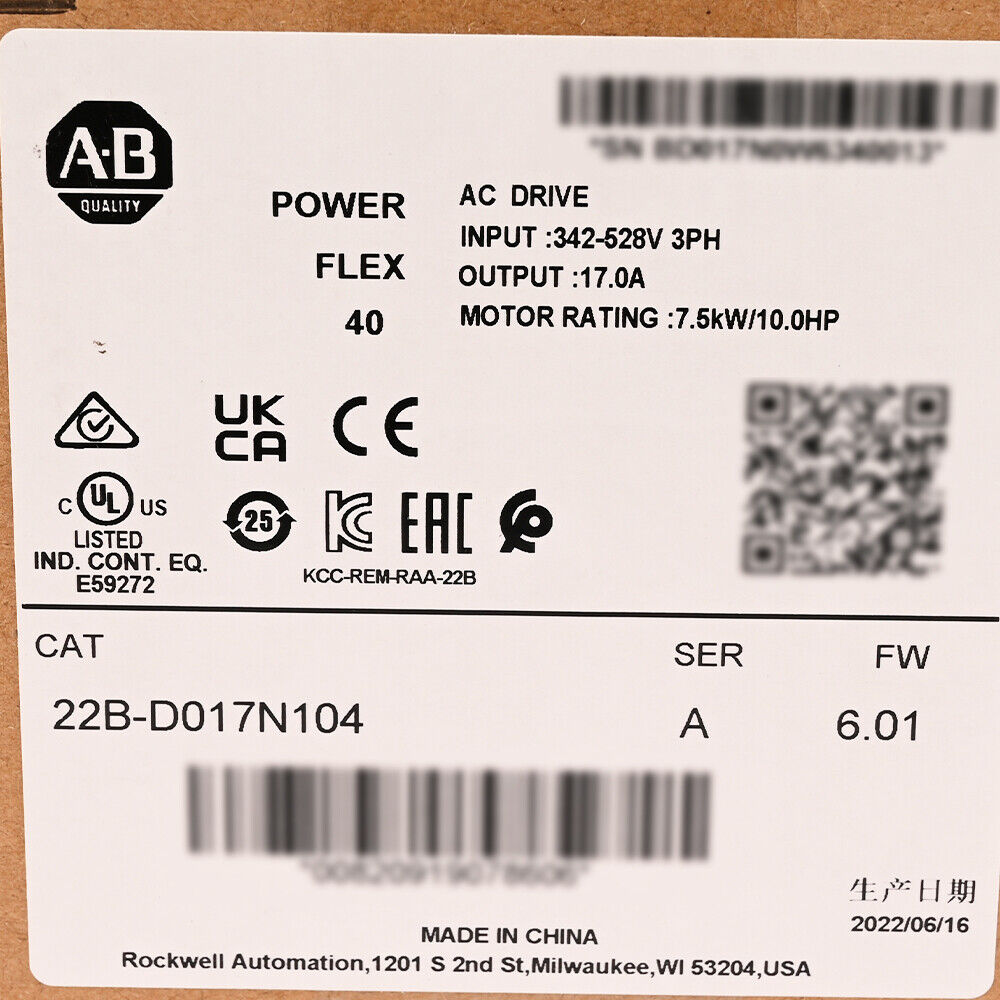

  • PowerFlex 40 AC drive label. Allen-Bradley 22B-D017N104 specifications. Industrial automation part.

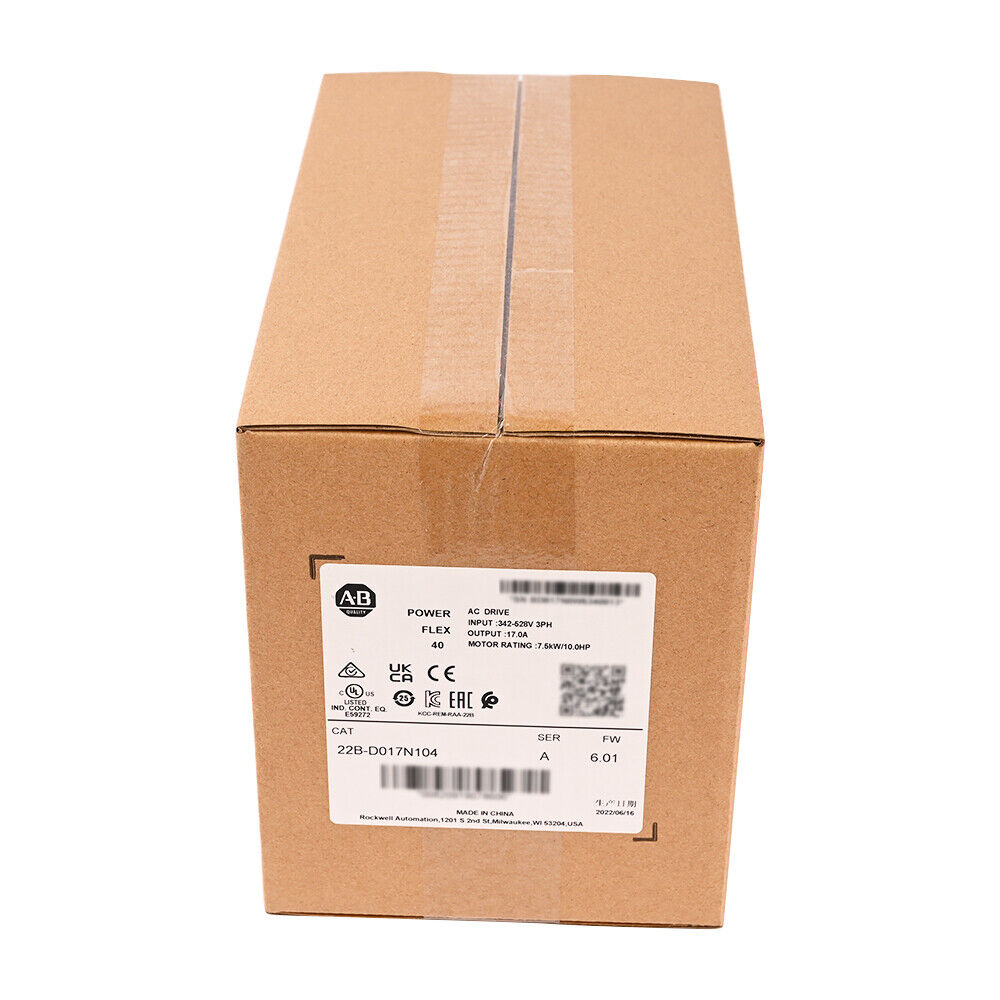

  • Allen-Bradley PowerFlex 40 AC drive in packaging, model 22B-D017N104. 7.5kW 10 HP motor control.

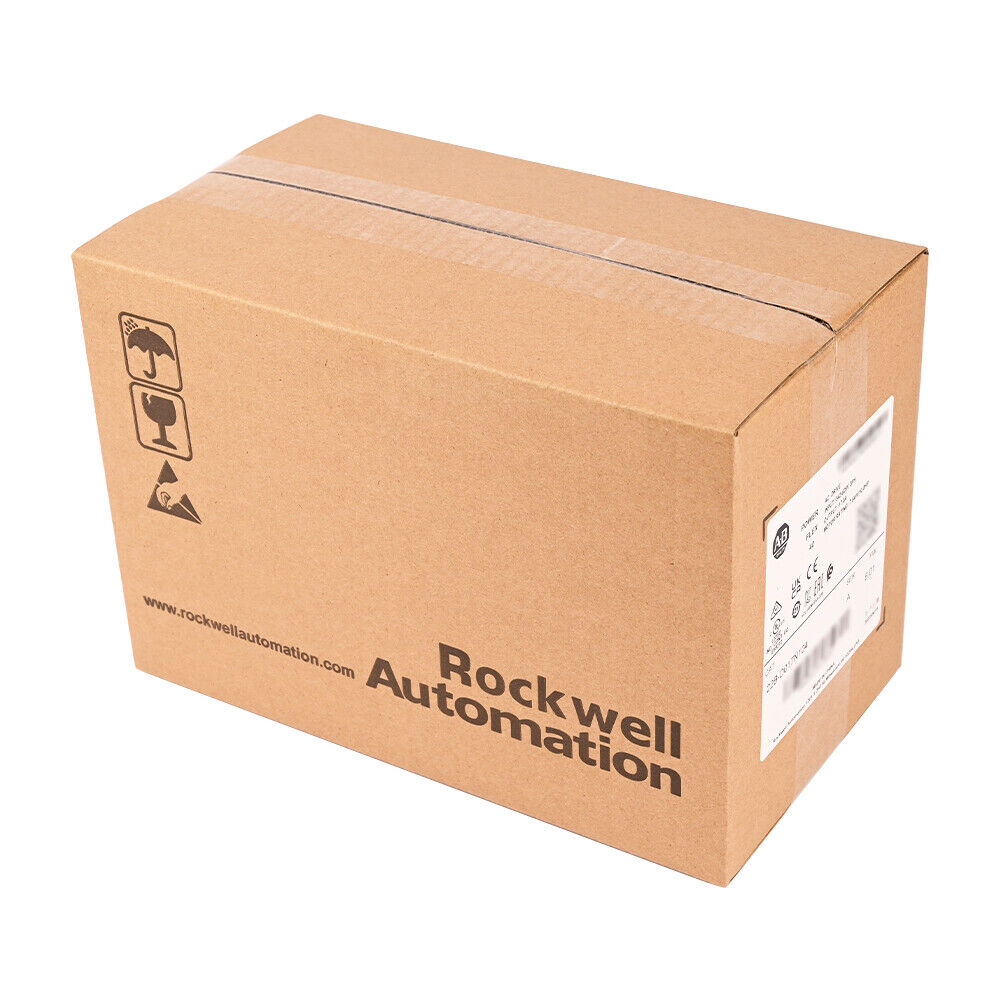

  • Allen-Bradley PowerFlex 40 AC drive in box, Rockwell Automation packaging. Includes specifications label. 22B-D017N104
Allen-Bradley | 22B-D017N104 |PowerFlex 40

Allen-Bradley | 22B-D017N104 |PowerFlex 40

Request a Quote

Fill in the form and we will contact you shortly.

Product Description: Allen-Bradley 22B-D017N104

The Allen-Bradley 22B-D017N104 is part of the PowerFlex 40 series of compact AC drives designed for general-purpose motor control applications. With an output current rating of 17.5 Amps and a power capacity of 7.5 HP at 480V, this drive delivers reliable performance and ease of integration in space- limited industrial control environments.

Key Features

  • Supports Volts-per-Hertz (V/Hz) and Sensorless Vector Control (SVC)
  • Embedded RS-485 (DSI) communication interface
  • Optional support for DeviceNet, EtherNet/IP, Profibus, and more via adapters
  • Dynamic braking support with optional braking resistor
  • Integral keypad with LED display and intuitive navigation
  • Configurable analog and digital I/O for flexible application use
  • Flying start, PID control, and S-curve acceleration/deceleration

Technical Specifications

  • Input Voltage: 3-phase, 480V AC
  • Output Current: 17.5 Amps
  • Power Rating: 7.5 HP (Horsepower)
  • Frequency Range: 0–400 Hz
  • Enclosure Type: Open Type (IP20), convertible to NEMA 1 with kit
  • Frame Size: Frame C
  • Control Modes: V/Hz, Sensorless Vector
  • Operating Temperature: -10°C to +50°C
  • Dimensions (HxWxD): approx. 260 x 130 x 180 mm
  • Weight: approx. 4.0 kg

Application Areas

  • Fans, blowers, and small pump systems
  • Conveyors and sorting lines
  • Packaging and bottling machinery
  • Light-duty industrial processing equipment
  • OEM machinery requiring compact and reliable drives

Advantages

  • Space-saving design ideal for compact control panels
  • Quick setup with default parameter groups for standard applications
  • Energy- efficient motor control with advanced acceleration profiles
  • Expandable communication options for flexible network integration
  • Proven reliability and performance in general-purpose use cases
