Allen-Bradley | 22B-D012N104 | PowerFlex 40

Product Description: Allen-Bradley 22B-D012N104

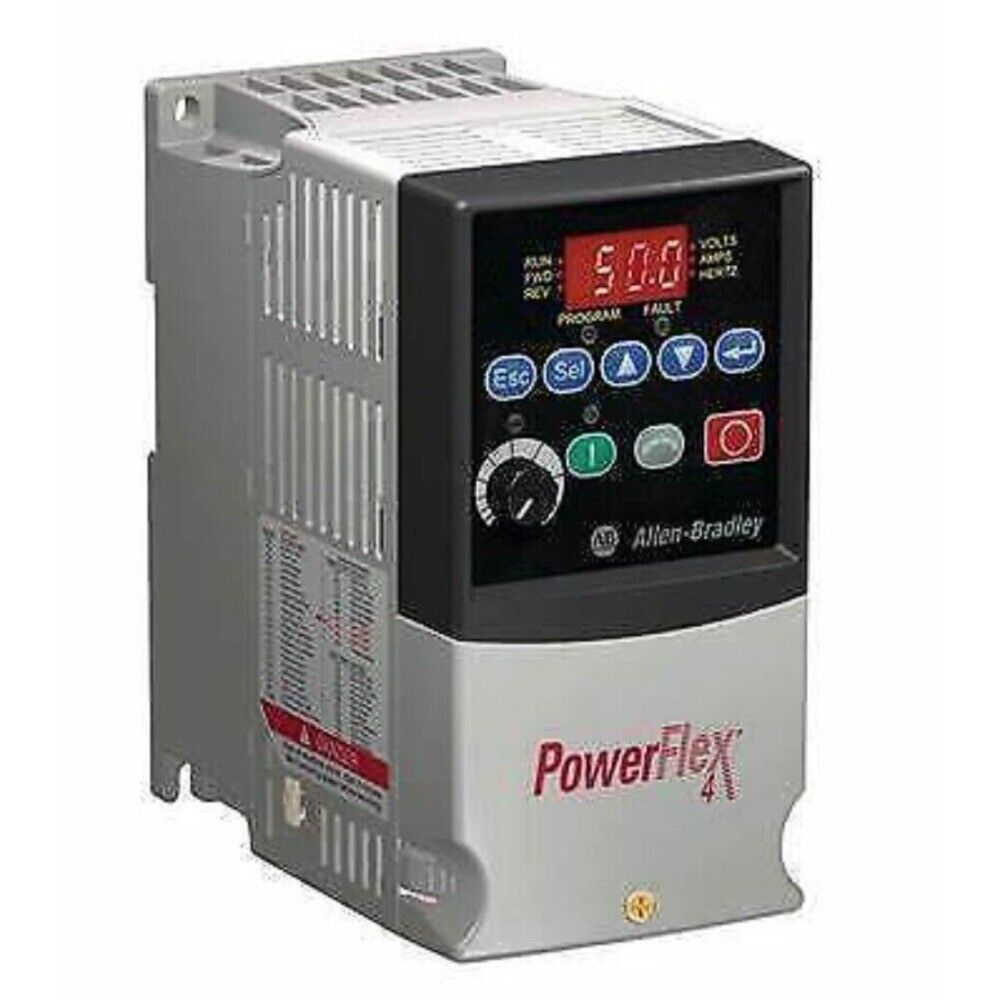

The Allen-Bradley 22B-D012N104 is a PowerFlex 40 AC drive designed for compact, general-purpose motor control applications. Rated at 12 Amps output and capable of driving motors up to 5 HP at 480V, this drive combines simplicity, flexibility, and performance in a small footprint ideal for OEM and industrial users.

Key Features

• Supports Volts-per-Hertz (V/Hz) and Sensorless Vector Control (SVC)
• Integrated RS-485 (DSI) communication port
• Optional communication modules: EtherNet/IP, DeviceNet, Profibus, and others
• Flying start, PID control, dynamic braking support
• Built-in keypad with LED display for local setup and monitoring
• Programmable analog and digital I/O
• Optional NEMA 1 enclosure kit

Technical Specifications

• Input Voltage: 3-phase, 480V AC
• Output Current: 12 Amps
• Power Rating: 5 HP (Horsepower)
• Frequency Range: 0–400 Hz
• Enclosure Type: Open Type (IP20), convertible to NEMA 1
• Frame Size: Frame B
• Control Modes: V/Hz, Sensorless Vector
• Operating Temperature: -10°C to +50°C
• Dimensions (HxWxD): approx. 220 x 100 x 180 mm
• Weight: approx. 3.3 kg

Application Areas

• Small fans and pumps
• Conveyors and feeders
• OEM machine control
• Light-duty packaging equipment
• Compact automation systems

Advantages

• Compact and economical solution for general motor control
• Simple integration with built-in networking and parameter setup
• Enhanced energy efficiency through vector control and smart functions
• Flexible I/O and optional communication interfaces
• Reliable and maintenance-friendly performance in industrial settings
