Allen-Bradley | 22AD2P3N104 | PowerFlex 4 (22A Series)

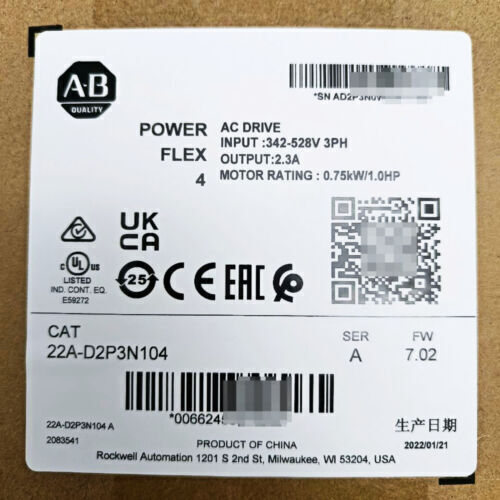

Product Description: Allen-Bradley 22A-D2P3N104

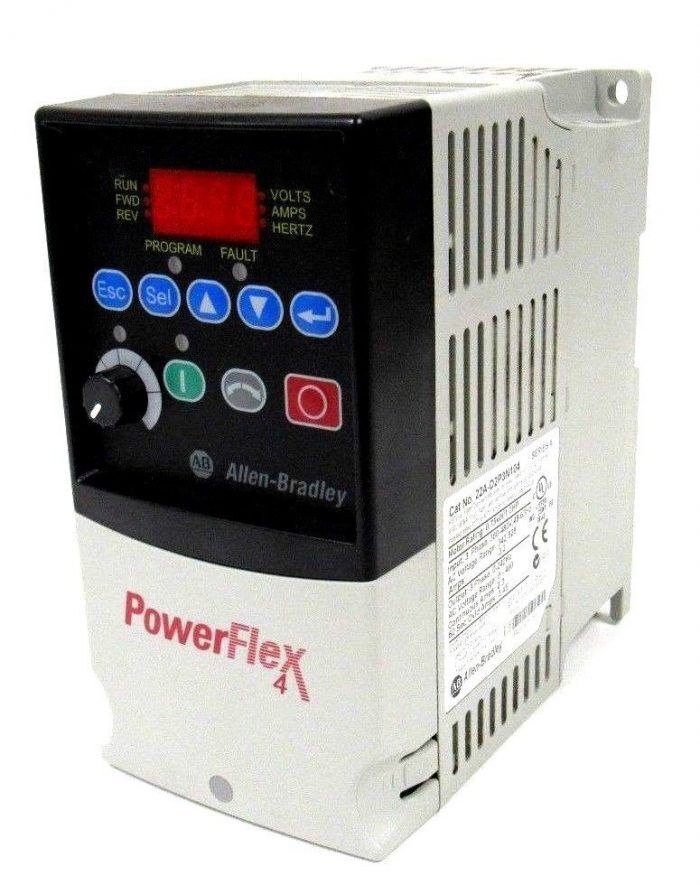

The Allen-Bradley 22A-D2P3N104 is a PowerFlex 4 AC drive designed for basic variable speed control of standard 3-phase induction motors. With a 3-phase 380–480V AC input and 2.3 A output capacity, it supports motors rated up to 0.75 kW (1 HP). Its simple configuration, integrated keypad, and compact IP20 open-type enclosure make it ideal for cost-sensitive applications where essential motor control is required.

Key Features

• Input Voltage: 3-phase, 380–480V AC, 50/60 Hz
• Output Power: 0.75 kW (1 HP)
• Output Current: 2.3 A
• Control Mode: Volts/Hertz (V/Hz)
• Built-in 4-digit LED keypad for local operation and parameter setup
• Integrated RS-485 Modbus RTU communication
• Panel or DIN rail mounting for flexible installation
• Compact IP20 open-type housing

Technical Specifications

• Voltage Class: 480V
• Output Frequency: 0–400 Hz
• I/O:
  • 4 digital inputs
• Communication: RS-485 (Modbus RTU)
• Operating Temperature: -10°C to 50°C (up to 60°C with derating)
• Enclosure Rating: IP20 (Open Type)
• Dimensions (HxWxD): Approx. 174 x 72 x 152 mm
• Certifications: UL Listed, CE, cUL, RoHS, Class I Div 2

Application Areas

• Small pumps and fans
• OEM machinery requiring simple motor control
• Light-duty conveyors and mixers
• HVAC and ventilation systems
• Compact industrial control panels

Advantages

• Economical solution for essential motor control tasks
• Easy to install and operate with built-in keypad
• RS-485 communication facilitates integration into control systems
• Compact size suitable for space-constrained enclosures
• Proven reliability in basic industrial applications
