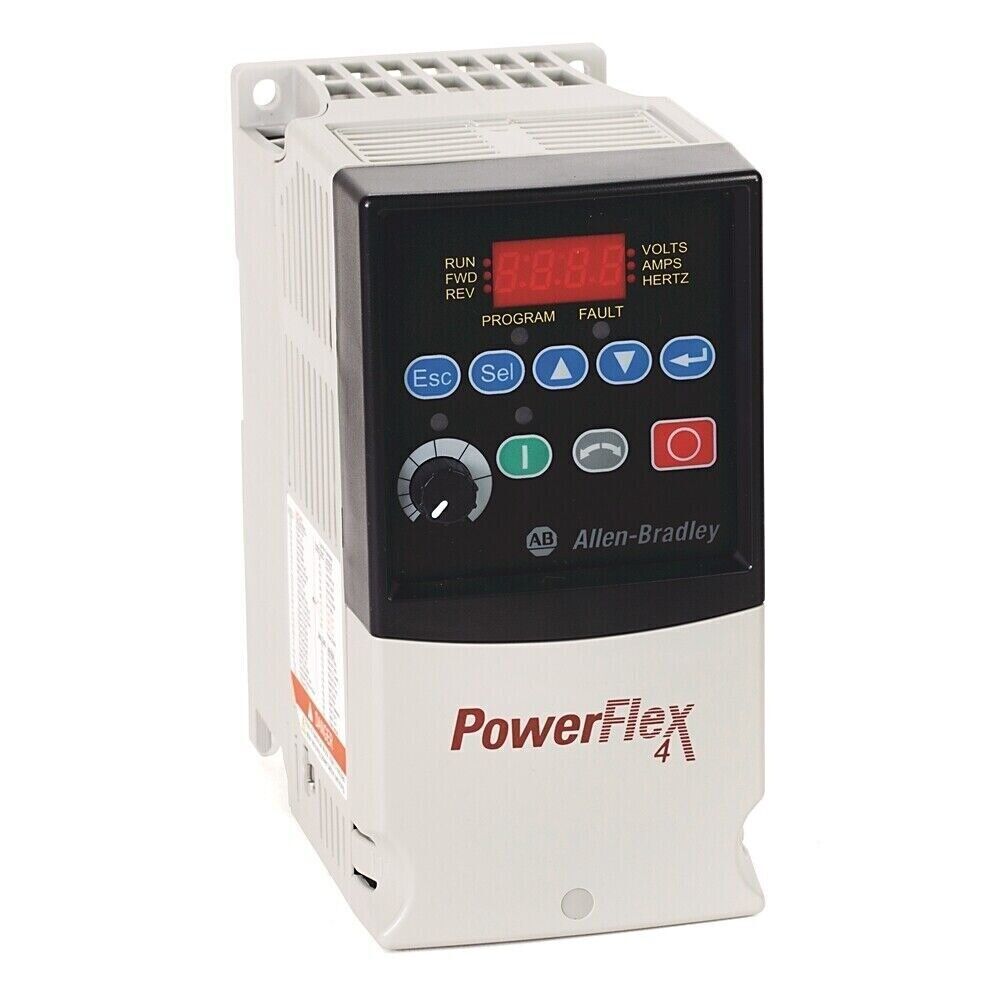

Product Description: Allen-Bradley 22A-V4P5N104
The Allen-Bradley 22A-V4P5N104 is a member of the PowerFlex 4 series, offering compact and cost-effective motor control for basic industrial applications. With a 4.5A output current and 1 HP power rating at 480V, it delivers solid performance in a minimal footprint, ideal for standalone machines and equipment with limited space.
Key Features
- Control Modes: Volts-per-Hertz (V/Hz)
- Built-in RS-485 (DSI) serial communication
- Integral keypad with 4-digit LED display for easy setup
- Flying start, dynamic braking support, and PID control
- Programmable digital and analog I/O
- Optional NEMA 1 enclosure conversion kit
- Simple parameter structure for fast commissioning
Technical Specifications
- Input Voltage: 3-phase, 480V AC
- Output Current: 4.5 Amps
- Power Rating: 1 HP (Horsepower)
- Frequency Range: 0–400 Hz
- Enclosure Type: Open Type (IP20), convertible to NEMA 1
- Frame Size: Frame A
- Control Method: V/Hz
- Operating Temperature: -10°C to +50°C
- Dimensions (HxWxD): approx. 170 x 85 x 150 mm
- Weight: approx. 2.2 kg
Application Areas
- Small conveyors and feeders
- Light-duty pumps and fans
- Standalone OEM equipment
- Laboratory and test devices
- Compact control panel systems
Advantages
- Simple and compact solution for basic drive needs
- Quick installation and configuration
- Integrated keypad and serial interface for local and remote control
- Low-cost alternative for low-power motor control
- Proven reliability in small industrial automation systems
