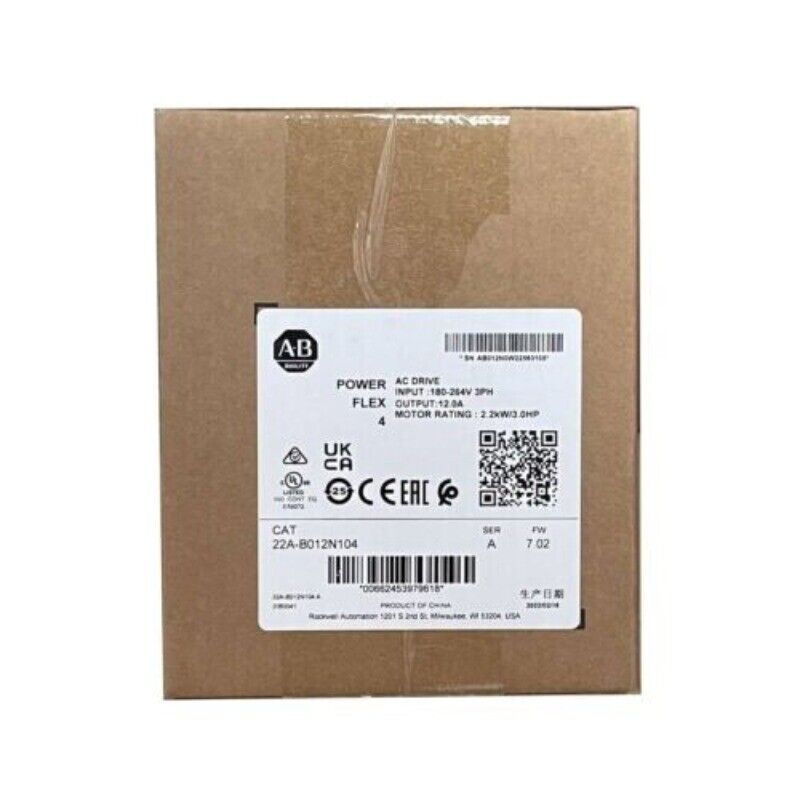

Product Description: Allen-Bradley 22A-B012N104
The Allen-Bradley 22A-B012N104 is a compact, general-purpose AC drive from the PowerFlex 4 series, designed for controlling three-phase induction motors in a wide range of industrial and commercial applications. This variable frequency drive (VFD) delivers dependable motor control, energy efficiency, and flexible integration in compact installations. With a power rating of 2 HP (1.5 kW) and an output current of 12.0 A, this drive supports input voltages from 480V AC, 3-phase, and features a built-in keypad for parameter configuration and monitoring. The 22A-B012N104 is engineered for simplicity and reliability, making it ideal for standalone machines or simple system control.
Product Type
- Variable Frequency Drive (VFD)
- Series: PowerFlex 4
- Application Category: General-purpose motor control
Key Features
- Power Rating: 2 HP (1.5 kW)
- Output Current: 12.0 A
- Input Voltage: 3-phase, 380–480V AC
- Input Frequency: 50/60 Hz
- Motor Control: Volts/Hertz (V/Hz) control
- Adjustable Accel/Decel Times: 0–600 seconds
- Integrated keypad with LED display for easy configuration
- 5 digital inputs, 1 analog input, and 1 relay output
- Built-in RS-485 (Modbus RTU) for communication
- DIN rail or panel mountable
- UL, CE, CSA, C-Tick, and RoHS compliant
- Protection Features: Overload, short-circuit, ground fault, overvoltage, undervoltage, and stall protection
Technical Specifications
- Enclosure Type: Open type (IP20)
- Carrier Frequency: Selectable (2–16 kHz)
- Ambient Operating Temperature: -10°C to +50°C (no derating)
- Control Method: Scalar (V/Hz) control
- Display: LED 4-digit display
- Mounting Options: Panel mount or DIN rail
- Dimensions (HxWxD): Approx. 152 mm x 85 mm x 152 mm
- Weight: Approx. 1.5 kg
Application Areas
- Conveyors and material handling
- Fans and blowers
- Pumps
- Packaging and labeling equipment
- Small machinery and OEM applications
- HVAC systems
Advantages
- Compact design for space-saving installations
- Easy-to-use interface for quick setup and monitoring
- Reliable motor control with essential protection features
- Suitable for a wide range of simple variable-speed applications
- Network-ready with RS-485 built-in communication
