Allen-Bradley | 2198-H070-ERS | Kinetix 5500

Product Description: Allen-Bradley 2198-H070-ERS

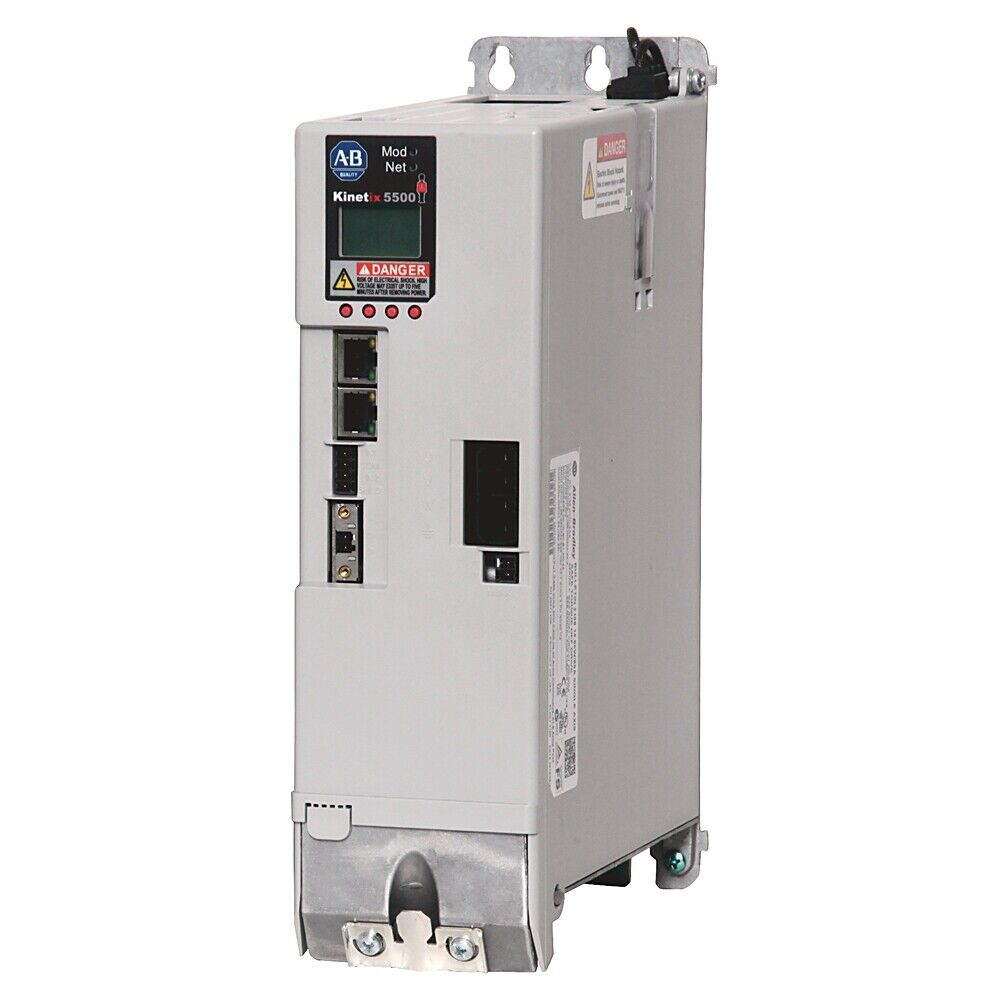

The Allen-Bradley 2198-H070-ERS is a high-performance servo drive from the Kinetix 5500 series, designed for integration with EtherNet/IP networks. It supports both servo and induction motors, providing flexibility in motion control applications. With a compact design and advanced features, it is suitable for a wide range of industrial automation tasks.

Key Features

• Continuous Output Current: 32.5 A
• Peak Output Current: 57.5 A
• Input Voltage: 3-phase, 190–528V AC
• Input Frequency: 47–63 Hz
• Hardwired Safe Torque-Off (STO) functionality
• Dual-port EtherNet/IP connectivity supporting DLR and linear topologies
• Integrated motion control with Logix-based controllers
• Support for single-cable technology combining power, feedback, and brake
• Compact Frame 3 design for space-saving installations

Technical Specifications

• Continuous Output Current: 32.5 A
• Peak Output Current: 57.5 A
• Input Voltage Range: 190–528V AC, 3-phase
• Input Frequency: 47–63 Hz
• Safety Certifications: SIL2, PLd, Category 3
• Communication: EtherNet/IP with dual RJ45 ports
• Mounting: Panel-mounted
• Operating Temperature: 0°C to +50°C
• Enclosure Rating: IP20
• Dimensions (H x W x D): 265 mm x 55 mm x 210 mm
• Weight: Approximately 4.1 kg
• Compatible Motors: VPL, VPF, MPL, MPM, MPF, MPAR, MPAS, MPAI series
• Certifications: UL, CE, cULus, KC, ODVA EtherNet/IP

Application Areas

• Packaging machinery
• Material handling systems
• Printing and converting equipment
• Food and beverage processing
• Automated assembly lines

Advantages

• High power density in a compact footprint
• Simplified wiring with single-cable technology
• Enhanced safety with hardwired STO
• Seamless integration with Rockwell Automation's Integrated Architecture
• Flexible network topology options with dual EtherNet/IP ports
