Allen-Bradley | 20F1AND125JN0NNNNN | PowerFlex 753

Product Description: Allen-Bradley 20F1AND125JN0NNNNN

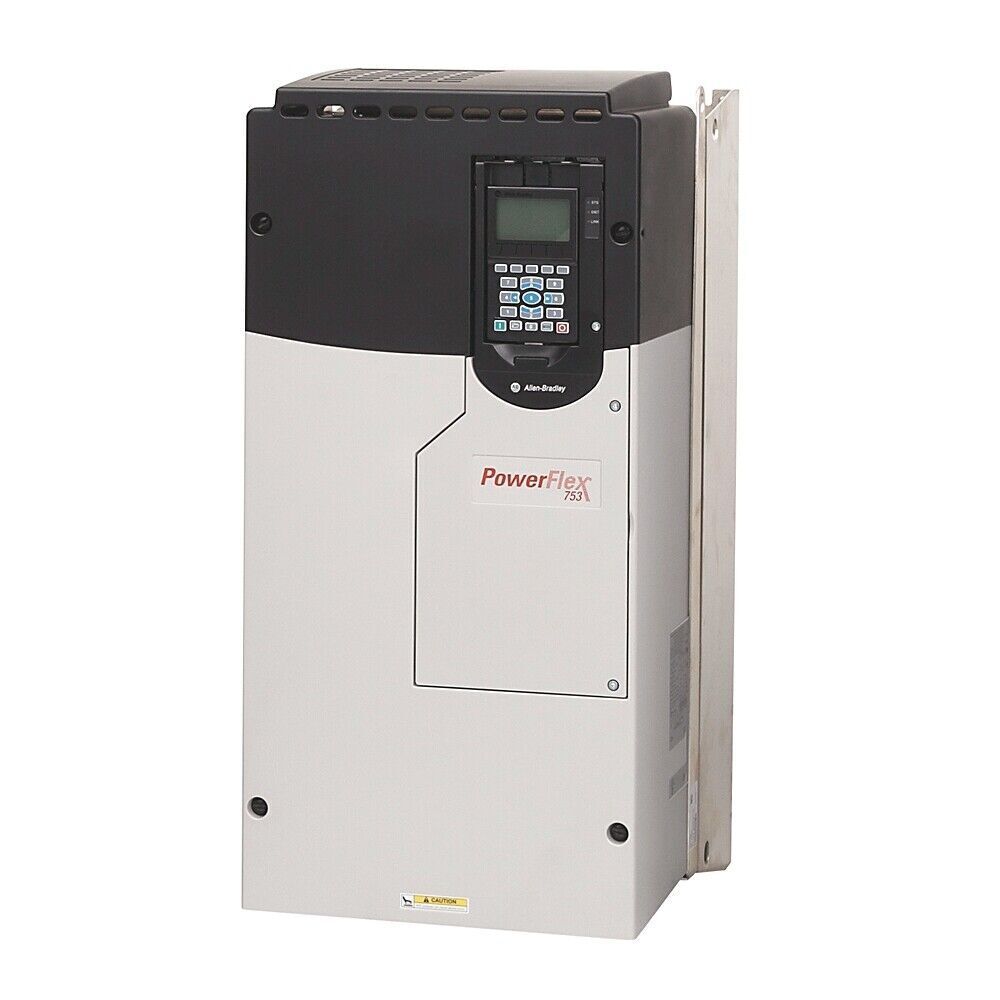

The Allen-Bradley 20F1AND125JN0NNNNN is a PowerFlex 753 AC drive rated for 75 HP (55 kW), engineered to deliver flexible, high- performance motor control in demanding industrial environments. With embedded standard I/O and a modular design, this drive provides a scalable solution for OEMs and system integrators who need efficiency, adaptability, and advanced control functionality.

Key Features

• Rated motor power: 55 kW (75 HP)
• Output current: 125 A
• Input voltage: 3-phase, 480V AC
• Frame size: 6
• Integrated standard digital and analog I/O
• Modular expansion architecture for communication, safety, and feedback options
• Supports V/Hz, Sensorless Vector, and Vector Control with encoder feedback
• User-friendly interface for easy configuration and diagnostics
• Panel mount design with open-type enclosure

Technical Specifications

• Input Voltage: 3-phase, 480V AC
• Output Current: 125 A
• Frequency Range: 0–599 Hz
• Motor Power Rating: 55 kW (75 HP)
• Control Modes: V/Hz, SVC, Full Vector Control
• Enclosure Type: Open type (IP00)
• Mounting: Panel mount
• Communication: Optional network adapters (not included)
• Operating Temperature: 0°C to +50°C (up to +60°C with derating)
• Dimensions (approx.): 711 mm H x 305 mm W x 305 mm D
• Certifications: UL, CE, cULus, RoHS, CSA

Application Areas

• Material handling and conveyors
• Pumps, compressors, and fans
• Mixing and batching systems
• Industrial automation requiring reliable mid-range motor control
• Machine control panels with integrated I/O needs

Advantages

• Modular and scalable for tailored system integration
• Built-in I/O reduces need for external control components
• Flexible motor control with encoder feedback support
• Seamless integration with Logix controllers and Studio 5000
• Efficient performance with advanced diagnostics and fault handling
