Allen-Bradley | 2080-IQ4 |Micro800

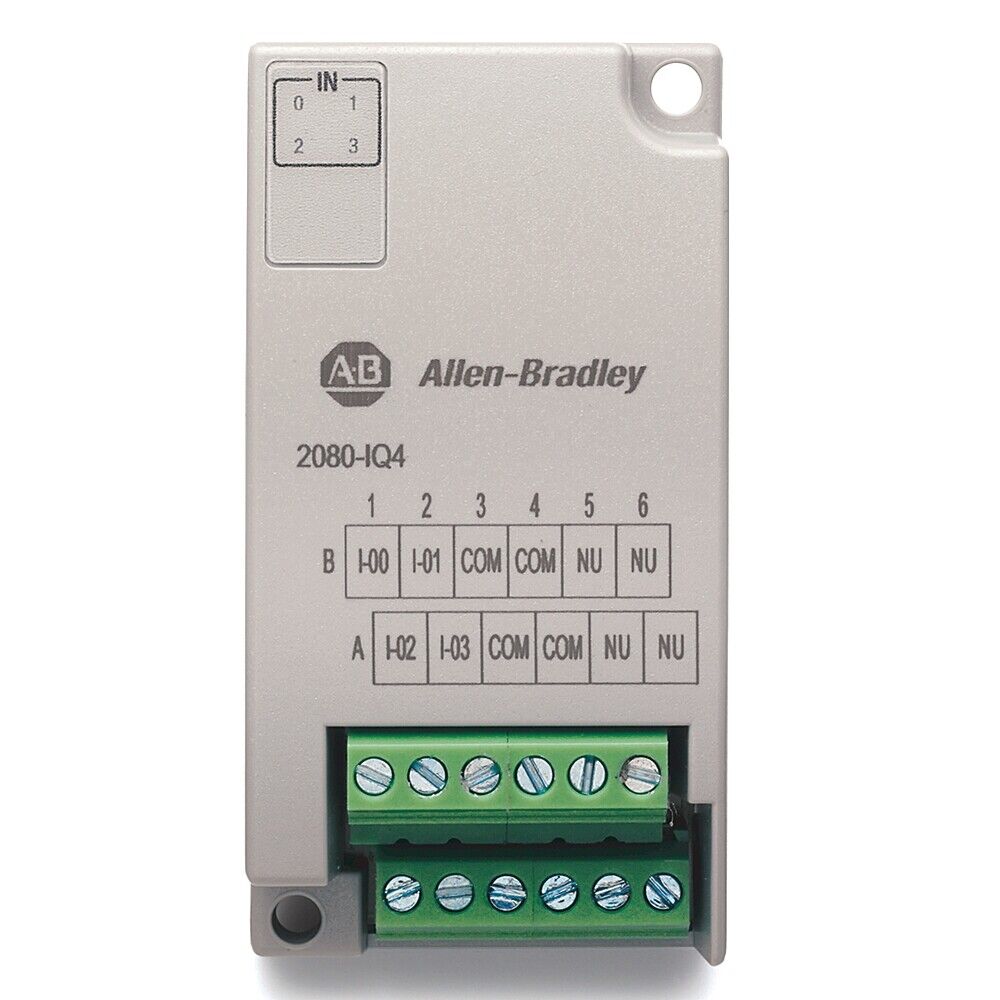

Product Description: Allen-Bradley 2080-IQ4

The Allen-Bradley 2080-IQ4 is a 4-point digital input expansion module from the Micro800 controller series, designed to interface 24V DC input signals to a Micro810, Micro820, or Micro850 controller. This module provides compact, cost-effective digital input expansion for small standalone automation applications. It supports both sinking and sourcing input wiring types, allowing flexibility in I/O configuration. The module is DIN rail mountable and connects seamlessly to the base unit, maintaining a streamlined and modular architecture.

Product Type

• Digital Input Expansion Module
• Series: Micro800
• Number of Inputs: 4
• Input Voltage: 24V DC
• Wiring Type: Sink/Source

Key Features

• 4 digital input channels (24V DC)
• Sink or source input wiring capability
• Direct expansion for Micro800 controllers
• Status LEDs for input channel diagnostics
• Compact and modular design
• DIN rail mounting
• Plug-and-play connectivity to the controller

Technical Specifications

• Input Voltage Range: 10–30V DC
• Nominal Input Voltage: 24V DC
• Input Delay Time: 3 ms (OFF to ON), 3 ms (ON to OFF)
• Input Current: 3.5 mA at 24V DC
• Isolation Voltage: 30V (basic insulation)
• Status Indicators: 1 per input (green LED)
• Power Consumption: 0.6W typical
• Backplane Current Draw (5V DC): 35 mA
• Mounting: DIN rail
• Operating Temperature: -20°C to +65°C
• Enclosure Rating: IP20
• Certifications: CE, c-UL-us, KC, RoHS

Application Areas

• Machine builders
• Packaging machines
• Small-scale process control
• Standalone automation projects
• Building automation systems

Advantages

• Simple and flexible input expansion for Micro800 controllers
• Space-saving modular design
• Supports both sinking and sourcing wiring
• Fast installation and commissioning
• Reliable input status feedback with integrated LEDs
