Allen-Bradley | 20-HIM-A6 | PowerFlex (20 Series)

Product Description: Allen-Bradley 20-HIM-A6

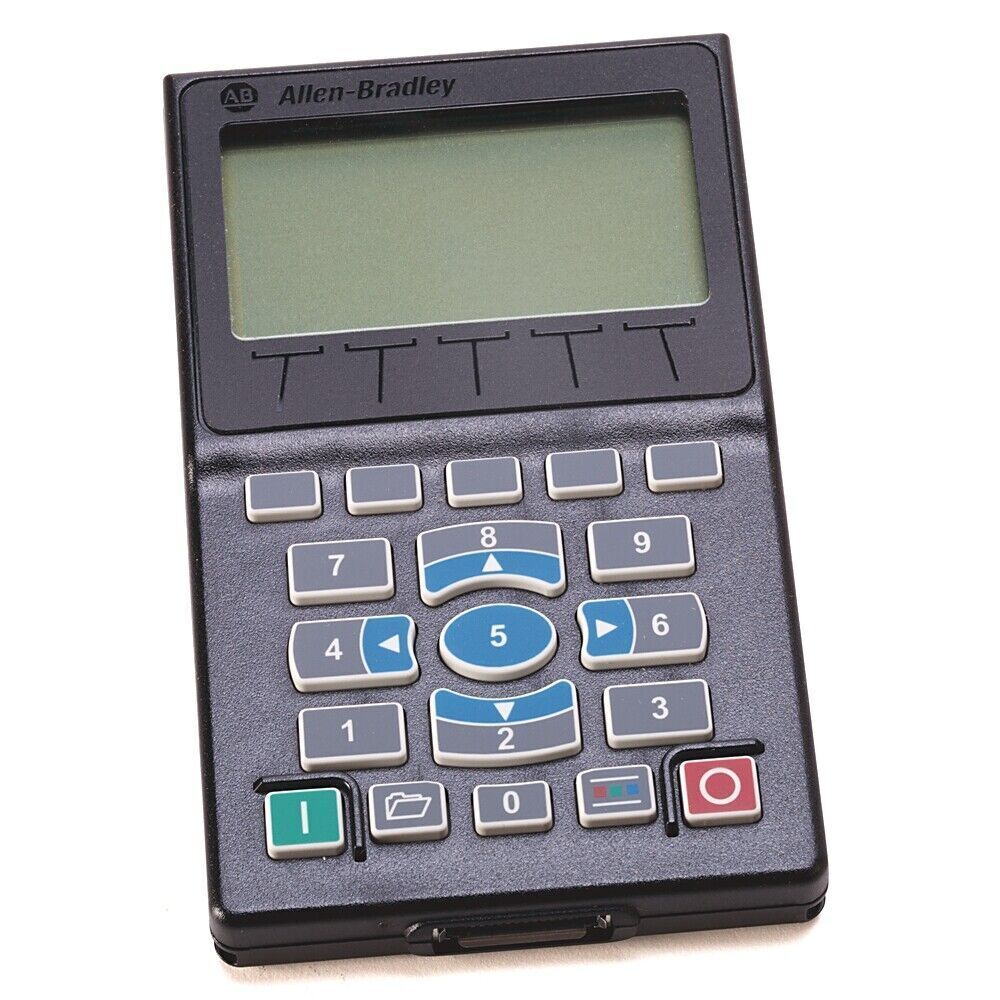

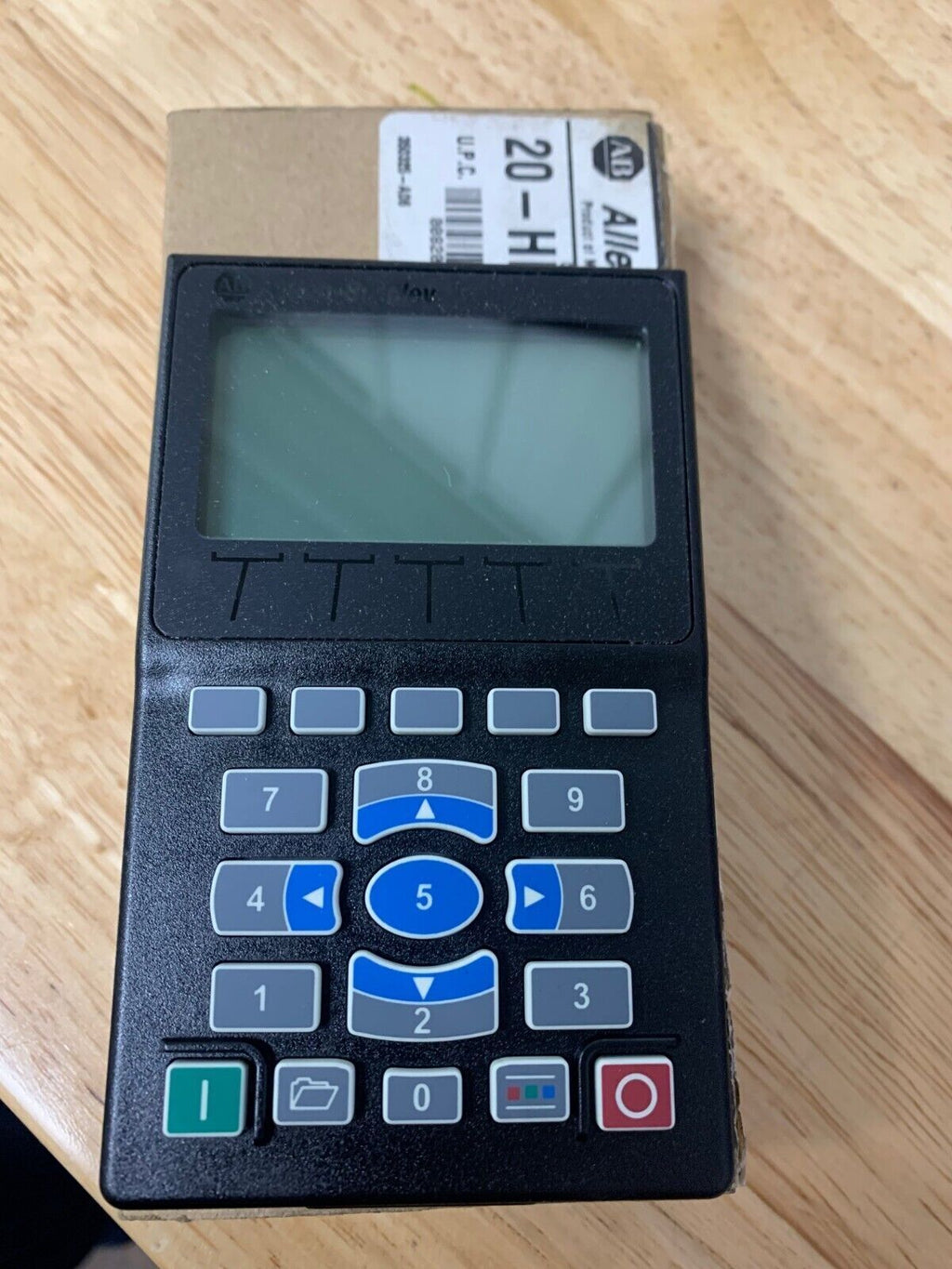

The Allen-Bradley 20-HIM-A6 is a detachable Human Interface Module (HIM) designed for use with PowerFlex AC drives. It features a full numeric keypad and an easy-to-read LCD display, providing intuitive control, parameter monitoring, and configuration capabilities. This HIM supports multi-drive communication and is ideal for both commissioning and daily operation of PowerFlex drives in industrial applications.

Key Features

• Full numeric keypad for fast parameter entry
• Backlit multi- line LCD display for clear real-time status and diagnostics
• Supports multiple languages and user-selectable units
• Drive control, configuration, and monitoring functions
• Upload/download capability for parameter sets
• Supports multiple PowerFlex drive families including 70, 700, 753, and 755
• Removable and panel-mountable for flexible installation

Technical Specifications

• Display Type: LCD (multi-line, backlit)
• Keypad: Full numeric with navigation and soft keys
• Communication: Compatible with DPI (Drive Peripheral Interface)
• Mounting Options:
  • Direct mount on drive
• Power Supply: Powered by the connected drive via DPI port
• Operating Temperature: 0°C to 50°C
• Dimensions (HxWxD): Approx. 100 x 80 x 35 mm

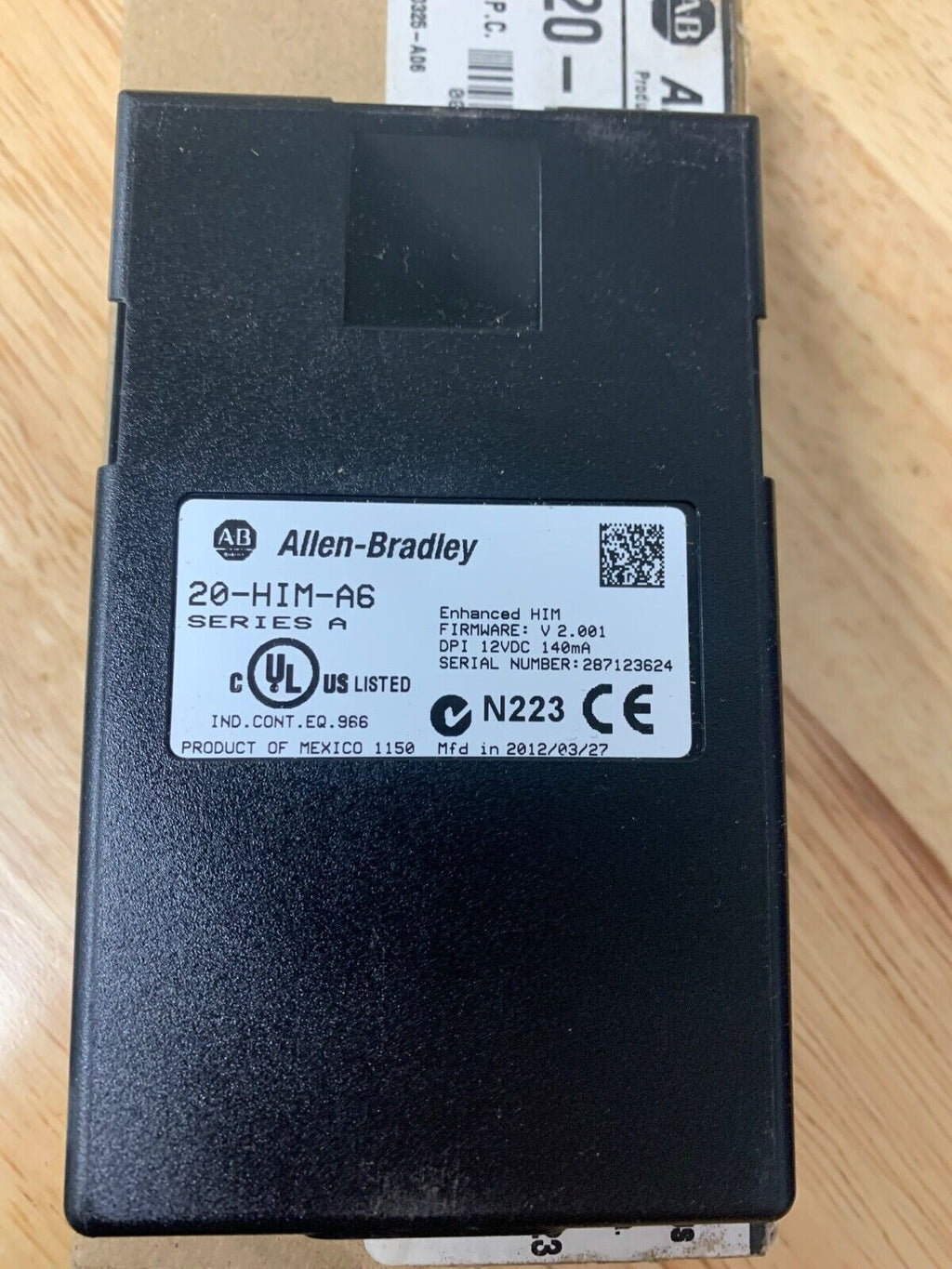

• Certifications: UL Listed, CE, CSA, RoHS

Application Areas

• PowerFlex AC drive configuration and operation
• Industrial automation requiring local operator interface
• Commissioning and diagnostics of motor drive systems
• Panel-mounted drive control stations
• OEM and system integrator environments

Advantages

• Simplifies drive setup and diagnostics
• Allows for fast parameter adjustment without external tools
• Portable for use across multiple drives
• Reduces commissioning time and improves troubleshooting
• Provides intuitive operator access to drive functions
