Allen-Bradley | 1794-IB16XOB16P | FLEX I/O (1794 Series)

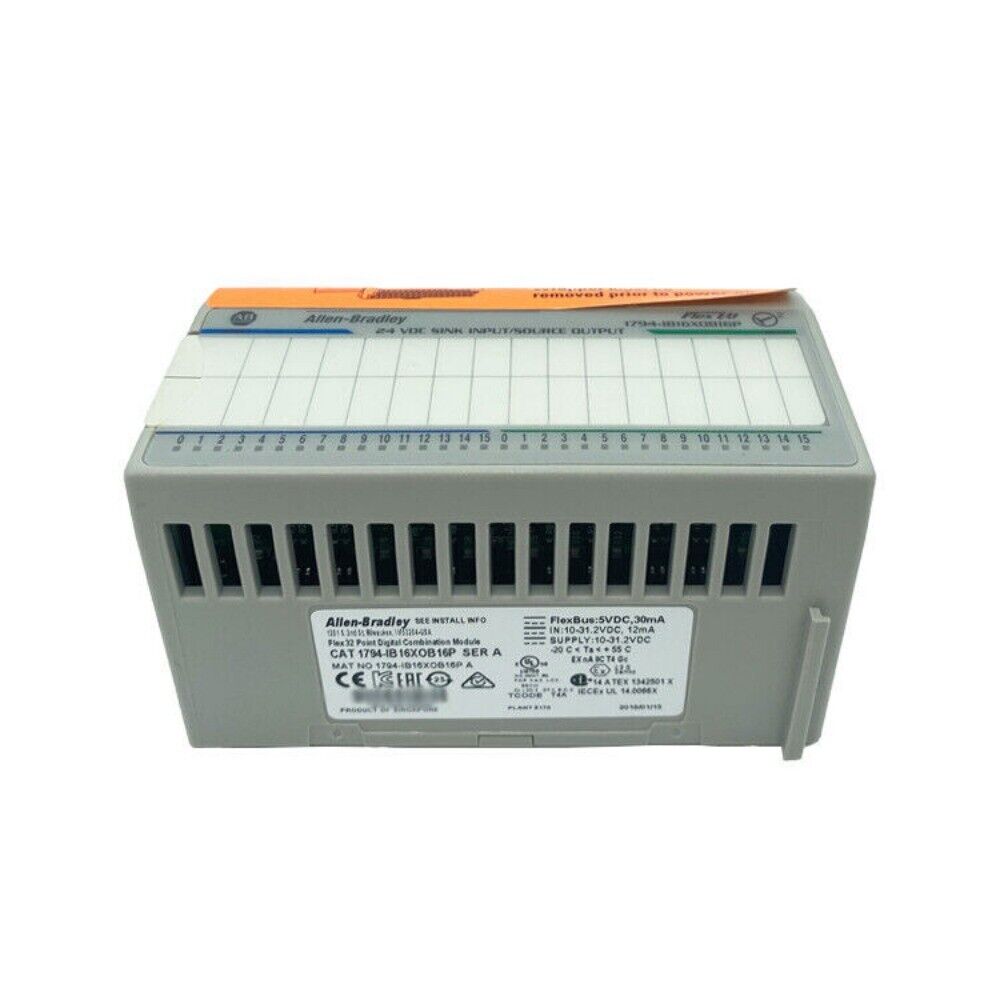

Product Description: Allen-Bradley 1794-IB16XOB16P

The Allen-Bradley 1794-IB16XOB16P is a 32-point combination digital I/O module within the FLEX I/O platform. It integrates 16 sinking (NPN) digital inputs and 16 sourcing (PNP) digital outputs into a single compact module, ideal for systems requiring both input monitoring and output control in limited space. The sourcing outputs are electronically protected against short circuits and overcurrent, enhancing reliability in industrial environments.

Key Features

• 16 digital sinking (NPN) inputs at 24V DC
• 16 digital sourcing (PNP) outputs at 24V DC
• Electronic protection on all output channels
• Inputs and outputs grouped into 2 groups of 8
• Individual LED indicators for each I/O point
• Compact design optimizes I/O density
• Seamlessly integrates with FLEX I/O adapters and terminal bases

Technical Specifications

• Inputs: Type: Sinking (NPN), 24V DC
• Voltage Range (Inputs): 10–31.2V DC
• Input Delay: ≤1 ms ON/OFF
• Input Current: 6 mA @ 24V DC
• Outputs: Type: Sourcing (PNP), 24V DC
• Voltage Range (Outputs): 10–31.2V DC
• Current per Output: 0.5 A
• Group Limit: 4.0 A per group (2 groups of 8)
• Total Module Output Current: 8.0 A max
• Protection: Short-circuit and overcurrent electronic protection
• Output Delay: ≤1 ms ON/OFF
• Isolation Voltage: 50V (field-to-backplane and between I/O groups)
• Power Dissipation: ~5.0 W
• Mounting: DIN rail via appropriate FLEX terminal base (e.g., 1794-TB32)
• Operating Temperature: 0°C to 55°C
• Certifications: UL Listed, CE, CSA, RoHS, Class I Div 2

Application Areas

• Machine control panels requiring mixed digital I/O
• Packaging, material handling, and robotics systems
• OEM equipment with compact I/O needs
• Distributed I/O applications in automotive and manufacturing
• Integrated systems needing fast digital response and protection

Advantages

• Saves panel space by combining inputs and outputs in one module
• Electronically protected outputs enhance system longevity
• Ideal for high-density discrete I/O environments
• LED indicators assist with quick diagnostics and maintenance
• Full FLEX I/O compatibility for scalable distributed control
