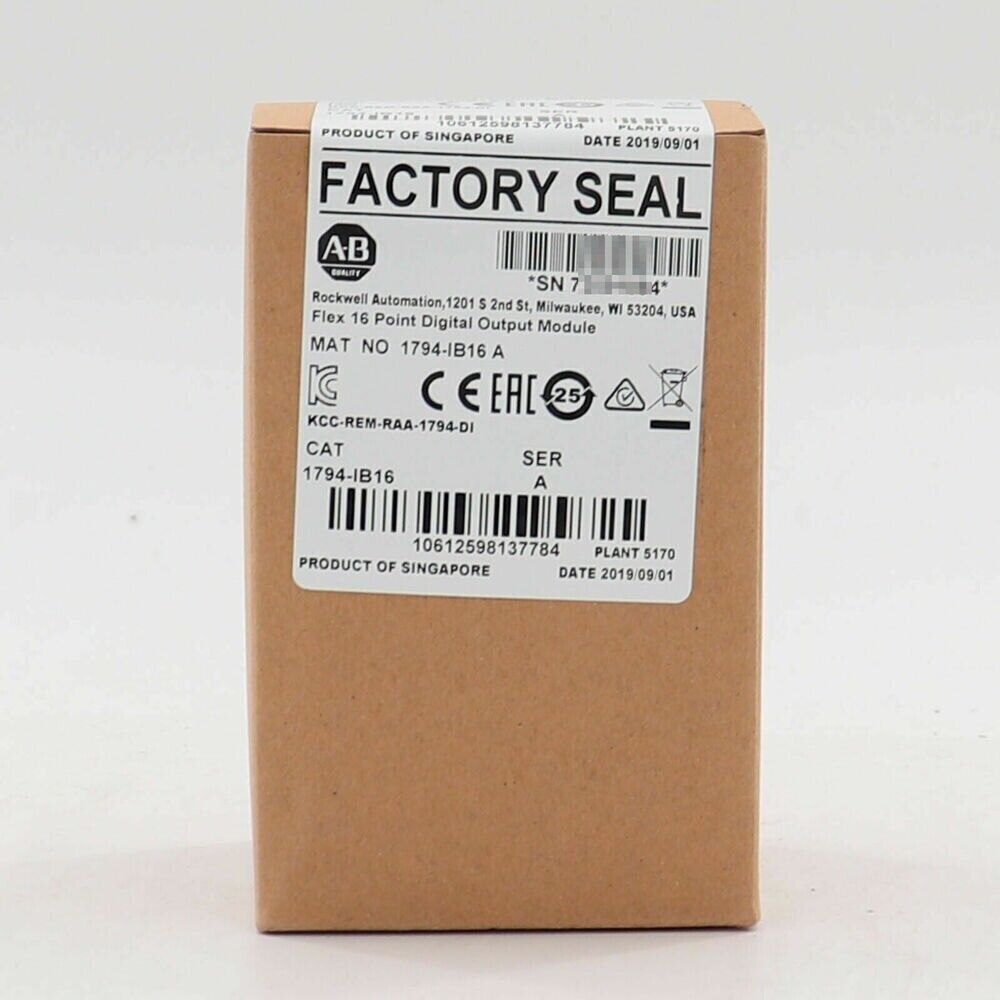

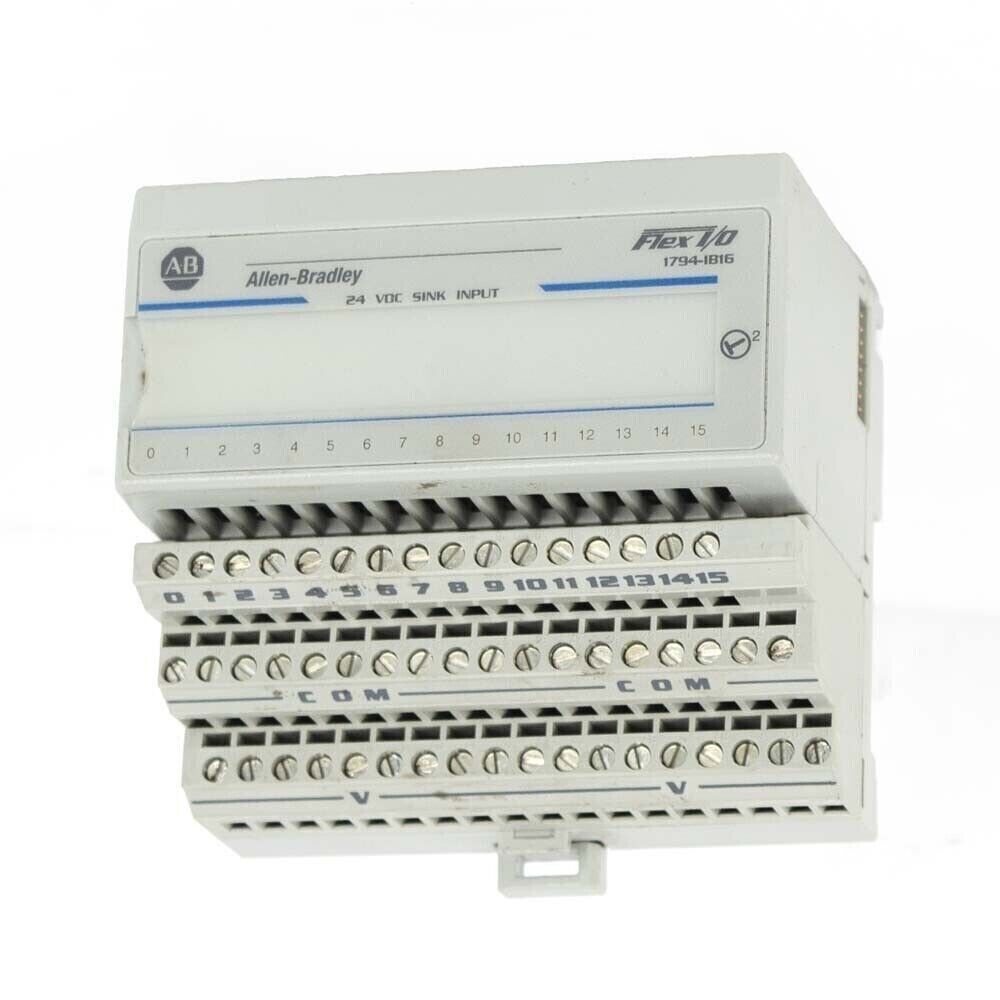

Allen-Bradley 1794-IB16 Flex I/O Input Module, Industrial Automation PLC component

Allen-Bradley | 1794-IB16 | FLEX I/O – 1794 Series

$46.22

$46.22 $0.00

1/4

Allen-Bradley | 1794-IB16 | FLEX I/O – 1794 Series

Product Description: Allen-Bradley 1794-IB16

The Allen-Bradley 1794-IB16 is a 16-channel discrete input module designed for use within the FLEX I/O platform. It provides high-density 24V DC digital input capability in a compact, modular design ideal for distributed control systems. The module is suitable for detecting the ON/OFF status of field devices such as switches, sensors, or other digital sources in industrial automation environments.

Product Type

16-Channel Digital DC Input Module
Series: FLEX I/O – 1794 Series
Input Type: Digital (Discrete) DC Input – Sinking

Key Features

16 input channels for high-density input in a compact footprint
24V DC sinking input type (requires sourcing field devices)
Compact FLEX I/O form factor allows modular and space-efficient system design
Backplane communication through adapter modules (e.g., EtherNet/IP, ControlNet, etc.)
LED indicators for channel status and diagnostics
Terminal base (e.g., 1794-TB3, 1794-TB3S, or 1794-TBN) required for field wiring connection

Technical Specifications

Input Voltage Range: 10–31.2 VDC (nominal 24V DC)
Input Current (per channel): Approx. 6 mA at 24V DC
Number of Inputs: 16
Input Type: Sinking (uses sourcing devices)
On-State Voltage: ≥10V DC
Off-State Voltage: ≤5V DC
On-State Current (min): 2.0 mA
Off-State Current (max): 1.5 mA
Isolation Voltage: 50V continuous (field to backplane, tested at 850V DC for 1s)
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Mounting: Panel or DIN rail via compatible terminal base
Dimensions (HxWxD): Approx. 94 x 94 x 69 mm (with base)
