Allen-Bradley | 1783-US16T | Stratix 2000

Product Description: Allen-Bradley 1783-US16T

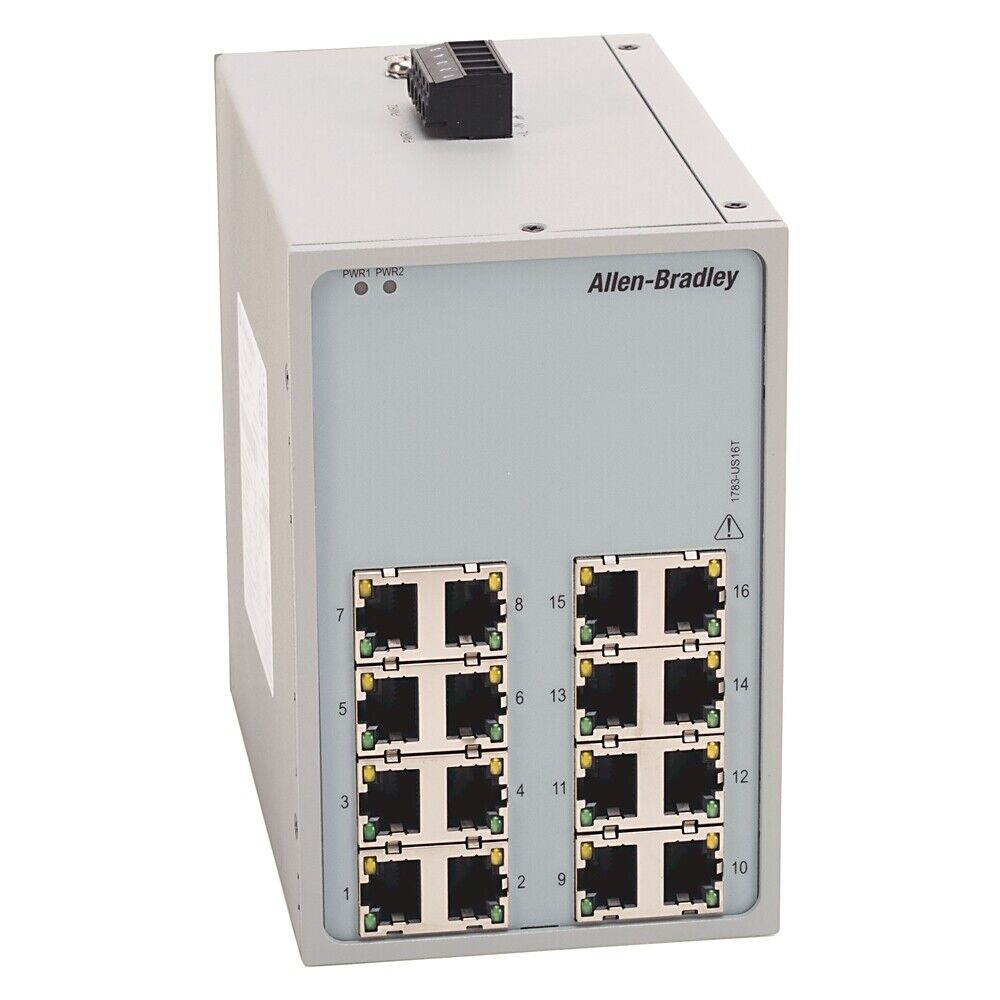

The Allen-Bradley 1783-US16T is an unmanaged industrial Ethernet switch from the Stratix 2000 series, featuring 16 copper (RJ45) ports for 10/100 Mbps communication. Designed for use in control panels and harsh environments, it supports plug-and-play installation with no configuration required, making it ideal for simple industrial networking applications.

Key Features

• 16 auto-sensing 10/100 Mbps copper ports
• DIN rail mountable for easy panel installation
• Plug-and-play operation with no configuration required
• Auto MDI/MDI-X support on all ports
• Broadcast storm protection and port auto-negotiation
• Compact industrial design for tight control cabinets
• LED indicators for link/activity and speed per port

Technical Specifications

• Number of Ports: 16 (RJ45 copper)
• Data Rate: 10/100 Mbps, full/half duplex
• Switching Capacity: 3.2 Gbps
• MAC Address Table: 2,000 entries
• Input Voltage: 12–48V DC or 18–30V AC
• Power Consumption: Max 5.5 W
• Enclosure Type: Plastic, IP30-rated
• Mounting: DIN rail
• Operating Temperature: -40°C to +60°C
• Dimensions (H x W x D): Approx. 138 mm x 50 mm x 95 mm
• Certifications: UL, CE, cULus, CSA, RoHS

Application Areas

• Machine-level industrial Ethernet networks
• Simple point-to-point or star topology networking
• Factory automation systems
• OEM equipment panels
• Non-managed network segments

Advantages

• No configuration or software required
• Simplifies deployment in small to mid- size control systems
• Industrial-grade design tolerates harsh environments
• Compact form factor for space-constrained installations
• Reliable performance for standard Ethernet traffic
