Product Description: Allen-Bradley 1769-PA4

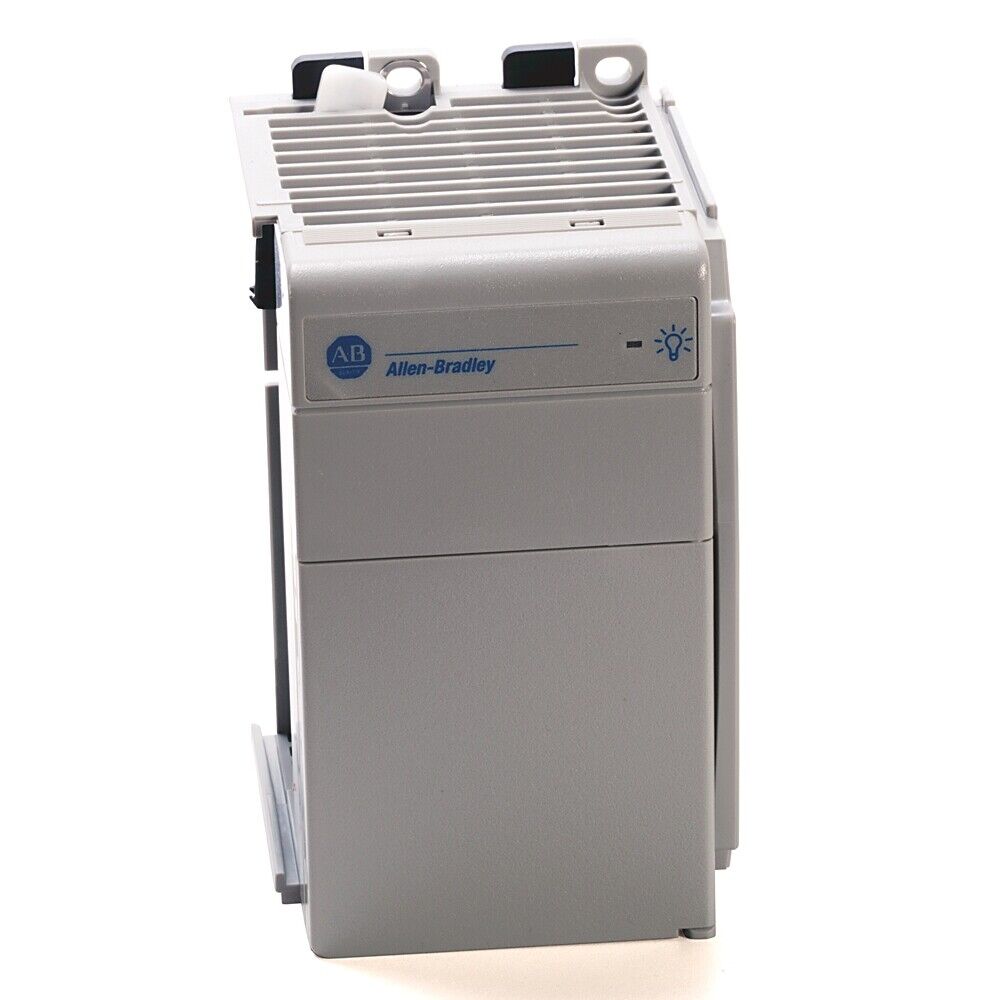

The Allen-Bradley 1769-PA4 is a CompactLogix and Compact I/O series power supply module designed to provide regulated 24V DC power to 1769 system components. This module is suitable for systems requiring a higher current output, supporting multiple I/O modules in a DIN rail or panel-mounted configuration.
Key Features
- Supports both left and right-side module connections
- Supplies power to up to eight 1769 I/O modules
- Integrated fuse protection
- Removable terminal block for easy wiring
- Overvoltage and overload protection
Technical Specifications
- Input Voltage: 85 to 265V AC
- Input Frequency: 47 to 63 Hz
- Output Voltage: 24V DC
- Output Current: 4.0 A at 5V DC; 2.8 A at 24V DC
- Power Dissipation: 8.5 Watts
- Mounting Type: DIN rail or panel mount
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Dimensions: 118 x 70 x 75 mm (4.65 x 2.76 x 2.95 in)
Application Areas
- Small to medium automation systems
- Standalone machine control
- Industrial control panels
- Distributed I/O architectures
Advantages
- Compact design optimizes panel space
- Simplifies installation and maintenance with pluggable connectors
- Compatible with MicroLogix 1500 and CompactLogix controllers
- High efficiency and reliable power distribution within the 1769 platform
