Allen-Bradley | 1766-L32BXB | MicroLogix 1400

Product Description: Allen-Bradley 1766-L32BXB

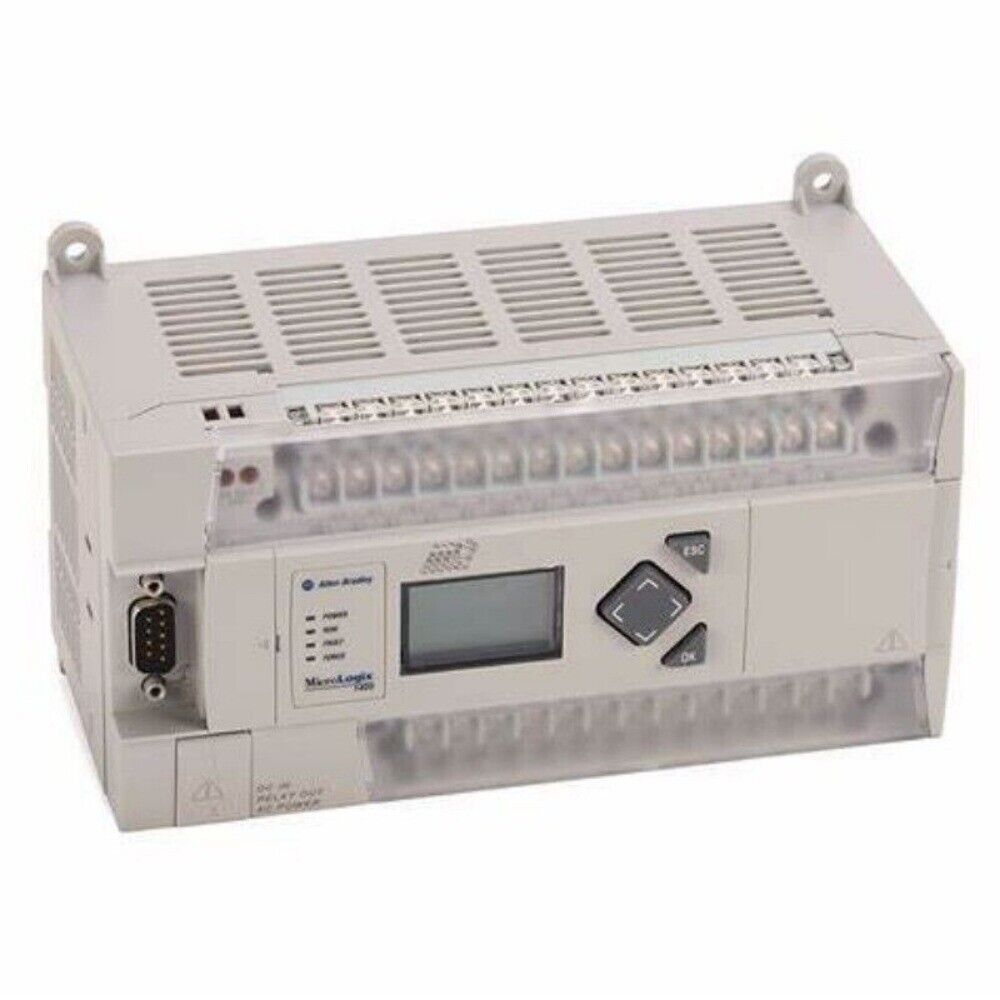

The Allen-Bradley 1766-L32BXB is a MicroLogix 1400 controller featuring 32 I/O points and a 24V DC power supply. It offers a combination of high-speed and standard digital inputs and outputs, along with relay outputs, making it suitable for a wide range of industrial automation applications. The controller includes an integrated LCD for monitoring and configuration, as well as multiple communication ports for versatile connectivity.

Key Features

• 32 I/O points:
  • 12 high-speed 24V DC digital inputs
• Integrated LCD with backlight for status monitoring and configuration
• Built-in communication ports:
  • 1 x Ethernet/IP port
• Supports protocols: DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
• Expandable with up to 7 1762 I/O modules
• Real-time clock (RTC) for time-based control applications
• Programmed using RSLogix 500 software

Technical Specifications

• Power Supply: 24V DC
• Memory: 20 KB user memory
• Dimensions (HxWxD): 90 mm x 180 mm x 87 mm
• Mounting: DIN rail or panel mount
• Operating Temperature: 0 to 55°C
• Certifications: UL, CE, cULus, RoHS, KCC, RCM

Application Areas

• Industrial machinery control
• Packaging and material handling systems
• HVAC and building automation
• Water and wastewater treatment
• Food and beverage processing
• OEM equipment integration

Advantages

• Compact design with integrated I/O and communication ports
• High-speed inputs and outputs for precise control
• Flexible communication options for network integration
• Expandable I/O for scalable applications
• User-friendly LCD interface for on-site monitoring and configuration
• Reliable performance in various industrial environments
