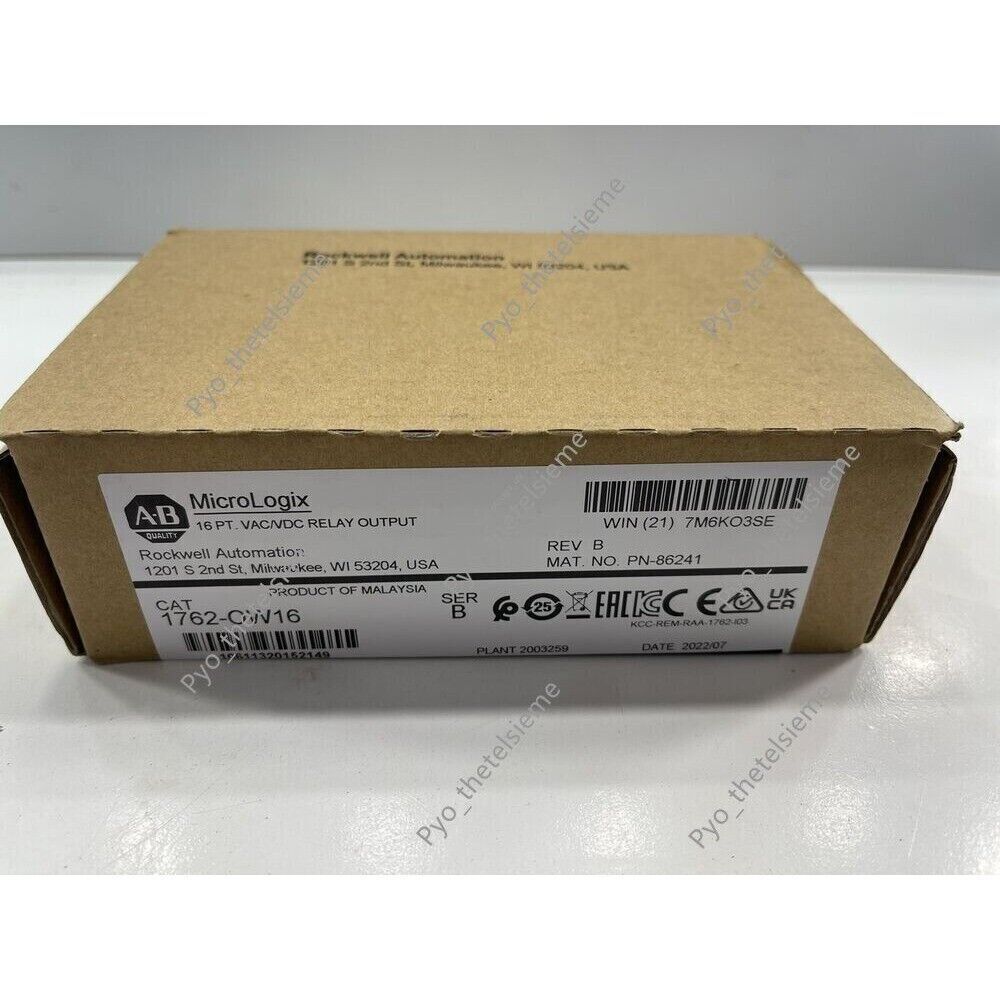

Allen-Bradley | 1762-OW16 | MicroLogix 1200 (1762 Series)

Product Description: Allen-Bradley 1762-OW16

The Allen-Bradley 1762-OW16 is a 16-point relay output module designed for use with MicroLogix 1100, 1200, and 1400 controllers. It provides individually isolated Form A relay contacts capable of switching both AC and DC loads. The module is suitable for applications requiring flexible, high-voltage, or inductive load switching, and ensures electrical isolation between channels for enhanced reliability and safety.

Key Features

• 16 relay output channels
• Supports both AC and DC loads (Form A, normally open contacts)
• Individually isolated relay outputs for flexible wiring
• Compatible with MicroLogix 1100, 1200, and 1400 PLCs
• Removable terminal block for convenient field wiring
• Per-channel LED indicators for output status monitoring
• Electromechanical contacts suitable for resistive and inductive loads

Technical Specifications

• Number of Outputs: 16
• Output Type: Relay (mechanical, normally open)
• Voltage Ratings:
  • 5–125V DC
• Maximum Output Current:
  • 2.0 A per point (resistive)
• Isolation Voltage: 1500V AC (channel-to-channel and channel-to-backplane)
• Backplane Current Draw:
  • 120 mA @ 5V DC
• Power Supply: Provided through the controller backplane
• Operating Temperature: 0°C to 55°C
• Mounting: DIN rail
• Certifications: UL Listed, CE, CSA, RoHS, Class I Div 2

Application Areas

• Actuation of pilot lights, solenoids, relays, contactors
• AC or DC load switching in industrial control panels
• Building automation, HVAC systems, and lighting control
• OEM equipment with multiple output requirements
• Systems requiring high channel-count relay control

Advantages

• High-density output module saves panel space
• Supports both AC and DC loads for application versatility
• Isolated channels provide added safety and signal integrity
• Easy field wiring with removable terminal block
• Seamless expansion with MicroLogix platforms
