Allen-Bradley | 1762-IF2OF2 | MicroLogix1200

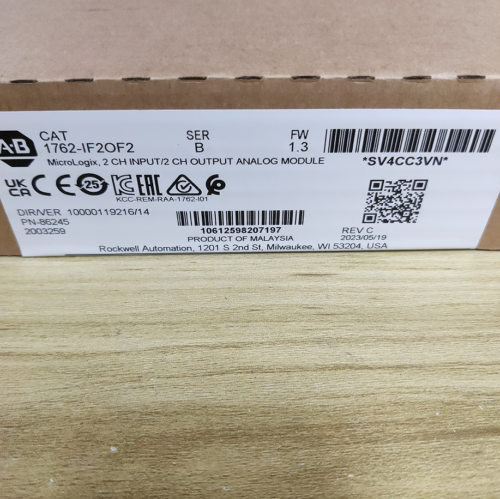

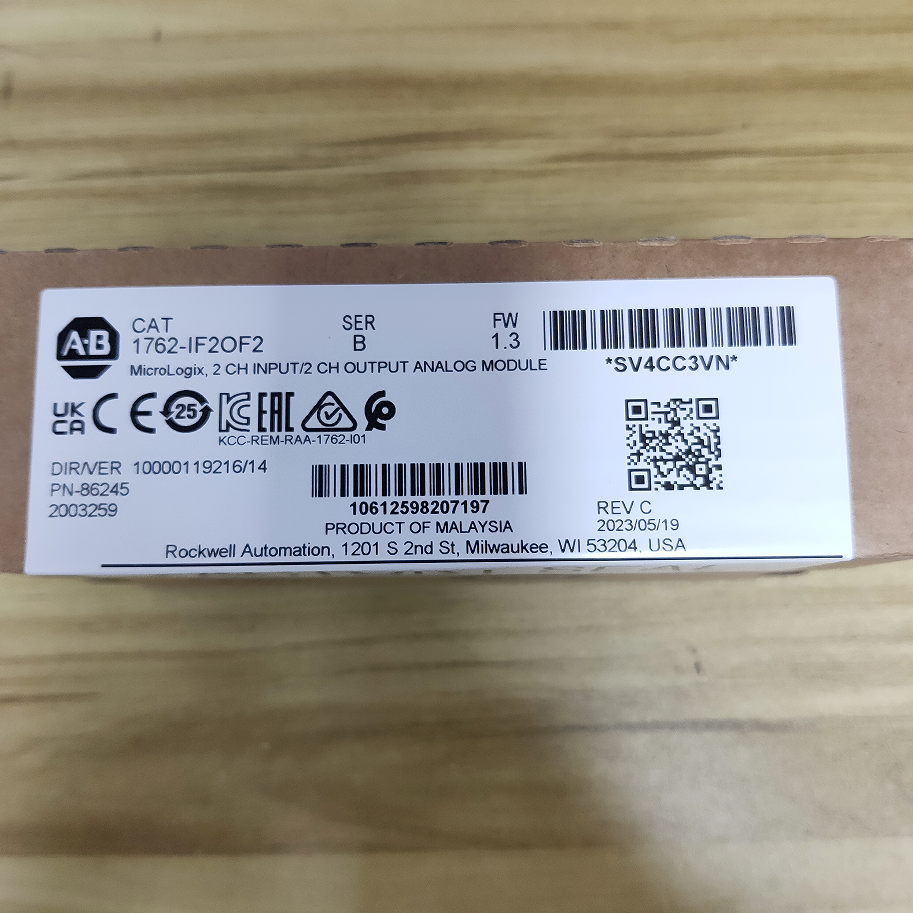

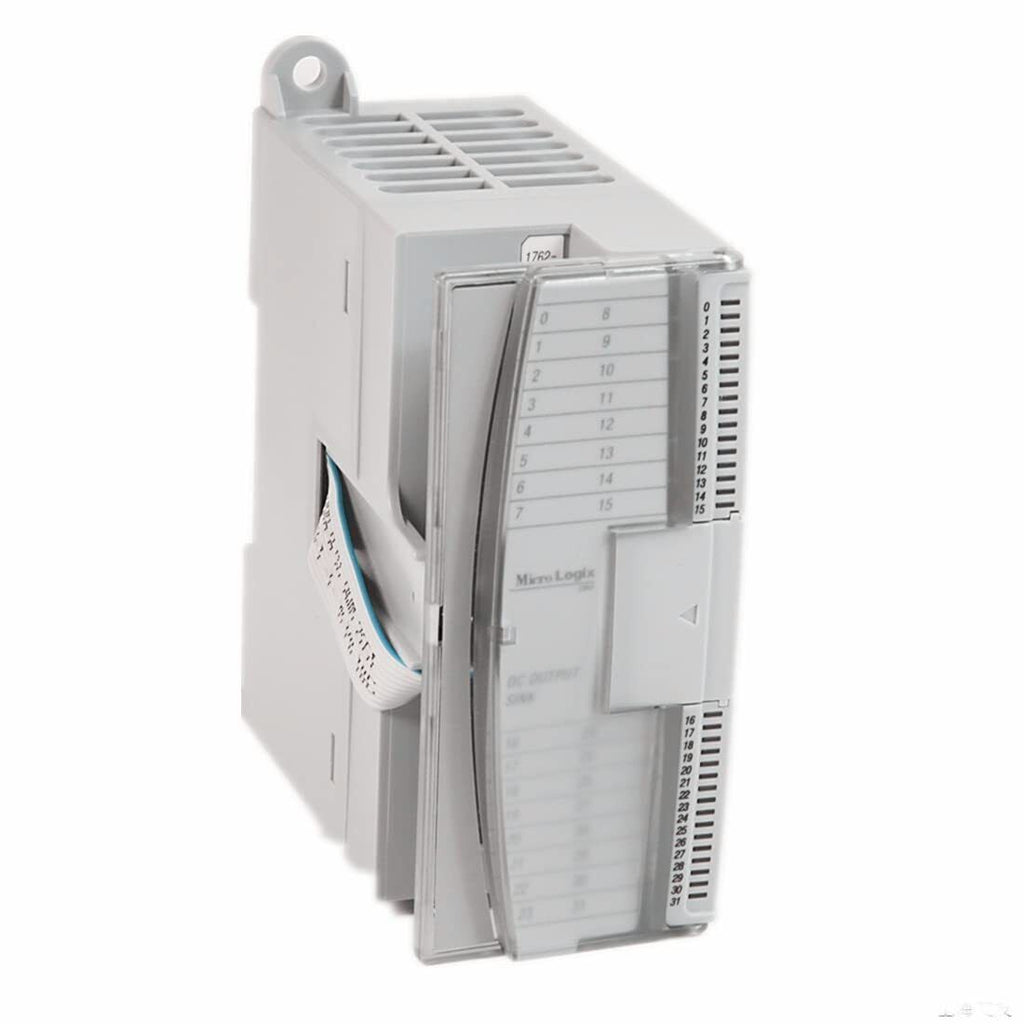

Product Description: Allen-Bradley 1762-IF2OF2

The Allen-Bradley 1762-IF2OF2 is a combination analog input/output module designed for use with MicroLogix 1100, 1200, and 1400 controllers. It provides two analog inputs and two analog outputs in a single compact module, supporting both voltage and current signal types. Ideal for space-constrained applications, this module enables cost-effective analog control and monitoring in one unit, simplifying system design and wiring.

Key Features

• 2 analog input channels (voltage or current)
• 2 analog output channels (voltage or current)
• Individually configurable input and output signal ranges
• High-resolution analog-to-digital and digital-to-analog conversion
• Removable terminal block for easy wiring and maintenance
• Status LEDs for module and channel diagnostics
• Compatible with MicroLogix 1100, 1200, and 1400 PLCs
• Factory-calibrated for high accuracy—no user calibration required

Technical Specifications

• Analog Inputs: 2 channels
• Input Types: 0–10V DC, ±10V DC, 0–20 mA, 4–20 mA
• Resolution: 14 bits
• Input Impedance: 210 kΩ (voltage), 250 Ω (current)
• Analog Outputs: 2 channels
• Output Types: 0–10V DC, ±10V DC, 0–20 mA, 4–20 mA
• Resolution: 14 bits
• Output Load: ≥1 kΩ (voltage), ≤500 Ω (current)
• Accuracy: ±0.5% of full scale
• Isolation Voltage: 30V (no channel-to-channel isolation)
• Backplane Current Draw:
  • 120 mA @ 5V DC
• Operating Temperature: 0°C to 55°C
• Mounting: DIN rail
• Certifications: UL Listed, CE, CSA, RoHS, Class I Div 2

Application Areas

• Industrial process monitoring and control
• Temperature, pressure, and flow instrumentation
• Machine-level control with analog devices
• OEM systems requiring minimal I/O footprint
• Packaging, dosing, and metering equipment

Advantages

• Combines input and output functions in one module
• Saves space and reduces wiring complexity
• Supports both voltage and current signals for broad sensor compatibility
• High resolution ensures precise control and measurement
• Ideal for compact, cost-conscious automation solutions
