Allen-Bradley | 1761-CBL-PM02 | MicroLogix (1761 Series)

Product Description: Allen-Bradley 1761-CBL-PM02

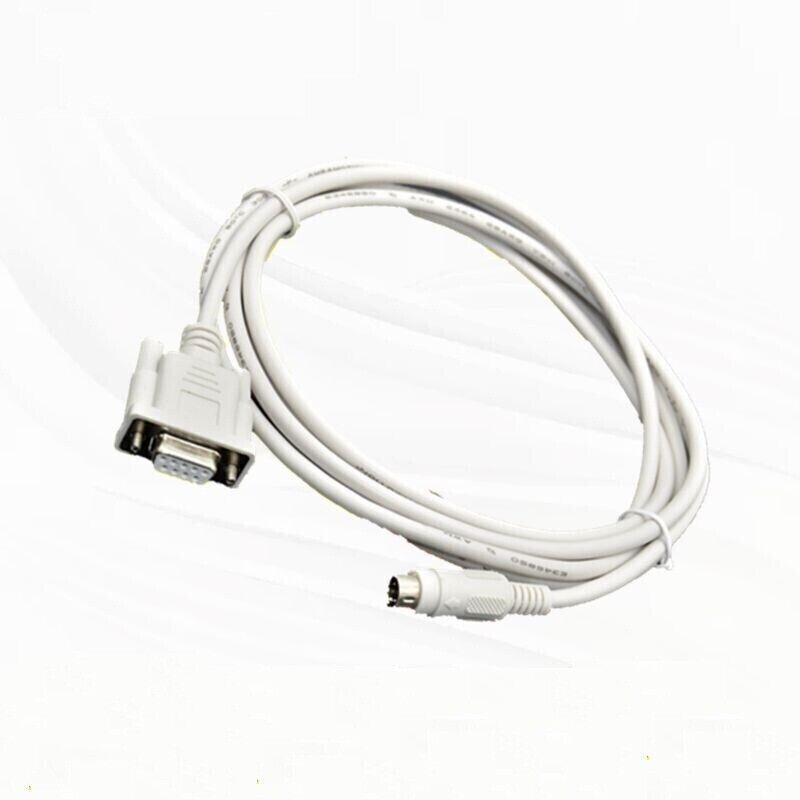

The Allen-Bradley 1761-CBL-PM02 is a standard programming cable designed to connect a PC’s RS-232 serial port (DB9) to the 8-pin mini-DIN communication port on MicroLogix controllers. This cable enables upload, download, and monitoring of programs using RSLogix 500 software. It is specifically used with MicroLogix 1000, 1200, 1400, and 1500 series controllers and is widely recognized as the default serial communication cable for these systems.

Key Features

• 8-pin mini- DIN to 9-pin D-sub (DB9F) serial connector
• Direct connection between PC and MicroLogix controller
• Passive cable – no external power required
• High- quality molded connectors with strain relief
• Rugged, industrial-grade construction
• Fully compatible with Allen-Bradley RSLogix 500 programming software

Technical Specifications

• Connector A: DB9 female (RS-232, to PC)
• Connector B: 8-pin mini-DIN male (to MicroLogix controller)
• Cable Length: 2.5 meters (8.2 feet)
• Signal Type: RS-232 (DF1 full-duplex protocol)
• Supported Controllers: MicroLogix 1000, 1200, 1400, 1500
• Communication Speed: Up to 19.2 kbps
• Operating Temperature: 0°C to 60°C
• Certifications: RoHS Compliant

Application Areas

• Uploading and downloading programs to MicroLogix PLCs
• Firmware updates and diagnostics
• Machine commissioning and field servicing
• OEM setups and on-site configuration
• Industrial automation support and maintenance

Advantages

• Reliable and official solution for programming MicroLogix controllers
• Plug-and-play compatibility with RSLogix 500 software
• Eliminates the need for USB/serial adapters in legacy systems
• Durable and tested for industrial environments
• Simplifies field maintenance and reduces commissioning time
