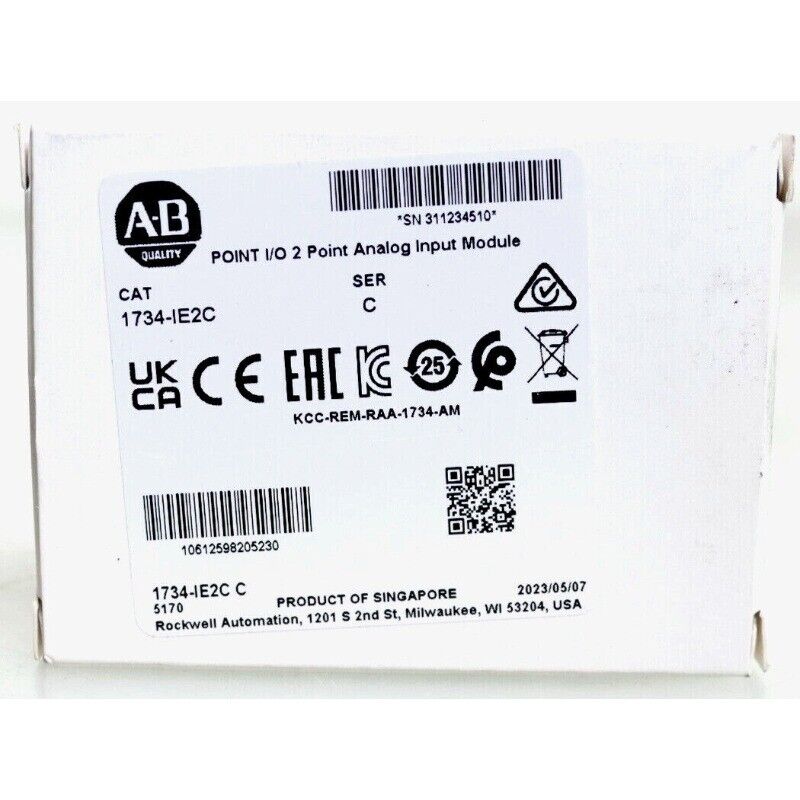

Allen-Bradley | 1734-IE2C | POINT I/O

Product Description: Allen-Bradley 1734-IE2C

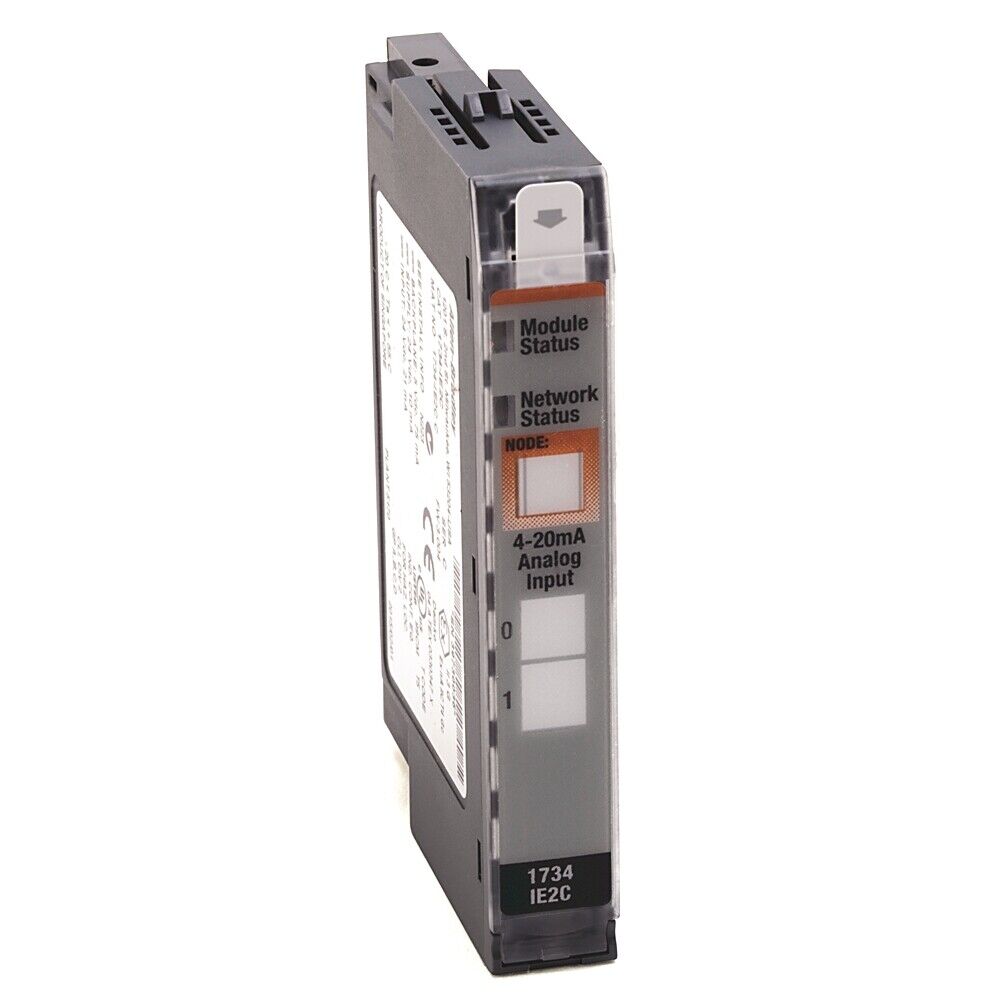

The Allen-Bradley 1734-IE2C is a 2-channel analog input module designed for the POINT I/O system. It accepts standard 4–20 mA current signals from industrial field devices such as transmitters and sensors, making it suitable for low-channel-count applications requiring precision analog monitoring. Its compact size and integrated diagnostics make it ideal for space-constrained and distributed I/O environments.

Key Features

• 2 analog input channels for 4–20 mA current signals
• 16-bit resolution for accurate signal processing
• Built-in diagnostics: under-range, over-range, open-circuit detection
• Internal 250 Ω input impedance—no external resistor needed
• Per-channel LED indicators for status and fault monitoring
• Compatible with POINT I/O bases and Logix controllers
• Designed for DIN rail mounting in modular systems

Technical Specifications

• Number of Inputs: 2
• Input Signal Range: 4–20 mA
• Input Type: Current (source-type devices)
• Resolution: 16 bits
• Accuracy: ±0.1% of full scale (typical)
• Input Impedance: 250 Ω
• Isolation Voltage: 50V (channel to system)
• Backplane Current Draw: 75 mA at 5V DC
• Operating Temperature: 0°C to 55°C
• Dimensions (HxWxD): approx. 75 x 12 x 55 mm
• Mounting: DIN rail with compatible terminal base (e.g., 1734-TB, 1734-TOP)

Application Areas

• Process control systems with limited analog inputs
• Monitoring of industrial transmitters (flow, level, pressure)
• Remote or distributed I/O installations
• Skid-mounted systems and OEM machinery
• Machine-level analog integration

Advantages

• Cost-effective solution for low-channel analog applications
• High precision in a compact form factor
• Simplifies wiring with integrated input resistance
• Built-in diagnostics enhance maintenance and troubleshooting
• Seamlessly integrates into POINT I/O and Logix control platforms
