Allen-Bradley | 1734-AENT | POINT I/O

Product Description: Allen-Bradley 1734-AENT

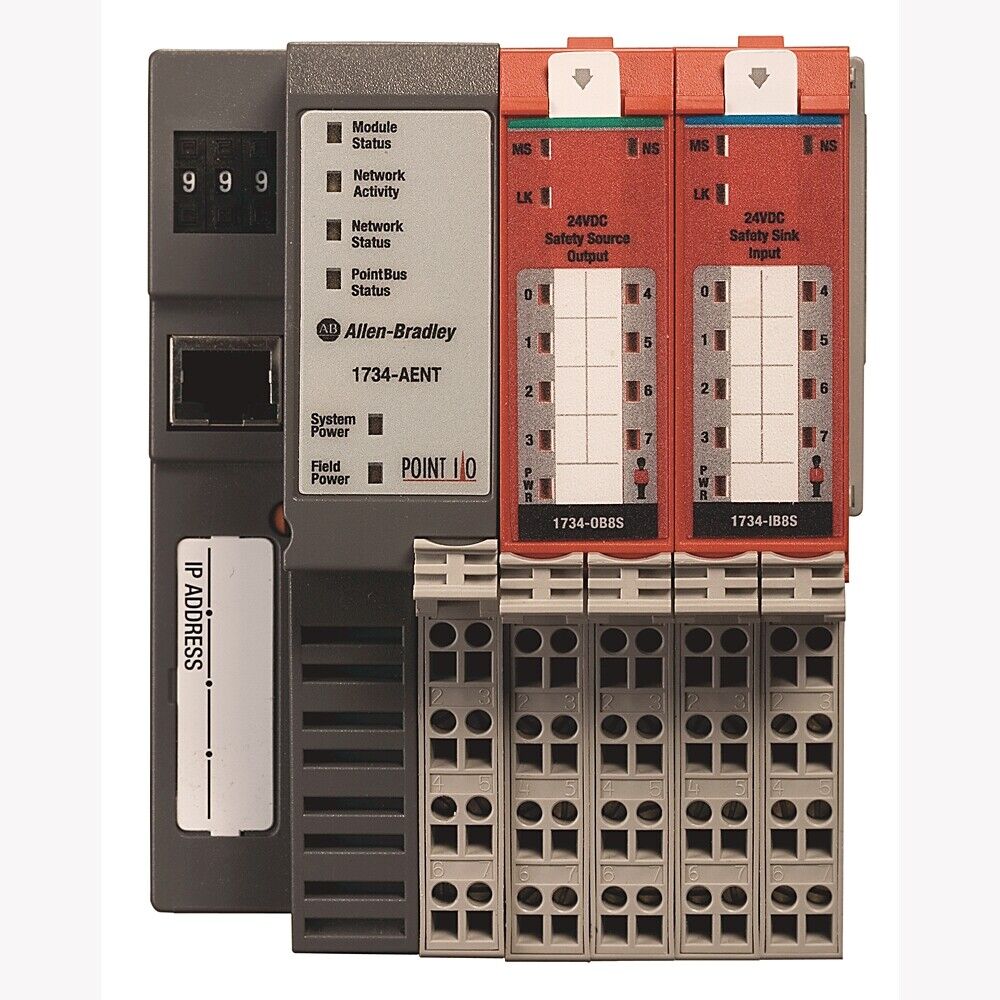

The Allen-Bradley 1734-AENT is a single-port EtherNet/IP adapter that enables POINT I/O modules to communicate over an EtherNet/IP network. It acts as the network interface between a POINT I/O assembly and a Logix-based controller, supporting real-time I/O data exchange and configuration. Designed for applications not requiring Device Level Ring (DLR), it offers a compact and cost-effective solution for standard Ethernet topologies.

Key Features

• Single 10/100 Mbps Ethernet port (RJ-45)
• Supports EtherNet/IP protocol for control and data exchange
• Connects up to 63 POINT I/O modules per adapter
• Status indicators for power, module health, and network activity
• Configurable via BOOTP/DHCP or static IP assignment
• Supports web-based diagnostics for remote access
• DIN rail mountable and hot- swappable

Technical Specifications

• Communication Protocol: EtherNet/IP
• Ethernet Ports: 1 (RJ-45, 10/100 Mbps)
• Max Connected I/O Modules: 63
• Backplane Current Draw: 400 mA at 5V DC
• Input Voltage Range: 19.2–28.8V DC (24V DC nominal)
• Isolation Voltage: 50V continuous (network to system)
• IP Configuration: Static or BOOTP/DHCP
• Operating Temperature: 0°C to 55°C
• Dimensions (HxWxD): approx. 75 x 25 x 55 mm
• Mounting: DIN rail

Application Areas

• Standard EtherNet/IP-based control systems
• Distributed I/O in process and discrete manufacturing
• Packaging machines, conveyor systems, and assembly lines
• Remote I/O panels integrated into Logix architectures
• OEM machinery and compact automation systems

Advantages

• Cost-effective solution for non-redundant Ethernet networks
• Compact form factor suitable for tight panel spaces
• Easy integration with Allen-Bradley Logix controllers
• Web diagnostics improve visibility and system uptime
• Simple setup and wiring with RJ-45 Ethernet interface
